XRP7740 Series
Manufacturer: MaxLinear, Inc.
Beta
⌘K
IC REG 5OUT BUCK/LNR SYNC 40TQFN
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | w/LED Driver | Frequency - Switching | Number of Outputs | Supplier Device Package | Package / Case | w/Sequencer | Voltage/Current - Output 2 | w/Supervisor | Topology | Voltage/Current - Output 1 | Voltage/Current - Output 3 | Operating Temperature [Max] | Operating Temperature [Min] | Board Type | Supplied Contents | Main Purpose | Regulator Topology | Contents | Utilized IC / Part | Outputs and Type | Outputs and Type | Voltage - Output [Min] | Voltage - Output [Max] | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

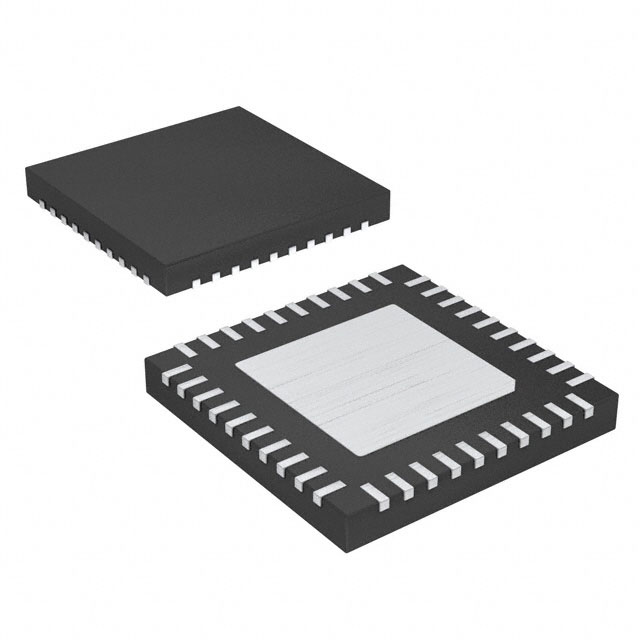

 MaxLinear, Inc. | 6.5 VDC | 20 V | Surface Mount | 1.5 MHz | 5 | 40-TQFN (6x6) | 40-WFQFN Exposed Pad | Controller | Linear (LDO) (1) Step-Down (Buck) Synchronous (4) | Controller | Controller | 125 °C | -40 C | |||||||||||||||
MaxLinear, Inc. | 6.5 VDC | 20 V | Surface Mount | 1.5 MHz | 5 | 40-TQFN (6x6) | 40-WFQFN Exposed Pad | Controller | Linear (LDO) (1) Step-Down (Buck) Synchronous (4) | Controller | Controller | 125 °C | -40 C | |||||||||||||||
 MaxLinear, Inc. | Fully Populated | Board(s) | DC/DC Step Down | Buck | Board(s) | XRP7740 | ||||||||||||||||||||||

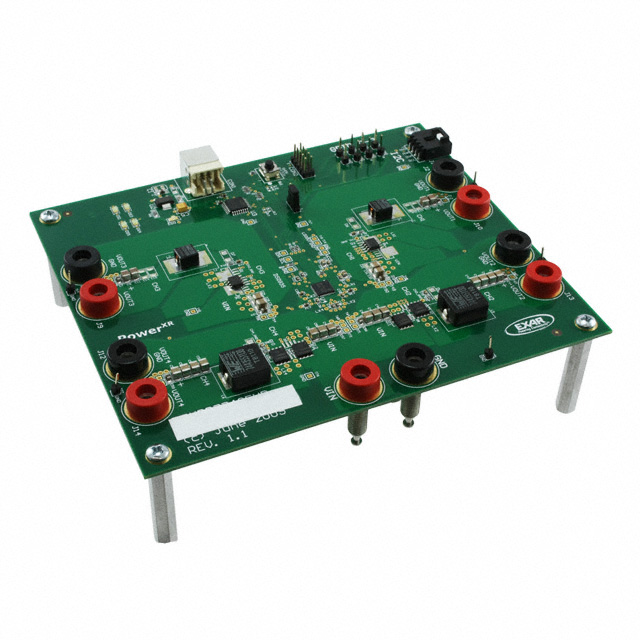

 MaxLinear, Inc. | 1.5 MHz | Fully Populated | Board(s) | DC/DC Step Up or Down with LDO | Buck | Board(s) | XRP7740 | 4 Non-Isolated Outputs Non-Isolated | 4 | 0.9 V | 5.1 V | 6.5 V | 20 V | |||||||||||||||
 MaxLinear, Inc. | 6.5 VDC | 20 V | Surface Mount | 1.5 MHz | 5 | 40-TQFN (6x6) | 40-WFQFN Exposed Pad | Controller | Linear (LDO) (1) Step-Down (Buck) Synchronous (4) | Controller | Controller | 125 °C | -40 C |
