33 Series

Catalog

TOROIDAL INDUCTOR, VERTICAL, 3300 SERIES, 150 µH, 2 A, 0.084 OHM, ± 15%

Part	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Tolerance	Type	Shielding	Inductance Frequency - Test	Package / Case	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR) [Max]	DC Resistance (DCR)	Q @ Freq	Q @ Freq [custom]	Q @ Freq [custom]
Murata Electronics 33151C	7.2 MHz	125 °C	-40 C	31 mm	1.22 "	Through Hole	15 %	Toroidal	Unshielded	800 kHz	Radial Vertical 4 Leads (Open)	2 A	29 mm	1.142 in	0.642 "	16.3 mm	150 µH	800 kHz	3.8	84 mOhm
Murata Electronics 33101C		125 °C	-40 C	31 mm	1.22 "	Through Hole	15 %	Toroidal	Unshielded	800 kHz	Radial Vertical 4 Leads (Open)	2.4 A	29 mm	1.142 in	0.642 "	16.3 mm	100 µH				70 mOhm	3.9 800 kHz
Murata Electronics 33220C	37 MHz	125 °C	-40 C	31 mm	1.22 "	Through Hole	15 %	Toroidal	Unshielded	1 MHz	Radial Vertical 4 Leads (Open)	5.1 A	29 mm	1.142 in	0.642 "	16.3 mm	22 µH				33 mOhm		1 MHz	3.4
Murata Electronics 33331C	1.9 MHz	125 °C	-40 C	31 mm	1.22 "	Through Hole	15 %	Toroidal	Unshielded	800 kHz	Radial Vertical 4 Leads (Open)	1.3 A	29 mm	1.142 in	0.642 "	16.3 mm	330 µH			126 mOhm		3.4 800 kHz
Murata Electronics 33471C	1.4 MHz	125 °C	-40 C	31 mm	1.22 "	Through Hole	15 %	Toroidal	Unshielded	800 kHz	Radial Vertical 4 Leads (Open)	1.1 A	29 mm	1.142 in	0.642 "	16.3 mm	470 µH			152 mOhm		2.6 800 kHz
Murata Electronics 33330C	24 MHz	125 °C	-40 C	31 mm	1.22 "	Through Hole	15 %	Toroidal	Unshielded	1 MHz	Radial Vertical 4 Leads (Open)	4.2 A	29 mm	1.142 in	0.642 "	16.3 mm	33 µH				40 mOhm	1 MHz 3.5
Murata Electronics 33681C	900 kHz	125 °C	-40 C	31 mm	1.22 "	Through Hole	15 %	Toroidal	Unshielded	800 kHz	Radial Vertical 4 Leads (Open)	920 mA	29 mm	1.142 in	0.642 "	16.3 mm	680 µH			183 mOhm		0.64 800 kHz

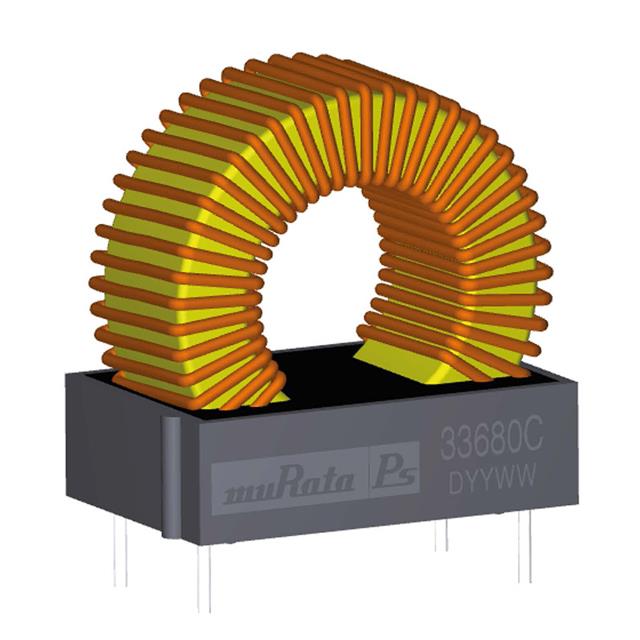

Murata Electronics 33100C	68 MHz	125 °C	-40 C	31 mm	1.22 "	Through Hole	15 %	Toroidal	Unshielded	1 MHz	Radial Vertical 4 Leads (Open)	7.6 A	29 mm	1.142 in	0.642 "	16.3 mm	10 µH			20 mOhm			1 MHz	3.4
Murata Electronics 33221C	2 MHz	125 °C	-40 C	31 mm	1.22 "	Through Hole	15 %	Toroidal	Unshielded	800 kHz	Radial Vertical 4 Leads (Open)	1.6 A	29 mm	1.142 in	0.642 "	16.3 mm	220 µH				102 mOhm	3.2 800 kHz
Murata Electronics 33680C	16 MHz	125 °C	-40 C	31 mm	1.22 "	Through Hole	15 %	Toroidal	Unshielded	1 MHz	Radial Vertical 4 Leads (Open)	2.9 A	29 mm	1.142 in	0.642 "	16.3 mm	68 µH			57 mOhm		1 MHz 3.5
