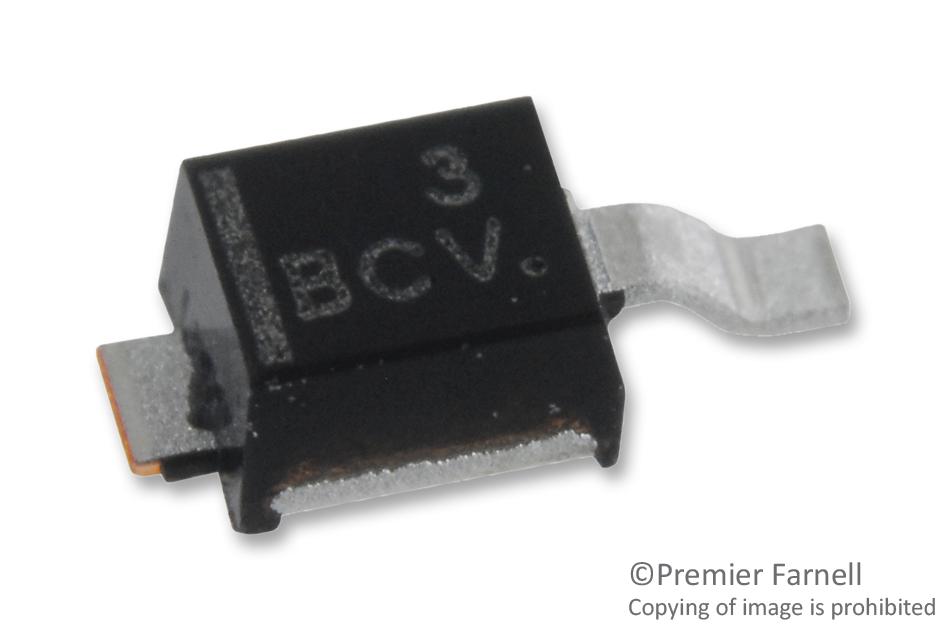

MBRM120E Series

1.0 A, 20 V, Schottky Power Rectifier, Surface Mount

Catalog

1.0 A, 20 V, Schottky Power Rectifier, Surface Mount

Part	Current - Average Rectified (Io)	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package
ON Semiconductor MBRM120ET1	1 A	200 mA 500 ns	20 V	DO-216AA	Schottky	150 °C	-65 C	10 µA	Surface Mount	530 mV	Powermite
ON Semiconductor MBRM120ET3G	1 A	200 mA 500 ns	20 V	DO-216AA	Schottky	150 °C	-65 C	10 µA	Surface Mount	530 mV	Powermite
ON Semiconductor MBRM120LT3	1 A	200 mA 500 ns	20 V	DO-216AA	Schottky			400 µA	Surface Mount	450 mV	Powermite
ON Semiconductor MBRM120ET3	1 A	200 mA 500 ns	20 V	DO-216AA	Schottky	150 °C	-65 C	10 µA	Surface Mount	530 mV	Powermite
ON Semiconductor MBRM120LT3G	1 A	200 mA 500 ns	20 V	DO-216AA	Schottky	125 °C	-55 °C	400 µA	Surface Mount	450 mV	Powermite
ON Semiconductor MBRM120LT3H	1 A	200 mA 500 ns	20 V	DO-216AA	Schottky	150 °C	-55 °C	40 µA	Surface Mount	450 mV	Powermite

Catalog

1.0 A, 20 V, Schottky Power Rectifier, Surface Mount

Key Features

• Low Profile - Maximum Height of 1.1 mm

• Small Footprint - Footprint Area of 8.45 mm2

• Low VFProvides Higher Efficiency and Extends Battery Life

• Supplied in 12 mm Tape and Reel

• Low Thermal Resistance with Direct Thermal Path of Die on Exposed Cathode Heat SinkMechanical Characteristics:

• Powermite is JEDEC Registered as DO-216AA

• Case: Molded Epoxy

• Powermite is JEDEC Registered as DO-216AA

• Weight: 62 mg (approximately)

• Device Marking: BCF

• Lead and Mounting Surface Temperature for Soldering Purposes. 260°C Maximum for 10 Seconds

• All Packages are Pb-Free

• AEC-Q101 Qualified and PPAP Capable

• NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

Description

The Schottky Powermite employs the Schottky Barrier principle with a barrier metal and epitaxial construction that produces optimal forward voltage drop-reverse current tradeoff. The advanced packaging techniques provide for a highly efficient micro miniature, space saving surface mount Rectifier. With its unique heatsink design, the Powermite has the same thermal performance as the SMA while being 50% smaller in footprint area, and delivering one of the lowest height profiles, < 1.1 mm in the industry. Because of its small size, it is ideal for use in portable and battery powered products such as cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards. Typical applications are ac/dc and dc-dc converters, reverse battery protection, and "Oring" of multiple supply voltages and any other application where performance and size are critical.
