BD9E301 Series

Catalog

IC REG BUCK ADJ 2.5A 8HTSOP-J

Part	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Supplier Device Package	Output Configuration	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Output Type	Mounting Type	Current - Output	Number of Outputs	Frequency - Switching	Function	Voltage - Input (Min) [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Contents	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Main Purpose	Regulator Topology
Rohm Semiconductor BD9E301EFJ-LBH2	1 V	25.2 V	8-HTSOP-J	Positive	36 V	-40 °C	150 °C	Buck	Adjustable	Surface Mount	2.5 A	1	570 kHz	Step-Down	7 V	8-SOIC Exposed Pad	3.9 mm	0.154 in
Rohm Semiconductor BD9E301EFJ-LBE2	1 V	25.2 V	8-HTSOP-J	Positive	36 V	-40 °C	150 °C	Buck	Adjustable	Surface Mount	2.5 A	1	570 kHz	Step-Down	7 V	8-SOIC Exposed Pad	3.9 mm	0.154 in

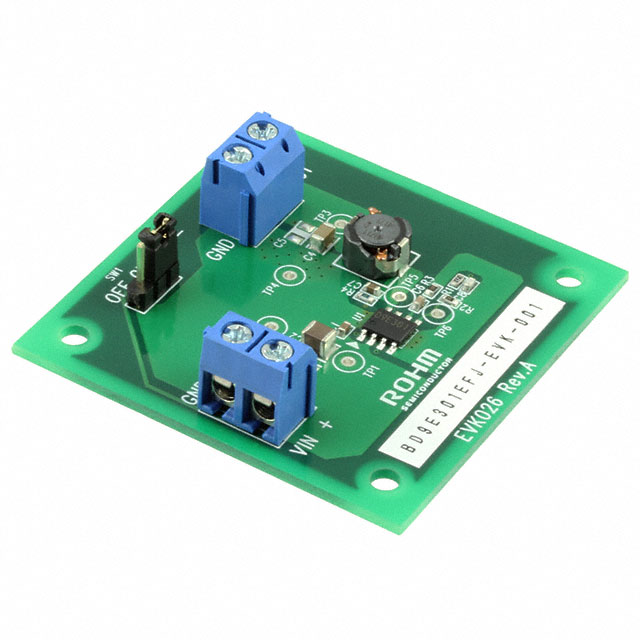

Rohm Semiconductor BD9E301EFJ-EVK-001											2.5 A		570 kHz						Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	BD9E301	36 V	7.2 V	5 V	DC/DC Step Down	Buck
