87965 Series

Catalog

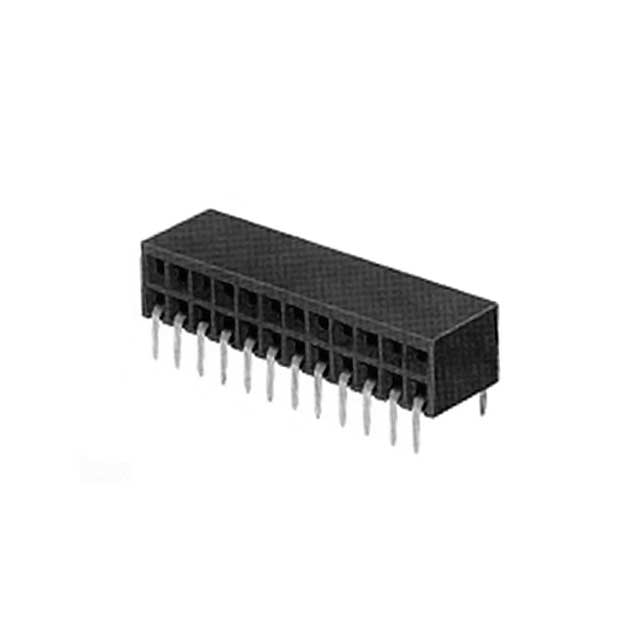

CONN RCPT 24POS 0.1 GOLD PCB R/A

Part	Contact Finish - Mating	Fastening Type	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Number of Rows	Connector Type	Insulation Color	Termination	Contact Shape	Contact Type	Mounting Type	Pitch - Mating	Pitch - Mating
TE Connectivity Aerospace, Defense and Marine 1-87965-1	Gold	Push-Pull	6.05 mm	0.238 in	All	0.145 in	3.68 mm	Phosphor Bronze	1.27 µm	50 µin	Board to Board Cable	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in	24	2	Receptacle	Natural	Solder	Square	Female Socket	Through Hole Right Angle	0.1 in	2.54 mm
