EPG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 10POS GOLD SLDR

Part	Material Flammability Rating	Mounting Type	Features	Termination	Shell Finish	Shielding	Contact Finish - Mating	Fastening Type	Orientation [custom]	Ingress Protection	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Connector Type	Shell Material	Shell Size - Insert	Insert Material	Number of Positions	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]
LEMO EPG.1B.310.HLNS	UL94 V-0	Right Angle Through Hole	Board Lock	Solder	Nickel	Shielded	Gold	Push-Pull	G	IP50 - Dust Protected	Metal	1.5 Ám	59 Áin	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	310	Polyetheretherketone (PEEK)	10	Bronze	1.5 A	-55 C	250 °C
LEMO EPG.1B.308.HLNS	UL94 V-0	Right Angle Through Hole	Board Lock	Solder	Nickel	Shielded	Gold	Push-Pull	G	IP50 - Dust Protected	Metal	1.5 Ám	59 Áin	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	308	Polyetheretherketone (PEEK)	8	Bronze	2 A	-55 C	250 °C

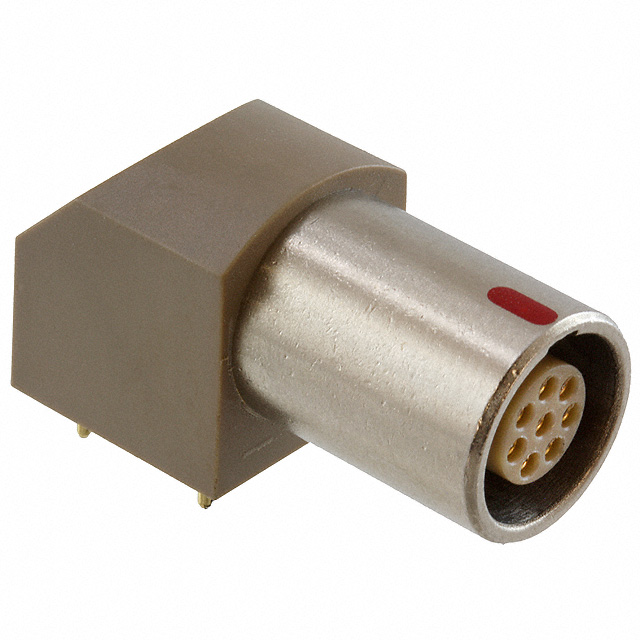

LEMO EPG.1B.308.HLN	UL94 V-0	Right Angle Through Hole	Ground	Solder	Nickel	Shielded	Gold	Push-Pull	G	IP50 - Dust Protected	Metal	1.5 Ám	59 Áin	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	308	Polyetheretherketone (PEEK)	8	Bronze	2 A	-55 C	250 °C
LEMO EPG.1B.306.HLNS	UL94 V-0	Right Angle Through Hole	Board Lock	Solder	Nickel	Shielded	Gold	Push-Pull	G	IP50 - Dust Protected	Metal	1.5 Ám	59 Áin	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	306	Polyetheretherketone (PEEK)	6	Bronze	4.5 A	-55 C	250 °C

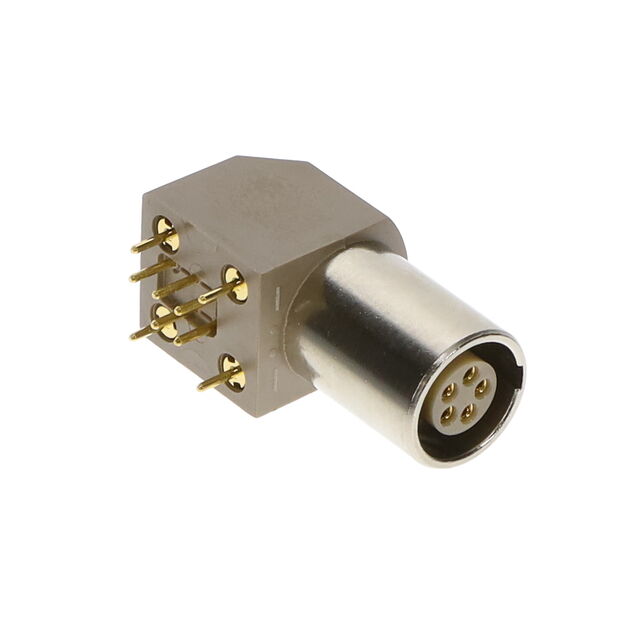

LEMO EPG.1B.305.HLN	UL94 V-0	Right Angle Through Hole	Ground	Solder	Nickel	Shielded	Gold	Push-Pull	G	IP50 - Dust Protected	Metal	1.5 Ám	59 Áin	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	305	Polyetheretherketone (PEEK)	5	Bronze	4.5 A	-55 C	250 °C
LEMO EPG.1B.302.HLN	UL94 V-0	Right Angle Through Hole	Ground	Solder	Nickel	Shielded	Gold	Push-Pull	G	IP50 - Dust Protected	Metal	1.5 Ám	59 Áin	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	302	Polyetheretherketone (PEEK)	2	Bronze	4.5 A	-55 C	250 °C

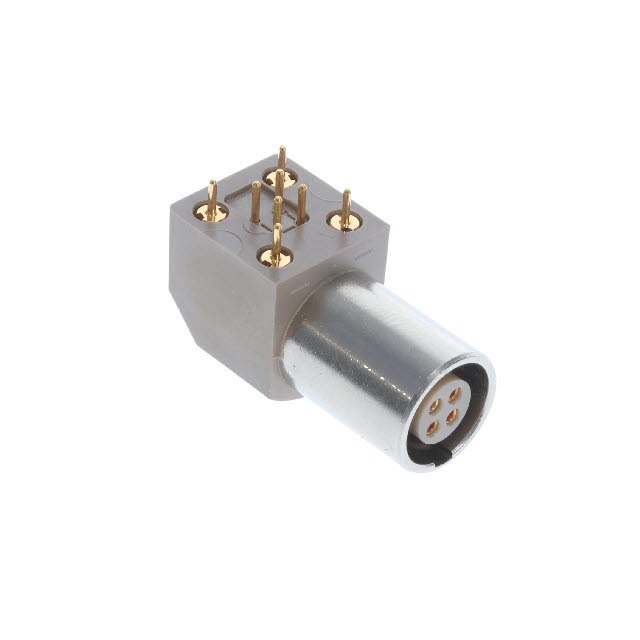

LEMO EPG.1B.304.HLN	UL94 V-0	Right Angle Through Hole	Ground	Solder	Nickel	Shielded	Gold	Push-Pull	G	IP50 - Dust Protected	Metal	1.5 Ám	59 Áin	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	304	Polyetheretherketone (PEEK)	4	Bronze	4.5 A	-55 C	250 °C
