WM092 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 9.5"L X 6.34"W

Part	Weight [custom]	Weight [custom]	Height [z]	Height [z]	Container Type	Size / Dimension	Size / Dimension	Features	Color	Ratings	Design	Area (L x W)	Area (L x W)	Material Flammability Rating	Material	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]

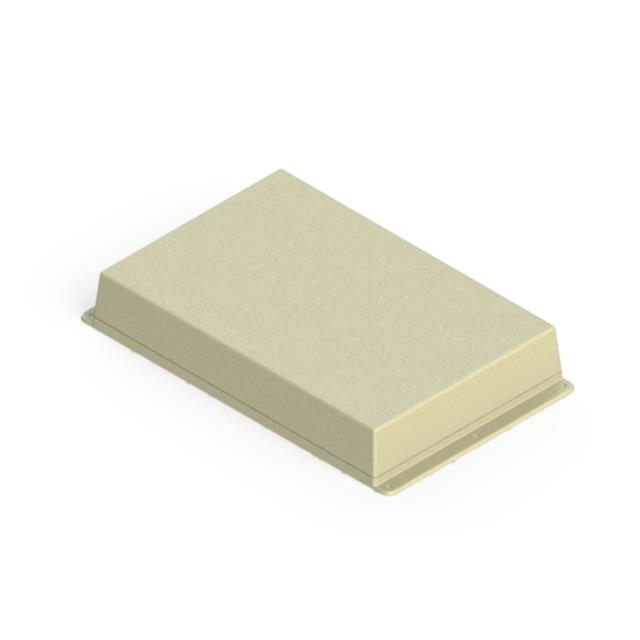

Serpac WM092,AL	0.574 lb	260.36 g	1.6 "	40.64 mm	Box	6.34 in 9.5 in	161.04 mm 241.3 mm	Mounting Flange PCB Supports Wall Mount	Almond	IP40 NEMA 1	Cover Included	60.2 in²	388 cm²	UL94 HB	ABS Plastic	2.54 mm	0.1 in

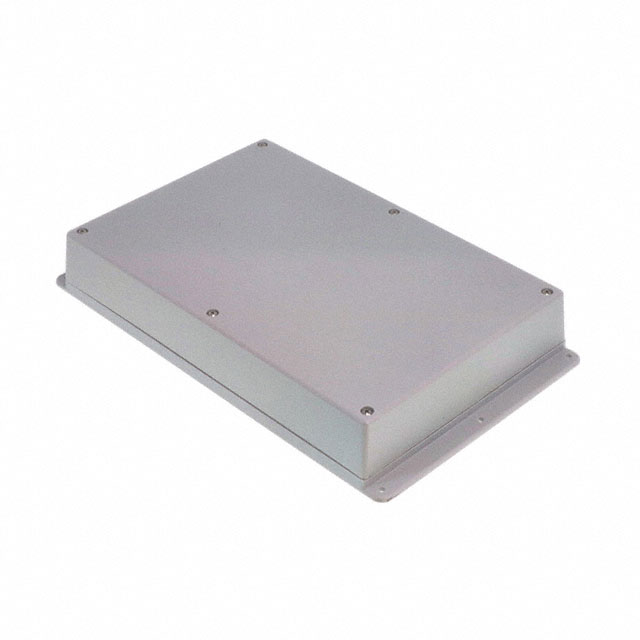

Serpac WM092R,GY	0.574 lb	260.36 g	1.6 "	40.64 mm	Box	6.34 in 9.5 in	161.04 mm 241.3 mm	Front Access Mounting Flange PCB Supports Wall Mount	Gray	IP40 NEMA 1	Cover Included	60.2 in²	388 cm²	UL94 HB	ABS Plastic	2.54 mm	0.1 in	60.2 in˛	388 cm˛

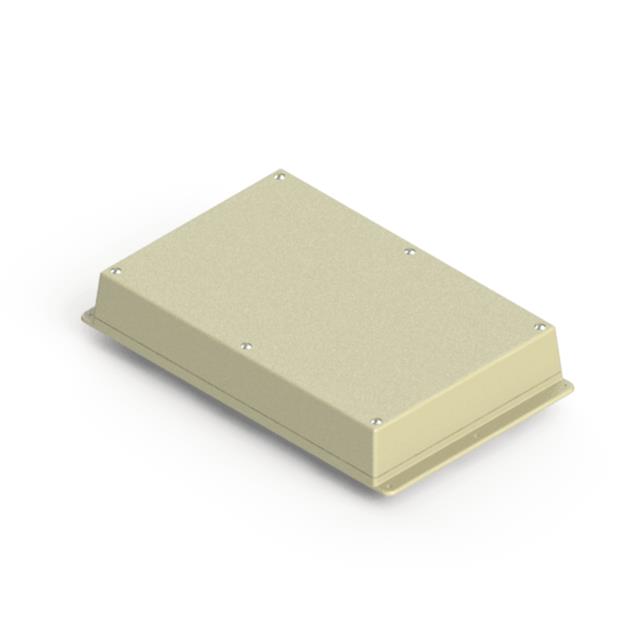

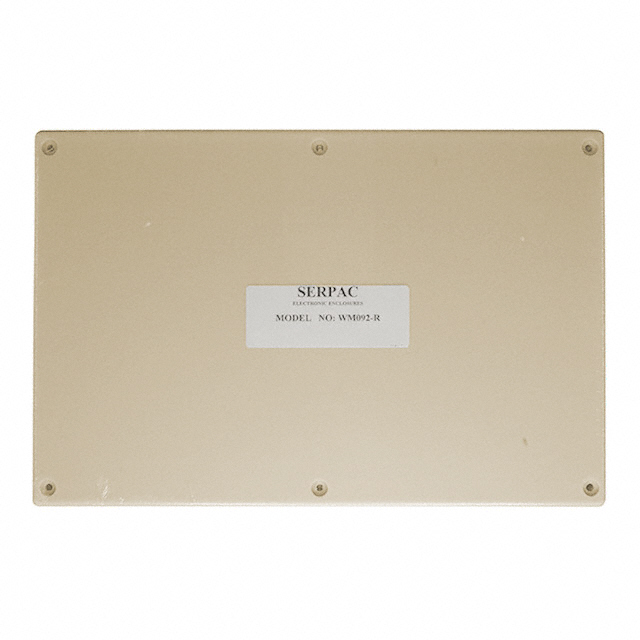

Serpac WM092R,AL	0.574 lb	260.36 g	1.6 "	40.64 mm	Box	6.34 in 9.5 in	161.04 mm 241.3 mm	Front Access Mounting Flange PCB Supports Wall Mount	Almond	IP40 NEMA 1	Cover Included	60.2 in²	388 cm²	UL94 HB	ABS Plastic	2.54 mm	0.1 in

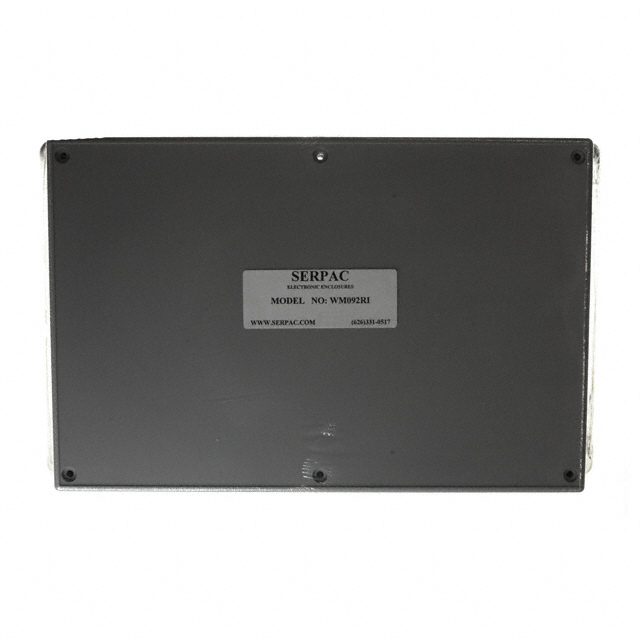

Serpac WM092RI,GY	0.574 lb	260.36 g	1.6 "	40.64 mm	Box	6.34 in 9.5 in	161.04 mm 241.3 mm	Front Access Mounting Flange PCB Supports Wall Mount	Gray	IP40 NEMA 1	Cover Included	60.2 in²	388 cm²	UL94 HB	ABS Plastic	2.54 mm	0.1 in

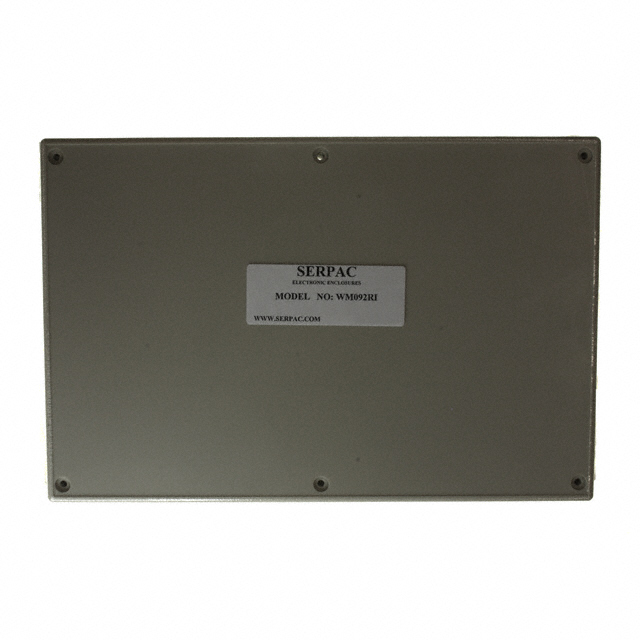

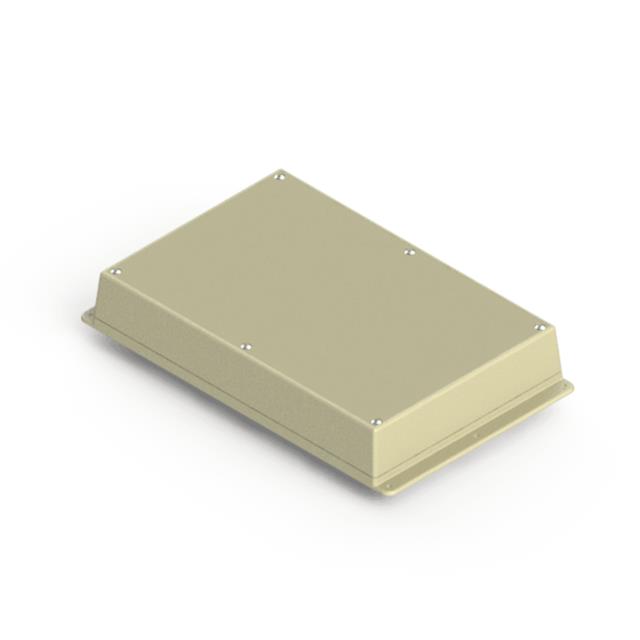

Serpac WM092RI,AL	0.574 lb	260.36 g	1.6 "	40.64 mm	Box	6.34 in 9.5 in	161.04 mm 241.3 mm	Front Access Mounting Flange PCB Supports Wall Mount	Almond	IP40 NEMA 1	Cover Included	60.2 in²	388 cm²	UL94 HB	ABS Plastic	2.54 mm	0.1 in

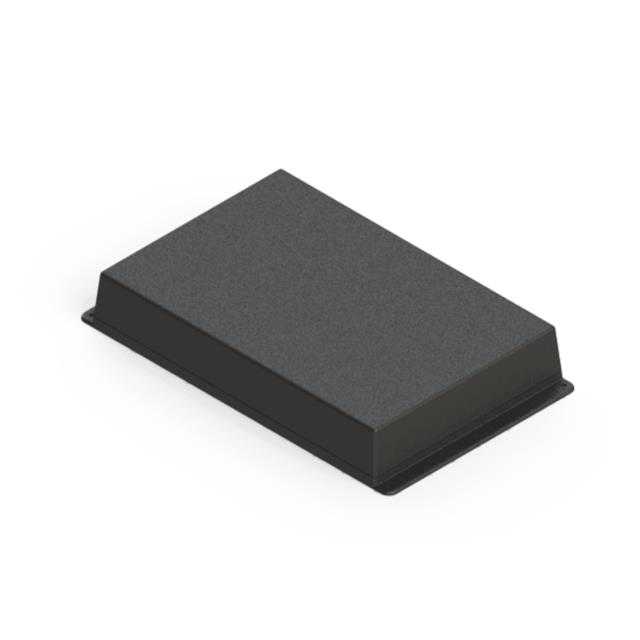

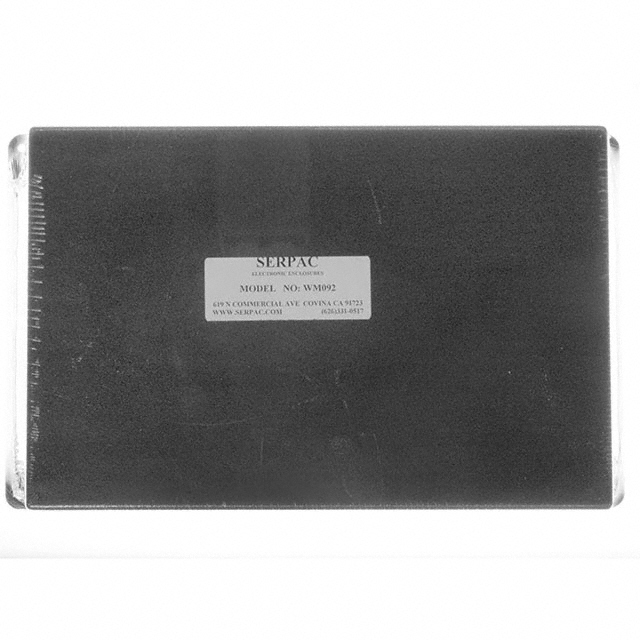

Serpac WM092,BK	0.574 lb	260.36 g	1.6 "	40.64 mm	Box	6.34 in 9.5 in	161.04 mm 241.3 mm	Mounting Flange PCB Supports Wall Mount	Black	IP40 NEMA 1	Cover Included	60.2 in²	388 cm²	UL94 HB	ABS Plastic	2.54 mm	0.1 in

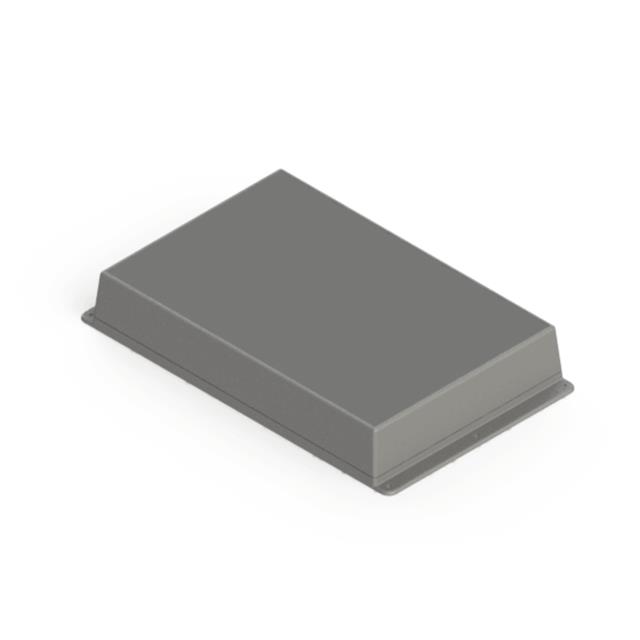

Serpac WM092I,GY	0.574 lb	260.36 g	1.6 "	40.64 mm	Box	6.34 in 9.5 in	161.04 mm 241.3 mm	Mounting Flange PCB Supports Wall Mount	Gray	IP40 NEMA 1	Cover Included	60.2 in²	388 cm²	UL94 HB	ABS Plastic	2.54 mm	0.1 in

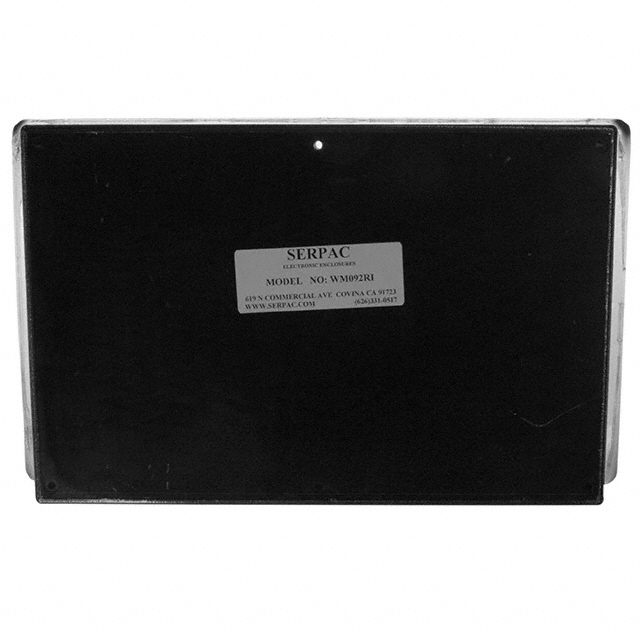

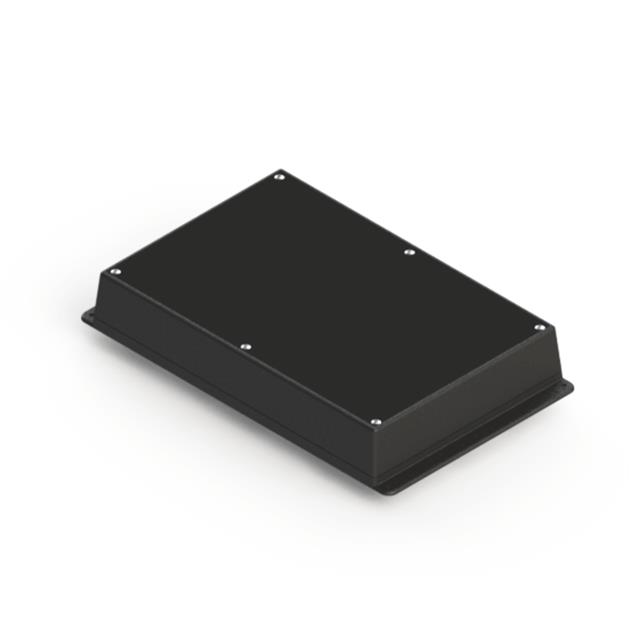

Serpac WM092RI,BK	0.574 lb	260.36 g	1.6 "	40.64 mm	Box	6.34 in 9.5 in	161.04 mm 241.3 mm	Front Access Mounting Flange PCB Supports Wall Mount	Black	IP40 NEMA 1	Cover Included	60.2 in²	388 cm²	UL94 HB	ABS Plastic	2.54 mm	0.1 in
Serpac WM092R,BK	0.574 lb	260.36 g	1.6 "	40.64 mm	Box	6.34 in 9.5 in	161.04 mm 241.3 mm	Front Access Mounting Flange PCB Supports Wall Mount	Black	IP40 NEMA 1	Cover Included	60.2 in²	388 cm²	UL94 HB	ABS Plastic	2.54 mm	0.1 in

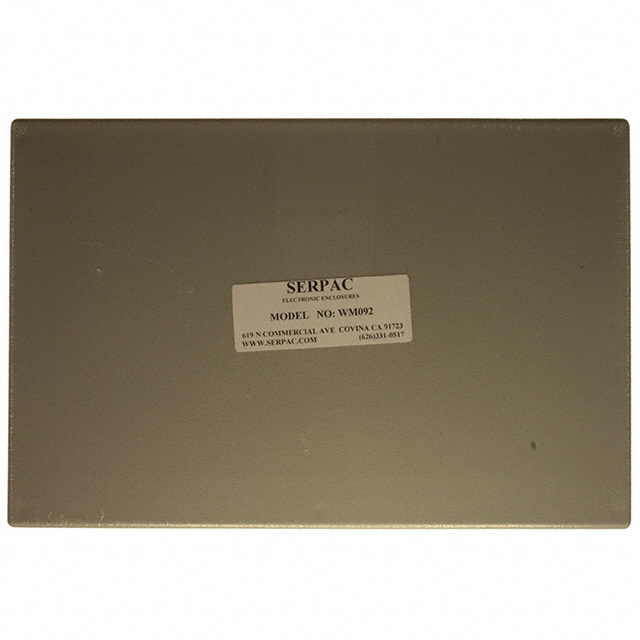

Serpac WM092,GY	0.574 lb	260.36 g	1.6 "	40.64 mm	Box	6.34 in 9.5 in	161.04 mm 241.3 mm	Mounting Flange PCB Supports Wall Mount	Gray	IP40 NEMA 1	Cover Included	60.2 in²	388 cm²	UL94 HB	ABS Plastic	2.54 mm	0.1 in
