25SH-C Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 9POS 2.5MM

Part	Contact Length - Post	Contact Length - Post	Number of Positions	Current Rating (Amps)	Voltage Rating	Insulation Material	Number of Rows	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Shape	Termination	Style	Mounting Type	Material Flammability Rating	Connector Type	Shrouding	Insulation Height	Insulation Height	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Color	Fastening Type	Insulation Height [custom]	Insulation Height [custom]

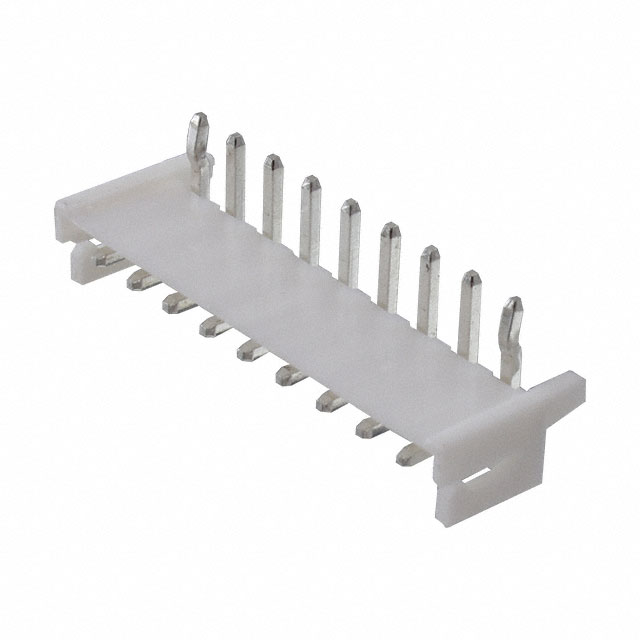

Adam Tech 25SH-C-09-TR	0.13 "	3.3 mm	9	3 A	250 VAC	Nylon 6/6 Polyamide (PA66)	1	Tin	2.5 mm	0.098 in	All	Square	Kinked Pin Solder	Board to Cable/Wire	Right Angle Through Hole	UL94 V-0	Header	Shrouded - 4 Wall	0.165 in	4.2 mm	Male Pin	85 °C	-25 °C	Brass	White	Friction Lock

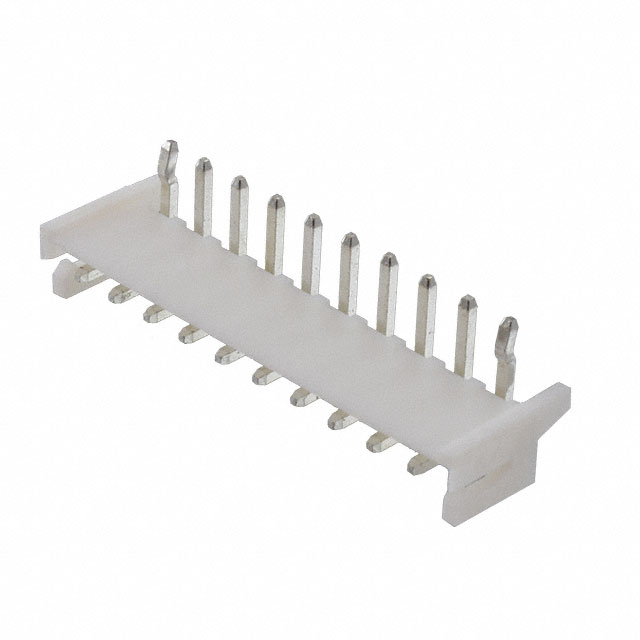

Adam Tech 25SH-C-10-TR	0.13 "	3.3 mm	10	3 A	250 VAC	Nylon 6/6 Polyamide (PA66)	1	Tin	2.5 mm	0.098 in	All	Square	Kinked Pin Solder	Board to Cable/Wire	Right Angle Through Hole	UL94 V-0	Header	Shrouded - 4 Wall	0.165 in	4.2 mm	Male Pin	85 °C	-25 °C	Brass	White	Friction Lock

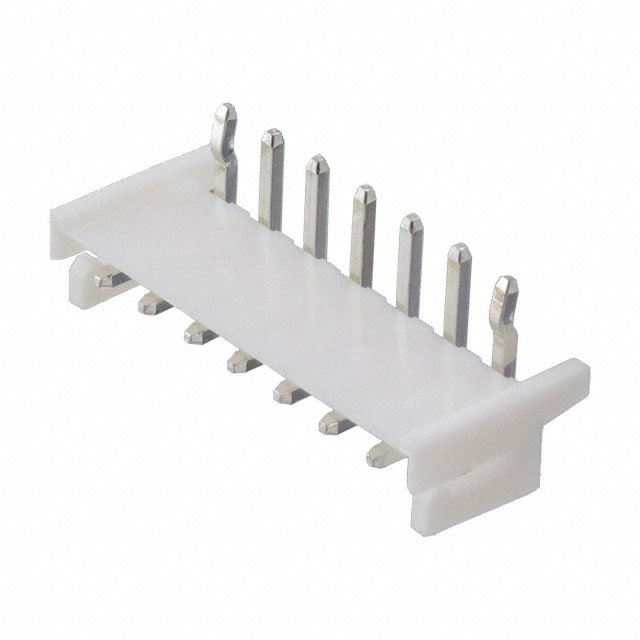

Adam Tech 25SH-C-07-TR	0.13 "	3.3 mm	7	3 A	250 VAC	Nylon 6/6 Polyamide (PA66)	1	Tin	2.5 mm	0.098 in	All	Square	Kinked Pin Solder	Board to Cable/Wire	Right Angle Through Hole	UL94 V-0	Header	Shrouded - 4 Wall	0.165 in	4.2 mm	Male Pin	85 °C	-25 °C	Brass	White	Friction Lock

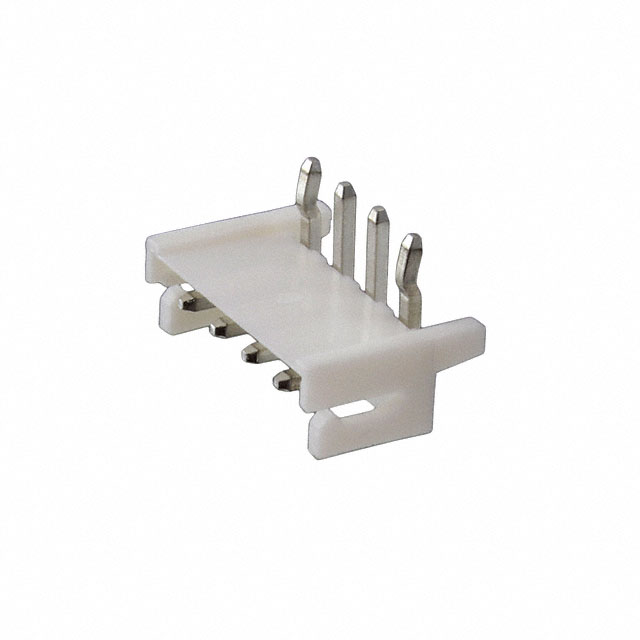

Adam Tech 25SH-C-04-TR	0.13 "	3.3 mm	4	3 A	250 VAC	Nylon 6/6 Polyamide (PA66)	1	Tin	2.5 mm	0.098 in	All	Square	Kinked Pin Solder	Board to Cable/Wire	Right Angle Through Hole	UL94 V-0	Header	Shrouded - 4 Wall	0.165 in	4.2 mm	Male Pin	85 °C	-25 °C	Brass	White	Friction Lock

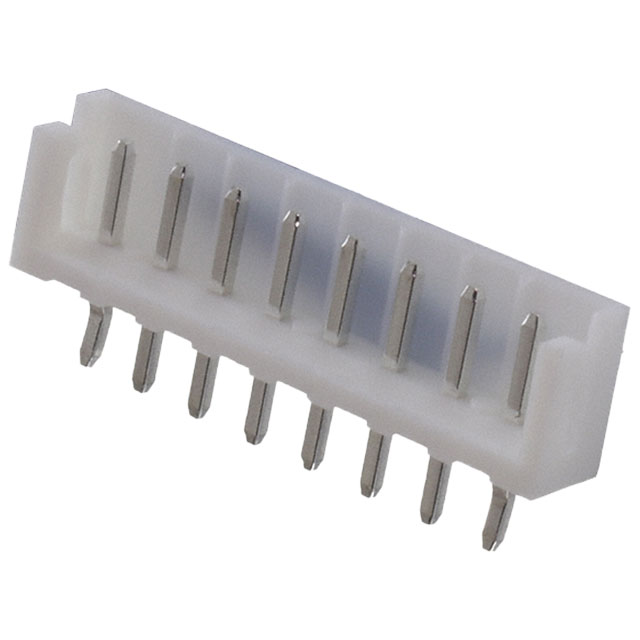

Adam Tech 25SH-C-08-TS	0.13 "	3.3 mm	8	3 A	250 VAC	Nylon Polyamide (PA)	1	Tin	2.5 mm	0.098 in	All	Square	Kinked Pin Solder	Board to Cable/Wire	Through Hole	UL94 V-0	Header	Shrouded - 3 Wall			Male Pin	85 °C	-25 °C	Brass	Natural	Friction Lock	0.236 "	6 mm

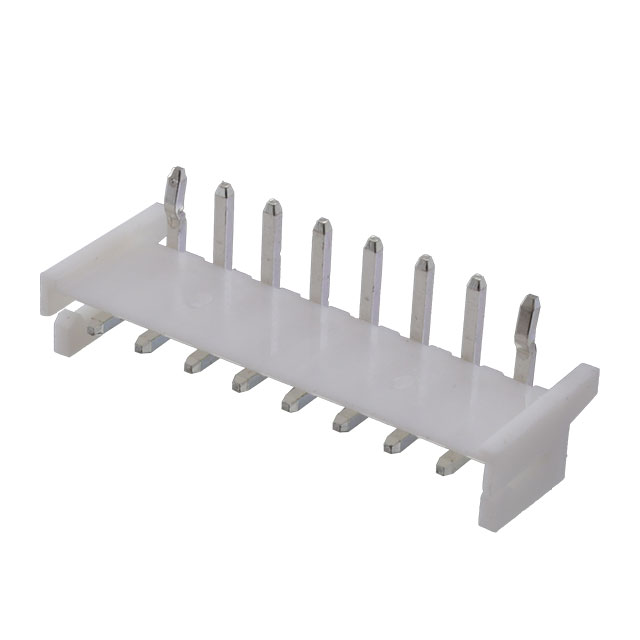

Adam Tech 25SH-C-08-TR	0.13 "	3.3 mm	8	3 A	250 VAC	Nylon 6/6 Polyamide (PA66)	1	Tin	2.5 mm	0.098 in	All	Square	Kinked Pin Solder	Board to Cable/Wire	Right Angle Through Hole	UL94 V-0	Header	Shrouded - 4 Wall	0.165 in	4.2 mm	Male Pin	85 °C	-25 °C	Brass	White	Friction Lock

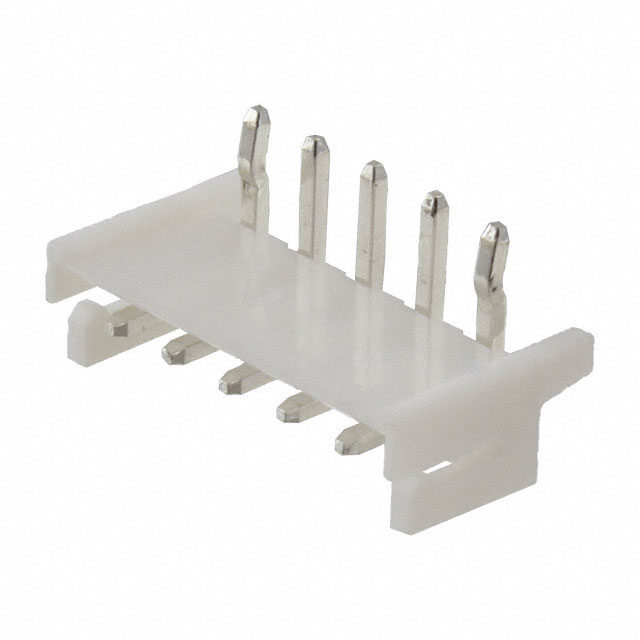

Adam Tech 25SH-C-05-TR	0.13 "	3.3 mm	5	3 A	250 VAC	Nylon 6/6 Polyamide (PA66)	1	Tin	2.5 mm	0.098 in	All	Square	Kinked Pin Solder	Board to Cable/Wire	Right Angle Through Hole	UL94 V-0	Header	Shrouded - 4 Wall	0.165 in	4.2 mm	Male Pin	85 °C	-25 °C	Brass	White	Friction Lock

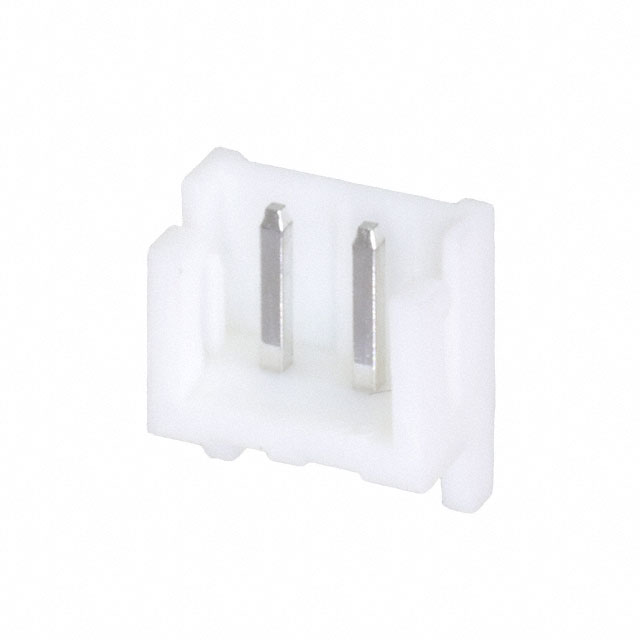

Adam Tech 25SH-C-02-TR	0.13 "	3.3 mm	2	3 A	250 VAC	Nylon 6/6 Polyamide (PA66)	1	Tin	2.5 mm	0.098 in	All	Square	Kinked Pin Solder	Board to Cable/Wire	Right Angle Through Hole	UL94 V-0	Header	Shrouded - 4 Wall	0.165 in	4.2 mm	Male Pin	85 °C	-25 °C	Brass	White	Friction Lock

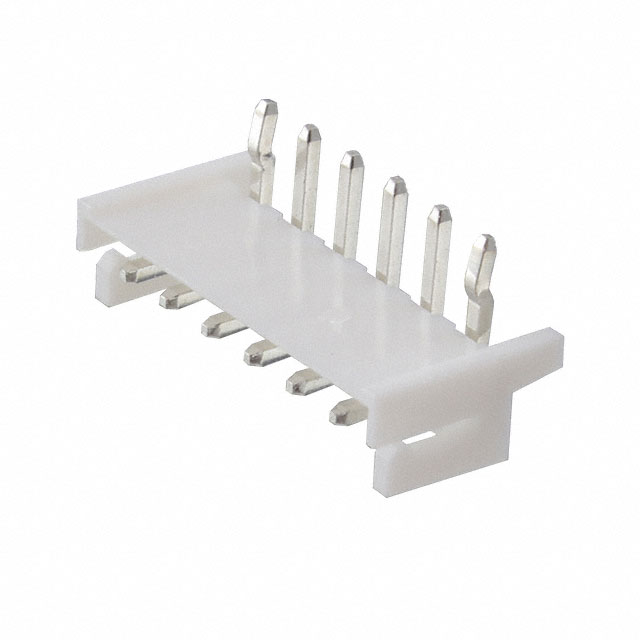

Adam Tech 25SH-C-06-TR	0.13 "	3.3 mm	6	3 A	250 VAC	Nylon 6/6 Polyamide (PA66)	1	Tin	2.5 mm	0.098 in	All	Square	Kinked Pin Solder	Board to Cable/Wire	Right Angle Through Hole	UL94 V-0	Header	Shrouded - 4 Wall	0.165 in	4.2 mm	Male Pin	85 °C	-25 °C	Brass	White	Friction Lock

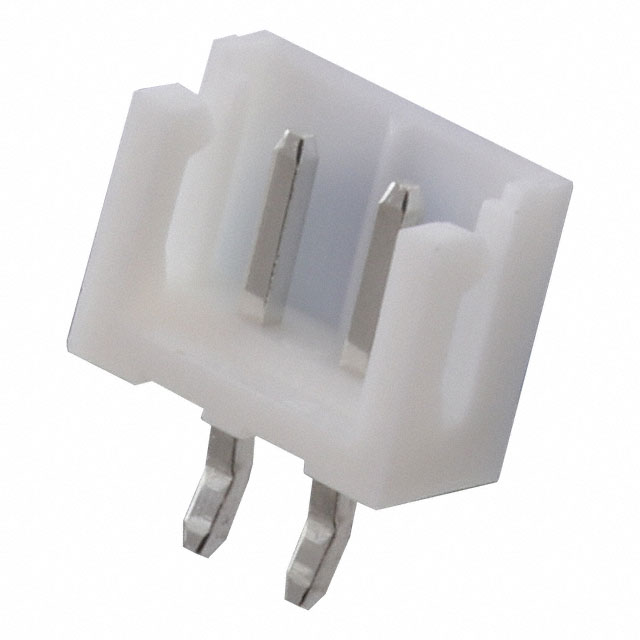

Adam Tech 25SH-C-02-TS	0.13 "	3.3 mm	2	3 A	250 VAC	Nylon Polyamide (PA)	1	Tin	2.5 mm	0.098 in	All	Square	Kinked Pin Solder	Board to Cable/Wire	Through Hole	UL94 V-0	Header	Shrouded - 3 Wall			Male Pin	85 °C	-25 °C	Brass	Natural	Friction Lock	0.236 "	6 mm
