5820 Series

Manufacturer: BRADY

Catalog

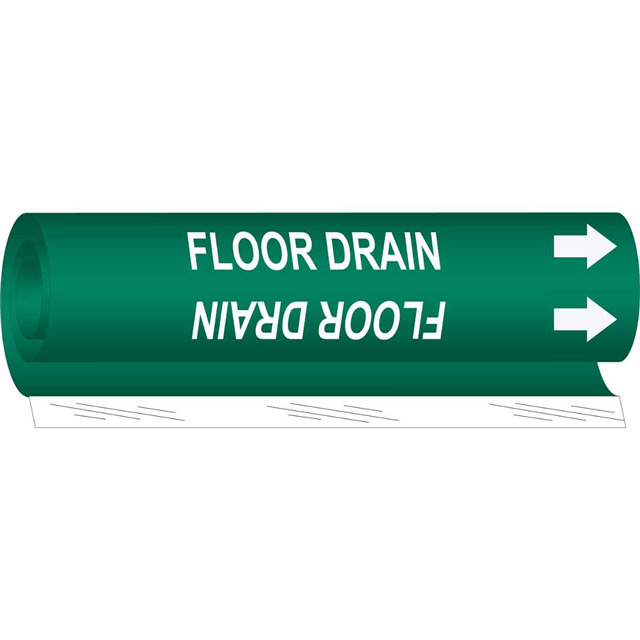

B689 5820-I WHT/GRN STYLE I

Part	Print Type	Color - Background	Language	Application Specifics	Mounting Type	Applications	Color - Legend	Legend (Text)	Legend (Symbol Only)	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Material - Body	Location	Width	Width	Arrangement	Features	Length	Length	Shape	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Width [x]	Width [x]	Outside Pipe Diameter (Min) [Min]	Length [x]	Length [x]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]
BRADY 5820-I	Pre-Printed	Green	63000 A 69000 A	Notice	Snap On	General	White	Floor Drain	Directional Arrow	60.33 mm	2.375 in	Plastic	Outdoor	8 in	203.2 mm	Text Only	Chemical Resistant	9 in	228.6 mm	Rectangle	1.5 in	38.1 mm
BRADY 5820-O	Pre-Printed	Green	63000 A 69000 A	Notice		General	White	Floor Drain	No Symbol	34.93 mm	1.375 in	Plastic	Outdoor			Text Only	Chemical Resistant	8 in	203.2 mm	Rectangle			0.5 in	12.7 mm	127 mm	127 mm
BRADY 5820-II	Pre-Printed	Green	63000 A 69000 A	Notice		General	White	Floor Drain	No Symbol		7.875 in	Plastic	Outdoor	12 in	304.8 mm	Text Only	Chemical Resistant			Rectangle							200.03 mm	660.4 mm	26 in	63.5 mm	2.5 in
