170037 Series

Catalog

187 FASTON REC

Part	Gender	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Tab Width	Tab Width	Mounting Type	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall	Length - Overall	Contact Material	Tab Length	Tab Length	Contact Finish	Termination	Insulation	Terminal Type

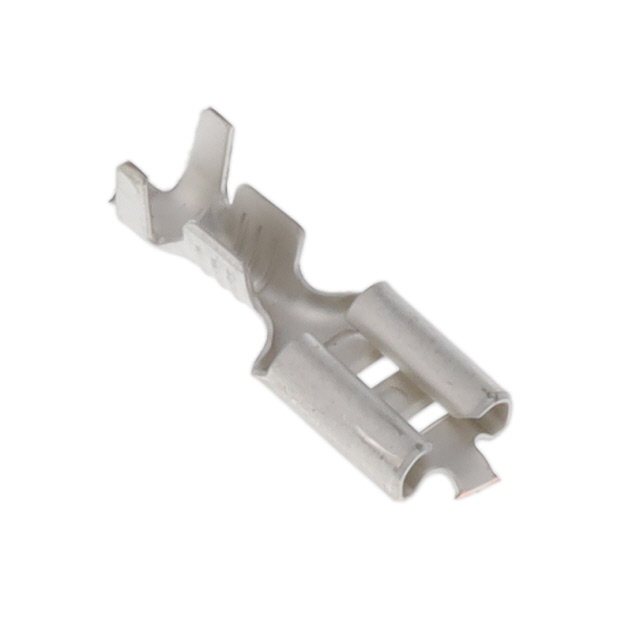

TE Connectivity Raychem Cable Protection 170037-4	Female	3.3 mm	2.29 mm	0.13 in	0.09 in	4.75 mm	0.187 in	Free Hanging (In-Line)	0.02 "	0.51 mm	16 AWG	20 AWG	0.598 in	15.2 mm	Phosphor Bronze	0.252 in	6.4 mm	Tin	Crimp	Non-Insulated	Standard

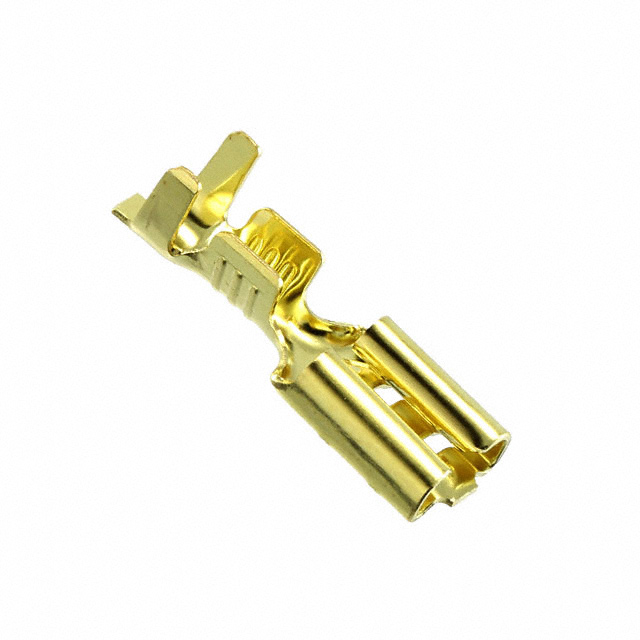

TE Connectivity Raychem Cable Protection 170037-1	Female	3.3 mm	2.29 mm	0.13 in	0.09 in	4.75 mm	0.187 in	Free Hanging (In-Line)	0.02 "	0.51 mm	16 AWG	20 AWG	0.598 in	15.2 mm	Brass	0.252 in	6.4 mm		Crimp	Non-Insulated	Standard
