76341 Series

Catalog

CONN RCPT 27POS 0.1 TIN PCB

Part	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Material Flammability Rating	Contact Type	Contact Finish - Post	Mounting Type	Insulation Height	Insulation Height	Connector Type	Pitch - Mating	Pitch - Mating	Applications	Fastening Type	Contact Material	Number of Rows	Contact Shape	Mated Stacking Heights [z]	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Finish - Mating
Amphenol ICC (FCI) 76341-427LF	Solder	78.7 µin	2 µm	Blue	2 çm	78.7 çin	All	UL94 V-0	Female Socket	Tin	Through Hole	6.99 mm	0.275 in	Receptacle	0.1 in	2.54 mm	Automotive General Purpose Industrial Telecommunications	Push-Pull	Phosphor Bronze	1	Square	11.04 mm	27	0.114 in	2.9 mm
Amphenol ICC (FCI) 76341-336HLF	Solder	30 Áin	0.76 Ám	Gray	2 çm	78.7 çin	All	UL94 V-0	Female Socket	Tin	Through Hole	6.99 mm	0.275 in	Receptacle	0.1 in	2.54 mm	Automotive General Purpose Industrial Telecommunications	Push-Pull	Phosphor Bronze	1	Square	11.04 mm	36	0.114 in	2.9 mm	Gold
Amphenol ICC (FCI) 76341-408	Solder	78.7 µin	2 µm	Blue	2 çm	78.7 çin	All	UL94 V-0	Female Socket	Tin-Lead	Through Hole	6.99 mm	0.275 in	Receptacle	0.1 in	2.54 mm	Automotive General Purpose Industrial Telecommunications	Push-Pull	Phosphor Bronze	1	Square	11.04 mm	8	0.114 in	2.9 mm	Tin-Lead
Amphenol ICC (FCI) 76341-309LF	Solder	30 Áin	0.76 Ám	Blue	2 çm	78.7 çin	All	UL94 V-0	Female Socket	Tin	Through Hole	6.99 mm	0.275 in	Receptacle	0.1 in	2.54 mm	Automotive General Purpose Industrial Telecommunications	Push-Pull	Phosphor Bronze	1	Square	11.04 mm	9	0.114 in	2.9 mm	Gold
Amphenol ICC (FCI) 76341-429LF	Solder	78.7 µin	2 µm	Blue	2 çm	78.7 çin	All	UL94 V-0	Female Socket	Tin	Through Hole	6.99 mm	0.275 in	Receptacle	0.1 in	2.54 mm	Automotive General Purpose Industrial Telecommunications	Push-Pull	Phosphor Bronze	1	Square	11.04 mm	29	0.114 in	2.9 mm

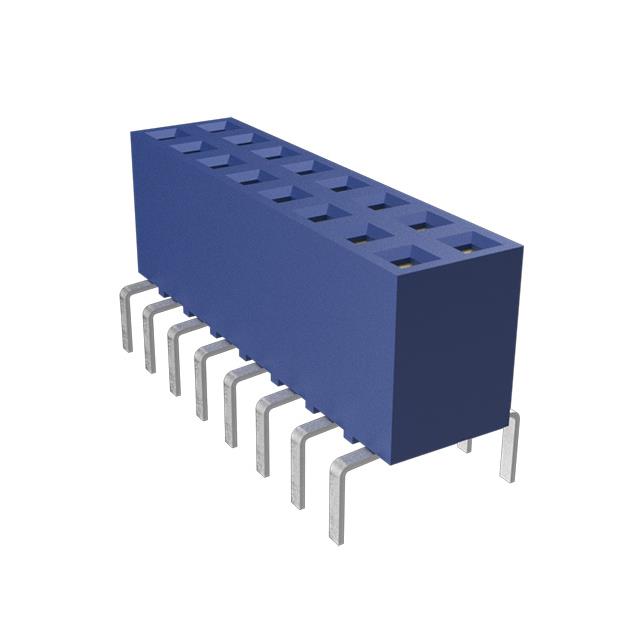

Amphenol ICC (FCI) 76341-315LF	Solder	30 Áin	0.76 Ám	Blue	2 çm	78.7 çin	All	UL94 V-0	Female Socket	Tin	Through Hole	6.99 mm	0.275 in	Receptacle	0.1 in	2.54 mm	Automotive General Purpose Industrial Telecommunications	Push-Pull	Phosphor Bronze	1	Square	11.04 mm	15	0.114 in	2.9 mm	Gold
Amphenol ICC (FCI) 76341-413LF	Solder	78.7 µin	2 µm	Blue	2 çm	78.7 çin	All	UL94 V-0	Female Socket	Tin	Through Hole	6.99 mm	0.275 in	Receptacle	0.1 in	2.54 mm	Automotive General Purpose Industrial Telecommunications	Push-Pull	Phosphor Bronze	1	Square	11.04 mm	13	0.114 in	2.9 mm
Amphenol ICC (FCI) 76341-324LF	Solder	30 Áin	0.76 Ám	Blue	2 çm	78.7 çin	All	UL94 V-0	Female Socket	Tin	Through Hole	6.99 mm	0.275 in	Receptacle	0.1 in	2.54 mm	Automotive General Purpose Industrial Telecommunications	Push-Pull	Phosphor Bronze	1	Square	11.04 mm	24	0.114 in	2.9 mm	Gold
Amphenol ICC (FCI) 76341-412LF	Solder	78.7 µin	2 µm	Blue	2 çm	78.7 çin	All	UL94 V-0	Female Socket	Tin	Through Hole	6.99 mm	0.275 in	Receptacle	0.1 in	2.54 mm	Automotive General Purpose Industrial Telecommunications	Push-Pull	Phosphor Bronze	1	Square	11.04 mm	12	0.114 in	2.9 mm
Amphenol ICC (FCI) 76341-407LF	Solder	78.7 µin	2 µm	Blue	2 çm	78.7 çin	All	UL94 V-0	Female Socket	Tin	Through Hole	6.99 mm	0.275 in	Receptacle	0.1 in	2.54 mm	Automotive General Purpose Industrial Telecommunications	Push-Pull	Phosphor Bronze	1	Square	11.04 mm	7	0.114 in	2.9 mm
