MIMXRT533 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
I.MXRT500,FOWLP,SEC,B2/ TRAY ROHS COMPLIANT: YES
| Part | RAM Size | Number of I/O | Core Size [custom] | Core Processor | Program Memory Type | Program Memory Size | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Peripherals | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Oscillator Type | Connectivity | Supplier Device Package | Mounting Type | Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

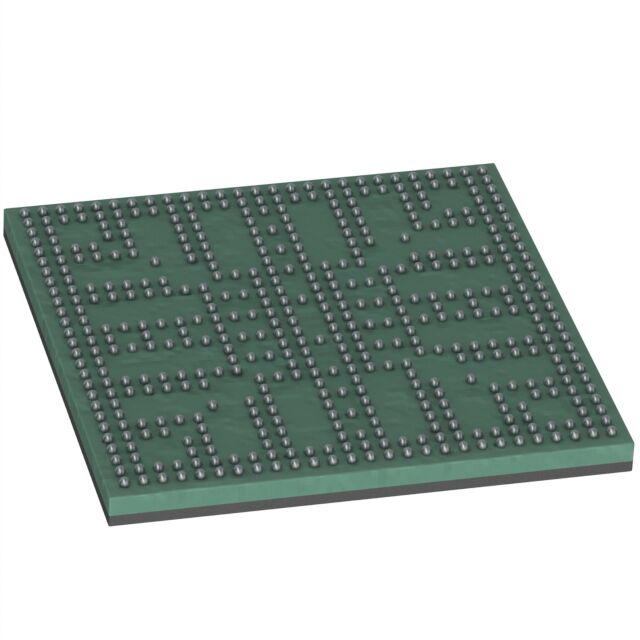

Freescale Semiconductor - NXP | 3 M | 136 | 32-Bit Dual-Core | ARM® Cortex®-M33 | ROM | 192 KB | 249-WFBGA | 70 °C | -20 °C | DMA I2S LCD POR PWM WDT | 3.6 V | 1.71 V | External Internal | eMMC/SD/SDIO I2C LINbus SPI UART/USART USB | 249-FOWLP (7x7) | Surface Mount | 200 MHz |

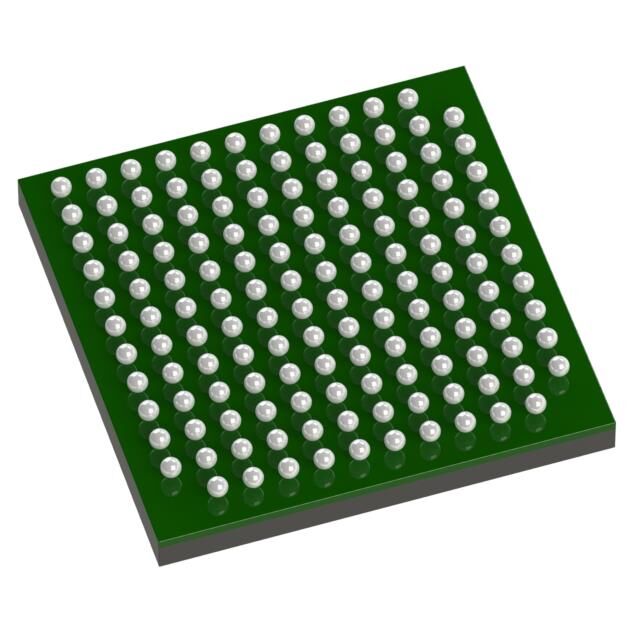

 Freescale Semiconductor - NXP | 3 M | 136 | 32-Bit Dual-Core | ARM® Cortex®-M33 | ROM | 192 KB | 141-XFBGA WLCSP | 70 °C | -20 °C | DMA I2S LCD POR PWM WDT | 3.6 V | 1.71 V | External Internal | eMMC/SD/SDIO I2C LINbus SPI UART/USART USB | 141-WLCSP (4.53x4.53) | Surface Mount | 200 MHz |
 Freescale Semiconductor - NXP | 3 M | 136 | 32-Bit Dual-Core | ARM® Cortex®-M33 | ROM | 192 KB | 249-WFBGA | 70 °C | -20 °C | DMA I2S LCD POR PWM WDT | 3.6 V | 1.71 V | External Internal | eMMC/SD/SDIO I2C LINbus SPI UART/USART USB | 249-FOWLP (7x7) | Surface Mount | 200 MHz |
