S12B-PUD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

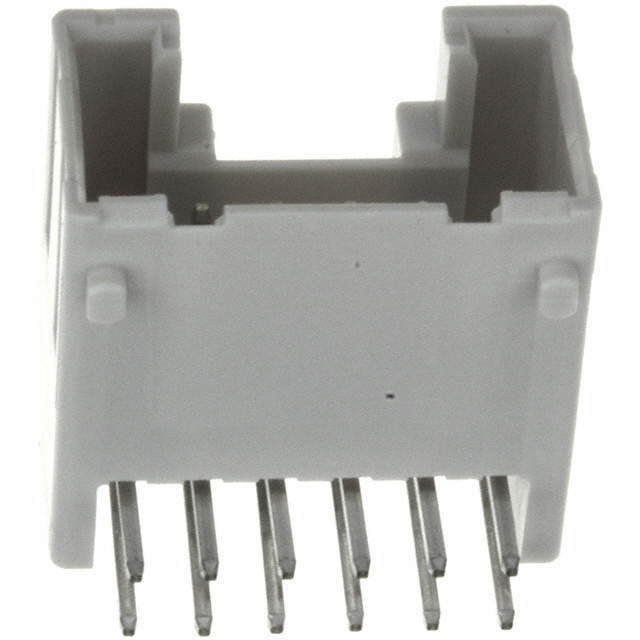

CONN HEADER R/A 12POS 2MM
| Part | Shrouding | Termination | Connector Type | Fastening Type | Contact Type | Contact Finish - Post | Contact Shape | Insulation Color | Insulation Material | Voltage Rating | Features | Material Flammability Rating | Contact Material | Insulation Height | Insulation Height | Number of Positions Loaded | Number of Positions | Style | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows [custom] | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | Solder | Header | Latch Holder | Male Pin | Tin | Square | Natural | Glass Filled Nylon 6/6 Polyamide (PA66) | 250 V | Board Guide | UL94 V-0 | Copper Alloy | 0.335 " | 8.51 mm | All | 12 | Board to Cable/Wire | 85 °C | -25 °C | 2 | 0.118 in | 3 mm | 2 mm | 0.079 in | 3 A | 0.079 " | 2 mm | Right Angle Through Hole |
