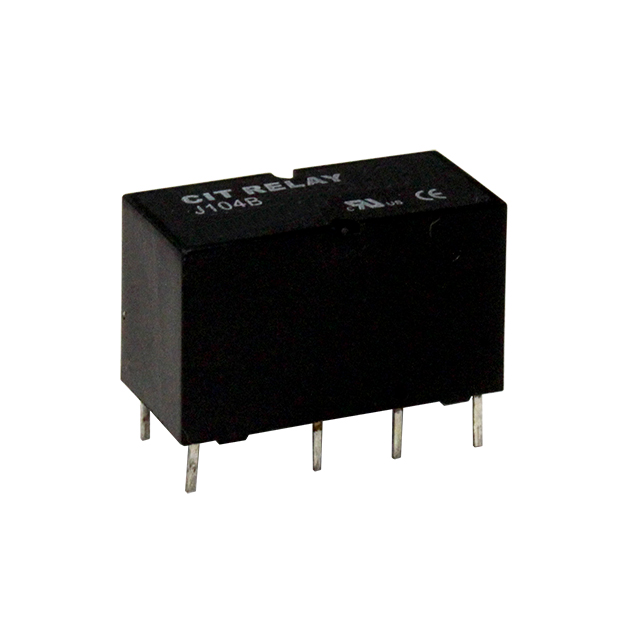

J104B2C Series

Catalog

RELAY GEN PURPOSE DPDT 3A 3V

Part	Coil Resistance	Switching Voltage [Max]	Must Operate Voltage	Termination Style	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Load - Max Switching	Seal Rating	Coil Current	Contact Material	Operate Time	Contact Rating (Current)	Mounting Type	Release Time	Must Release Voltage	Relay Type	Coil Voltage
CIT Relay and Switch J104B2C3VDC.15S	60 Ohms	220 VDC 250 VAC	2.25 VDC	PC Pin	DPDT (2 Form C)	85 °C	-40 C	Non Latching	660 W 750 VA	Sealed - Fully	50 mA	Gold (Au) Silver Nickel (AgNi)	4.5 ms	3 A	Through Hole	1.5 ms	0.3 VDC	General Purpose
CIT Relay and Switch J104B2C24VDC.20S	2.88 kOhms	220 VDC 250 VAC	18 VDC	PC Pin	DPDT (2 Form C)	85 °C	-40 C	Non Latching	660 W 750 VA	Sealed - Fully	8.3 mA	Gold (Au) Silver Nickel (AgNi)	4.5 ms	3 A	Through Hole	1.5 ms	2.4 VDC	General Purpose	24 VDC
CIT Relay and Switch J104B2C3VDC.20S	45 Ohms	220 VDC 250 VAC	2.25 VDC	PC Pin	DPDT (2 Form C)	85 °C	-40 C	Non Latching	660 W 750 VA	Sealed - Fully	66.7 mA	Gold (Au) Silver Nickel (AgNi)	4.5 ms	3 A	Through Hole	1.5 ms	0.3 VDC	General Purpose
CIT Relay and Switch J104B2C12VDC.15S	960 Ohms	220 VDC 250 VAC	9 VDC	PC Pin	DPDT (2 Form C)	85 °C	-40 C	Non Latching	660 W 750 VA	Sealed - Fully		Gold (Au) Silver Nickel (AgNi)	4.5 ms	3 A	Through Hole	1.5 ms	1.2 VDC	General Purpose	12 VDC
CIT Relay and Switch J104B2C5VDC.15S	167 Ohms	220 VDC 250 VAC	3.75 VDC	PC Pin	DPDT (2 Form C)	85 °C	-40 C	Non Latching	660 W 750 VA	Sealed - Fully	29.9 mA	Gold (Au) Silver Nickel (AgNi)	4.5 ms	3 A	Through Hole	1.5 ms	0.5 VDC	General Purpose	5 VDC
CIT Relay and Switch J104B2C48VDC.20S	11.5 kOhms	220 VDC 250 VAC	36 VDC	PC Pin	DPDT (2 Form C)	85 °C	-40 C	Non Latching	660 W 750 VA	Sealed - Fully	4.2 mA	Gold (Au) Silver Nickel (AgNi)	4.5 ms	3 A	Through Hole	1.5 ms	4.8 VDC	General Purpose	48 VDC
CIT Relay and Switch J104B2C5VDC.20S	125 Ohms	220 VDC 250 VAC	3.75 VDC	PC Pin	DPDT (2 Form C)	85 °C	-40 C	Non Latching	660 W 750 VA	Sealed - Fully	40 mA	Gold (Au) Silver Nickel (AgNi)	4.5 ms	3 A	Through Hole	1.5 ms	0.5 VDC	General Purpose	5 VDC
CIT Relay and Switch J104B2C12VDC.20S	720 Ohms	220 VDC 250 VAC	9 VDC	PC Pin	DPDT (2 Form C)	85 °C	-40 C	Non Latching	660 W 750 VA	Sealed - Fully	16.7 mA	Gold (Au) Silver Nickel (AgNi)	4.5 ms	3 A	Through Hole	1.5 ms	1.2 VDC	General Purpose	12 VDC
