HFW7R Series

Catalog

CONN FFC FPC BOTTOM 7POS

Part	Connector/Contact Type	Flat Flex Type	Number of Positions	Housing Color	Mating Cycles	Material Flammability Rating	FFC, FCB Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Termination	Housing Material	Mounting Type	Contact Material	Height Above Board [z]	Height Above Board [z]	Cable End Type	Features	Contact Finish	Pitch	Pitch
Amphenol ICC (FCI) HFW7R-1STNE1LF	Contacts Bottom	FFC FPC	7
Amphenol ICC (FCI) HFW7R-1STAE1LF	Contacts Bottom	FPC	7	Black	30	UL94 V-0	0.3 mm	-55 C	105 ░C	100 V	Solder	Glass Filled Nylon 6T Polyamide (PA6T)	Right Angle Surface Mount	Phosphor Bronze	1.9 mm	0.075 in	Tapered	Solder Retention	Gold	1 mm	0.039 in

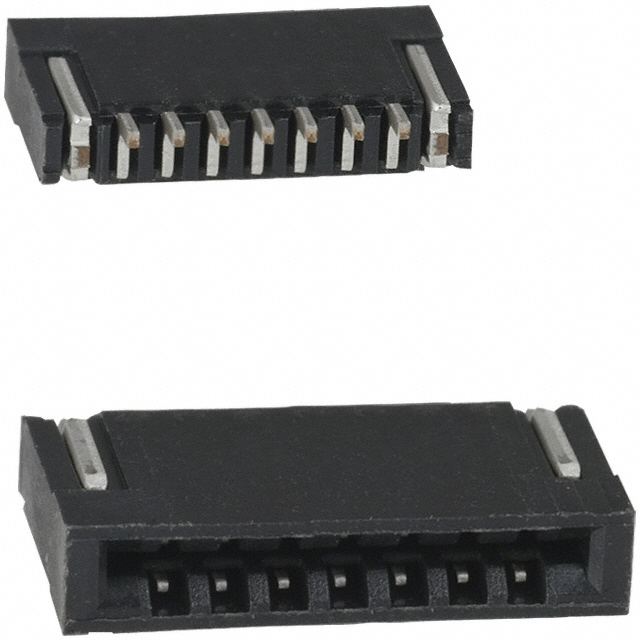

Amphenol ICC (FCI) HFW7R-2STE1LF	Contacts Top	FFC FPC	7	Black	30	UL94 V-0	0.3 mm	-55 C	105 ░C	100 V	Solder	Glass Filled Nylon 6T Polyamide (PA6T)	Right Angle Surface Mount	Phosphor Bronze	1.9 mm	0.075 in	Straight or Tapered		Tin	1 mm	0.039 in
Amphenol ICC (FCI) HFW7R-1STE1H1LF	Contacts Bottom	FFC FPC	7	Black	30	UL94 V-0	0.3 mm	-55 C	105 ░C	100 V	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount	Phosphor Bronze	1.9 mm	0.075 in	Straight or Tapered		Tin	1 mm	0.039 in
