ISOW1044 Series
Low emissions, 5-kVrms isolated CAN FD transceiver with integrated DC/DC power
Manufacturer: Texas Instruments
Catalog
Low emissions, 5-kVrms isolated CAN FD transceiver with integrated DC/DC power
Key Features
• Meets the requirements of ISO 11898-2:2016 physical layer standardsSupport of Classical CAN: 1 MbpsOptimized for CAN FD: 2 and 5 MbpsIntegrated DC-DC converter with low-emissions, low-noiseMeets CISPR 32 and EN 55032 Class B with greater than 6 dB margin on a two-layer PCBLow frequency power converter at 25 MHz enabling low noise performanceAdditional 10 Mbps GPIO channelHigh efficiency output powerTypical efficiency: 47%Isolated output voltage accuracy: ± 5%Additional output current: 20 mAIndependent power supply for CAN & DC-DCLogic supply (V IO): 1.71 V to 5.5 VPower converter supply ( V DD): 4.5 V to 5.5 VFault-Protected CAN FD TransceiverDC Bus fault protection voltage: ± 58VReceiver common mode input voltage: ±12 VRemote wakeup via BUS wake-up patternTypical loop delay: 167 nsReinforced and Basic isolation optionsHigh CMTI: 100-kV/µs (typical)High ESD bus protection w.r.t GND2HBM ESD: ±12 kVIEC 61000-4-2 contact discharge: ±8 kVOperating temperature range: -40°C to 125°CCurrent limit and thermal shutdown20-pin wide SOIC packageSafety-Related Certifications planned:VDE Reinforced and Basic insulation per DIN VDE V 0884-11:2017-01UL 1577 component recognition programIEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1-2011 certificationsMeets the requirements of ISO 11898-2:2016 physical layer standardsSupport of Classical CAN: 1 MbpsOptimized for CAN FD: 2 and 5 MbpsIntegrated DC-DC converter with low-emissions, low-noiseMeets CISPR 32 and EN 55032 Class B with greater than 6 dB margin on a two-layer PCBLow frequency power converter at 25 MHz enabling low noise performanceAdditional 10 Mbps GPIO channelHigh efficiency output powerTypical efficiency: 47%Isolated output voltage accuracy: ± 5%Additional output current: 20 mAIndependent power supply for CAN & DC-DCLogic supply (V IO): 1.71 V to 5.5 VPower converter supply ( V DD): 4.5 V to 5.5 VFault-Protected CAN FD TransceiverDC Bus fault protection voltage: ± 58VReceiver common mode input voltage: ±12 VRemote wakeup via BUS wake-up patternTypical loop delay: 167 nsReinforced and Basic isolation optionsHigh CMTI: 100-kV/µs (typical)High ESD bus protection w.r.t GND2HBM ESD: ±12 kVIEC 61000-4-2 contact discharge: ±8 kVOperating temperature range: -40°C to 125°CCurrent limit and thermal shutdown20-pin wide SOIC packageSafety-Related Certifications planned:VDE Reinforced and Basic insulation per DIN VDE V 0884-11:2017-01UL 1577 component recognition programIEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1-2011 certifications
Description
AI

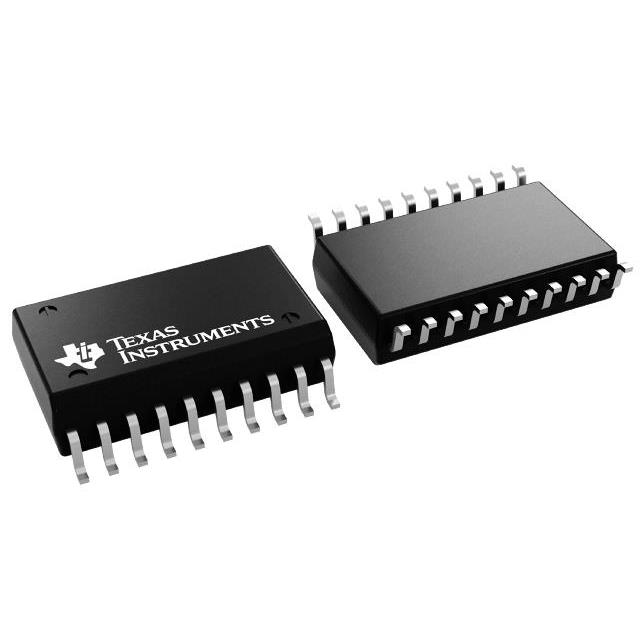

The ISOW1044 device is a galvanically-isolated controller area network (CAN) transceiver with a built-in isolated DC-DC converter that eliminates the need for a separate isolated power supply in space-constrained isolated designs. The low-emissions, isolated DC-DC meets CISPR 32 radiated emissions Class B standard with just two ferrite beads on a simple two-layer PCB. Additional 20 mA output current can be used to power other circuits on the board. An integrated 10 Mbps GPIO channel is available and can help remove an additional digital isolator or optocoupler for diagnotstics, LED indication or supply monitoring.
The ISOW1044 device is a galvanically-isolated controller area network (CAN) transceiver with a built-in isolated DC-DC converter that eliminates the need for a separate isolated power supply in space-constrained isolated designs. The low-emissions, isolated DC-DC meets CISPR 32 radiated emissions Class B standard with just two ferrite beads on a simple two-layer PCB. Additional 20 mA output current can be used to power other circuits on the board. An integrated 10 Mbps GPIO channel is available and can help remove an additional digital isolator or optocoupler for diagnotstics, LED indication or supply monitoring.
