MC335 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

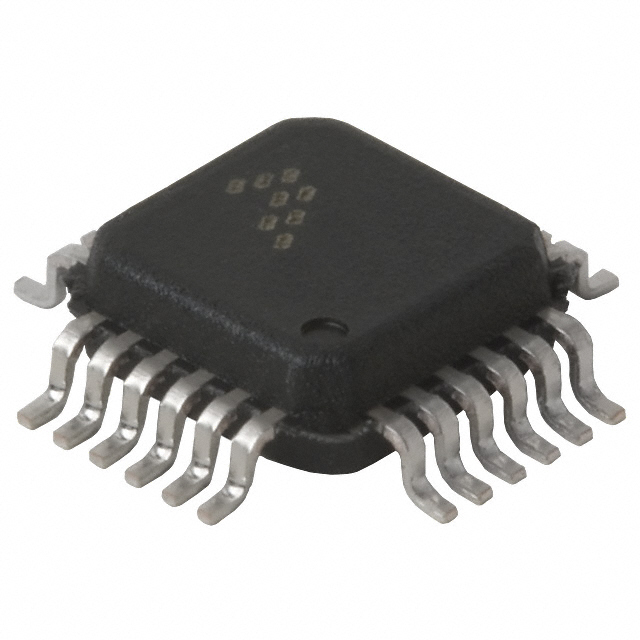

RF RX FSK/OOK 315/434MHZ 24LQFP

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Mounting Type	Data Interface	Sensitivity	Current - Receiving	Applications	Antenna Connector	Modulation or Protocol	Data Rate (Max)	Data Rate (Max) [Max]	Frequency	Supplied Contents
Freescale Semiconductor - NXP MC33591FTAR2	3.6 V	1.9 V	85 °C	-40 °C	24-LQFP	24-LQFP (4x4)	Surface Mount	PCB Surface Mount	-105 dBm	5.7 mA	General Data Transfer	PCB Surface Mount	FSK OOK	11 kBaud
Freescale Semiconductor - NXP MC33596FJER2	3.6 V 5.5 V	2.7 V 4.5 V	85 °C	-40 °C	32-LQFP	32-LQFP (5x5)	Surface Mount	PCB Surface Mount	-104 dBm	10.3 mA	General Data Transfer	PCB Surface Mount	FSK OOK		22.4 kBaud	304 MHz 315 MHz 426 MHz 434 MHz 868 MHz 915 MHz
Freescale Semiconductor - NXP MC33596FJAER2	3.6 V 5.5 V	2.7 V 4.5 V	85 °C	-20 C	32-LQFP	32-LQFP (5x5)	Surface Mount	PCB Surface Mount	-104 dBm	10.3 mA	General Data Transfer	PCB Surface Mount	FSK OOK		22.4 kBaud	304 MHz 315 MHz 426 MHz 434 MHz 868 MHz 915 MHz
Freescale Semiconductor - NXP MC33593MOD868EV																868 MHz	Board(s)
Freescale Semiconductor - NXP MC33596FCER2	3.6 V 5.5 V	2.7 V 4.5 V	85 °C	-40 °C	32-VFQFN Exposed Pad	32-QFN-EP (5x5)	Surface Mount	PCB Surface Mount	-104 dBm	10.3 mA	General Data Transfer	PCB Surface Mount	FSK OOK		22.4 kBaud	304 MHz 315 MHz 426 MHz 434 MHz 868 MHz 915 MHz
Freescale Semiconductor - NXP MC33594FTA	5.5 V	4.5 V	105 ░C	-40 °C	24-LQFP	24-LQFP (4x4)	Surface Mount	PCB Surface Mount	-105 dBm	5.7 mA	General Data Transfer	PCB Surface Mount	FSK OOK	11 kBaud
Freescale Semiconductor - NXP MC33596FJE	3.6 V 5.5 V	2.7 V 4.5 V	85 °C	-40 °C	32-LQFP	32-LQFP (5x5)	Surface Mount	PCB Surface Mount	-104 dBm	10.3 mA	General Data Transfer	PCB Surface Mount	FSK OOK		22.4 kBaud	304 MHz 315 MHz 426 MHz 434 MHz 868 MHz 915 MHz
Freescale Semiconductor - NXP MC33592FTAE	3.6 V	1.9 V	85 °C	-40 °C	24-LQFP	24-LQFP (4x4)	Surface Mount	PCB Surface Mount	-105 dBm	5.7 mA	General Data Transfer	PCB Surface Mount	OOK	11 kBaud
Freescale Semiconductor - NXP MC33596FJAE	3.6 V 5.5 V	2.7 V 4.5 V	85 °C	-20 C	32-LQFP	32-LQFP (5x5)	Surface Mount	PCB Surface Mount	-104 dBm	10.3 mA	General Data Transfer	PCB Surface Mount	FSK OOK		22.4 kBaud	304 MHz 315 MHz 426 MHz 434 MHz 868 MHz 915 MHz
