725-018 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 18POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Color	Gender	Number of Positions	Number of Positions/Bay/Row	Mounting Type	Contact Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Material	Card Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination	Card Thickness [Max]	Card Thickness [Min]

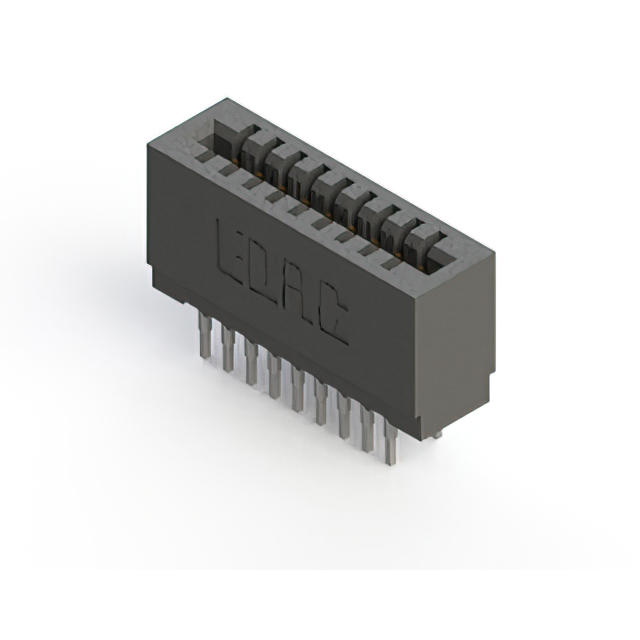

EDAC Inc. 725-018-522-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Black	Female	18	9	Through Hole	Cantilever	Gold	-40 C	105 ░C	2	Copper Alloy	Non Specified - Dual Edge	30 Áin	0.76 Ám	Dual	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm

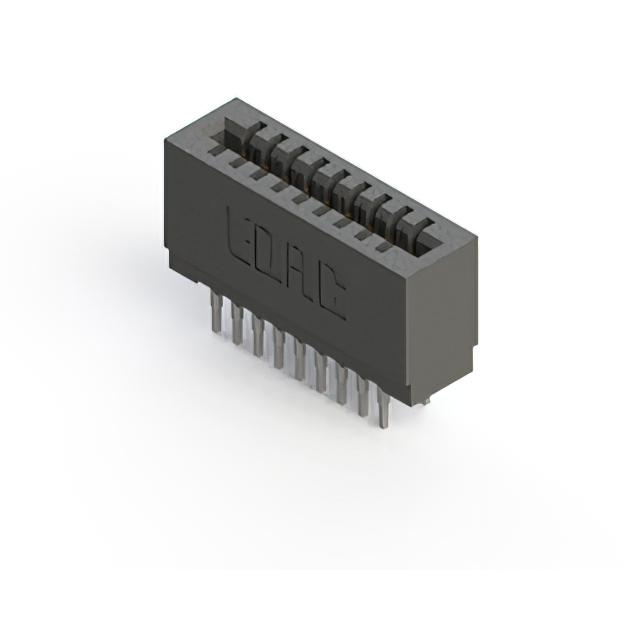

EDAC Inc. 725-018-540-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Black	Female	18	9	Through Hole	Cantilever	Gold	-40 C	105 ░C	2	Copper Alloy	Non Specified - Dual Edge	30 Áin	0.76 Ám	Dual	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm

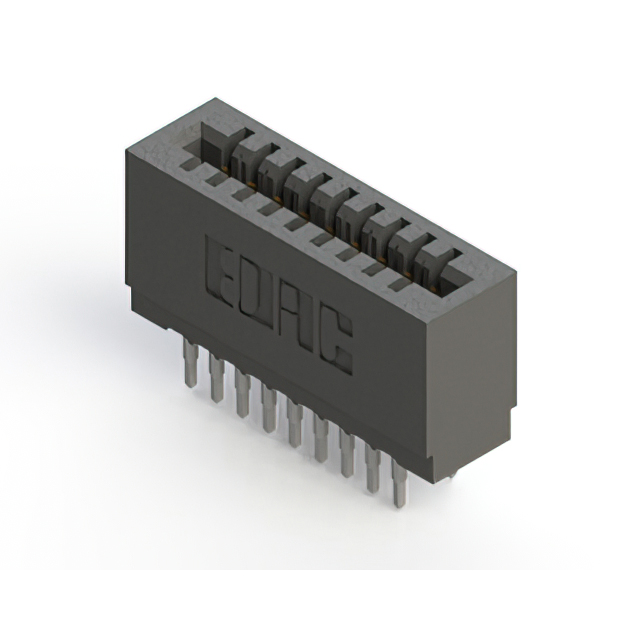

EDAC Inc. 725-018-520-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Black	Female	18	9	Through Hole	Cantilever	Gold	-40 C	105 ░C	2	Copper Alloy	Non Specified - Dual Edge	30 Áin	0.76 Ám	Dual	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm

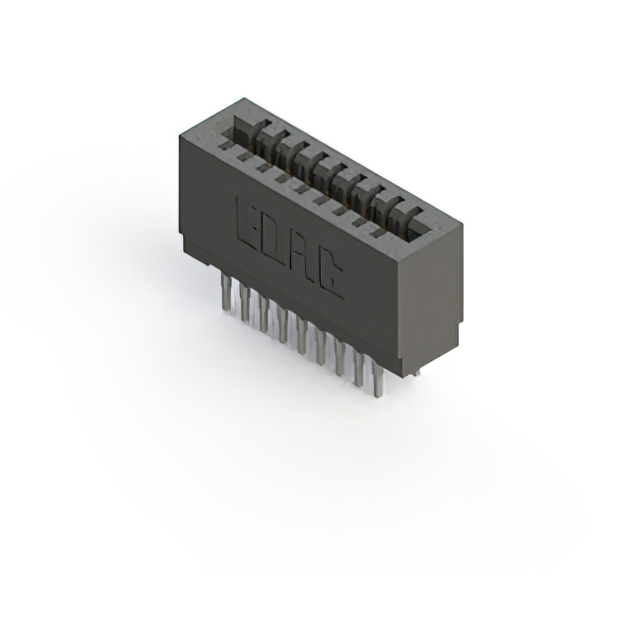

EDAC Inc. 725-018-541-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Black	Female	18	9	Through Hole	Cantilever	Gold	-40 C	105 ░C	2	Copper Alloy	Non Specified - Dual Edge	30 Áin	0.76 Ám	Dual	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm
