WCC Series

Catalog

CBL CLAMP STR RLF DIN RAIL

Part	Type	Color	Mounting Type	Opening Size [Min]	Opening Size [Min]	Opening Size [Max]	Opening Size [Max]	Material	Length	Length	Height [z]	Height [z]	Type Attributes	Width [y]	Width [y]	Height	Height	Opening Size [Min] [diameter]	Opening Size [Max] [diameter]	Opening Size [Max] [diameter]	Opening Size [Min] [diameter]	Length [x]	Length [x]	Opening Size [Max]

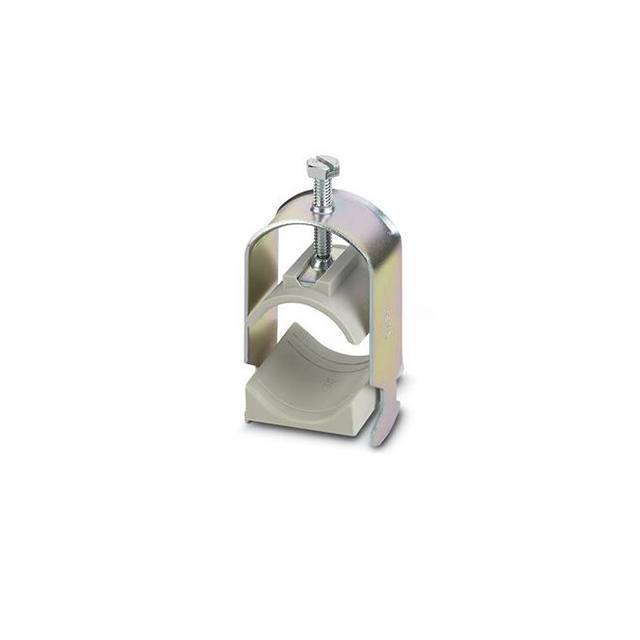

Phoenix Contact 3240258	Clamp Strain Relief	Silver	DIN Rail	1.339 in	34 mm	38 mm	1.496 in	Halogen Free Plastic Trough Steel	42.49 mm	1.673 in	105 mm	4.134 in	Round Saddle Clamp Screw Locking	24 mm	0.945 in

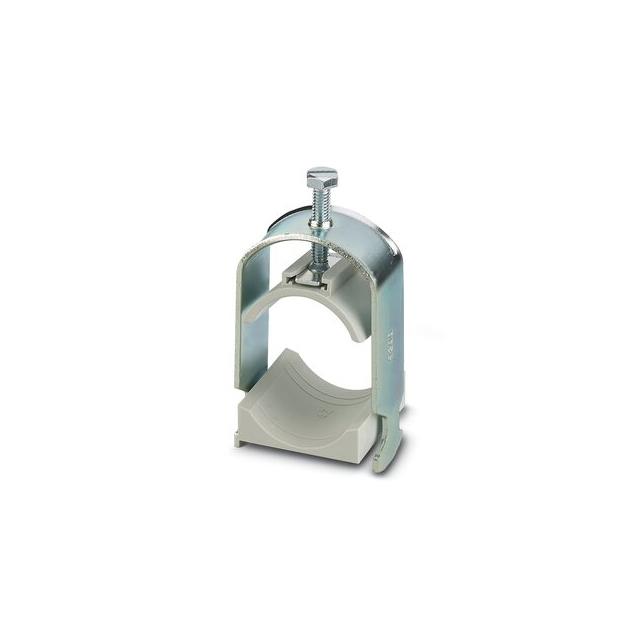

Phoenix Contact 3240259	Clamp Strain Relief	Silver	DIN Rail					Halogen Free Plastic Trough Steel	47.2 mm	1.858 in			Round Saddle Clamp Screw Locking	24 mm	0.945 in	4.37 in	111 mm	1.496 in	1.654 in	42 mm	38 mm

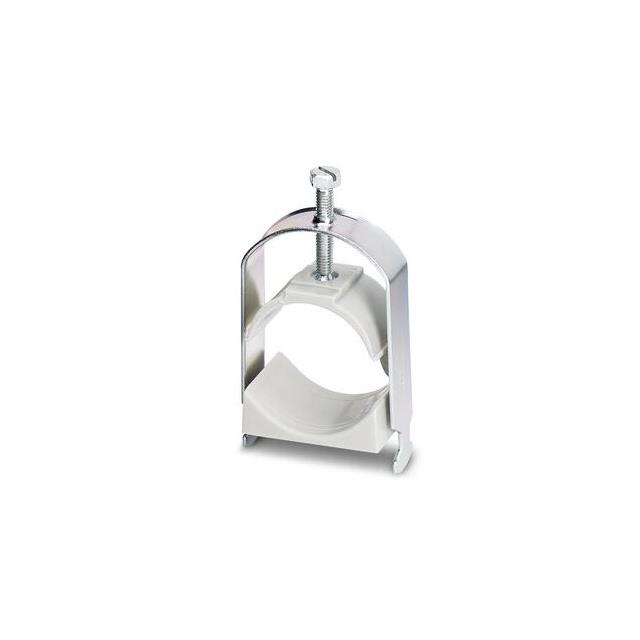

Phoenix Contact 3240261	Clamp Strain Relief	Silver	DIN Rail	2.205 "	56 mm	64 mm	2.52 "	Halogen Free Plastic Trough Steel	69 mm	2.717 in			Round Saddle Clamp Screw Locking	24 mm	0.945 in	6.063 in	154 mm

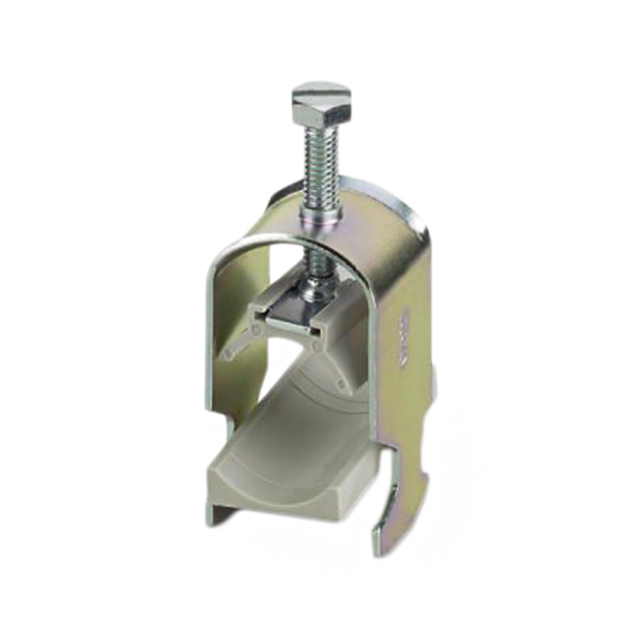

Phoenix Contact 3240255	Clamp Strain Relief	Silver	DIN Rail	0.866 in	22 mm	26 mm	1.024 in	Halogen Free Plastic Trough Steel	0.03 m	1.181 in		3.465 in	Round Saddle Clamp Screw Locking	24 mm	0.945 in		88 mm

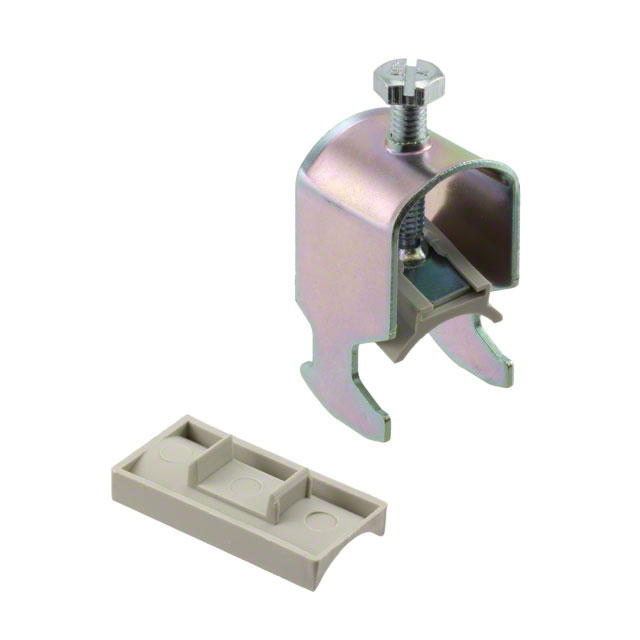

Phoenix Contact 3240254	Clamp Strain Relief	Silver	DIN Rail	0.709 "	18 mm	22 mm	0.866 in	Halogen Free Plastic Trough Steel			83 mm	3.268 in	Round Saddle Clamp Screw Locking	24 mm	0.945 in							1.024 in	26 mm

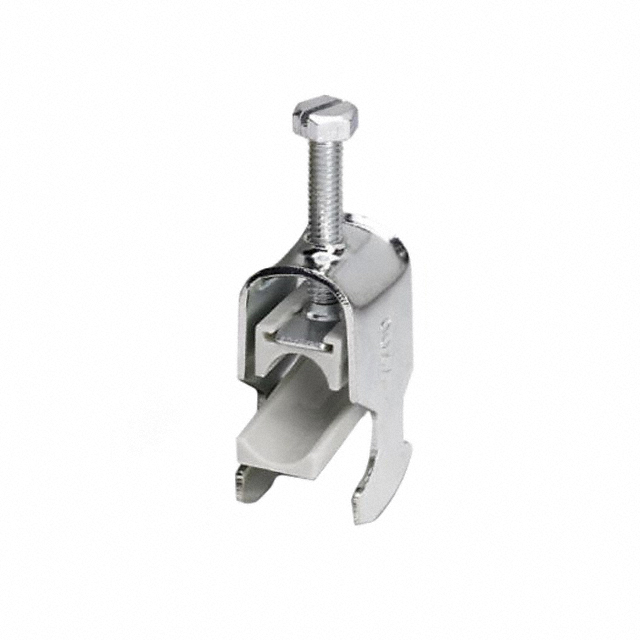

Phoenix Contact 3240256	Clamp Strain Relief	Silver	DIN Rail	1.024 "	26 mm	30 mm	1.181 "	Halogen Free Plastic Trough Steel	33.5 mm	1.319 "	92 mm	3.622 in	Round Saddle Clamp Screw Locking	24 mm	0.945 in

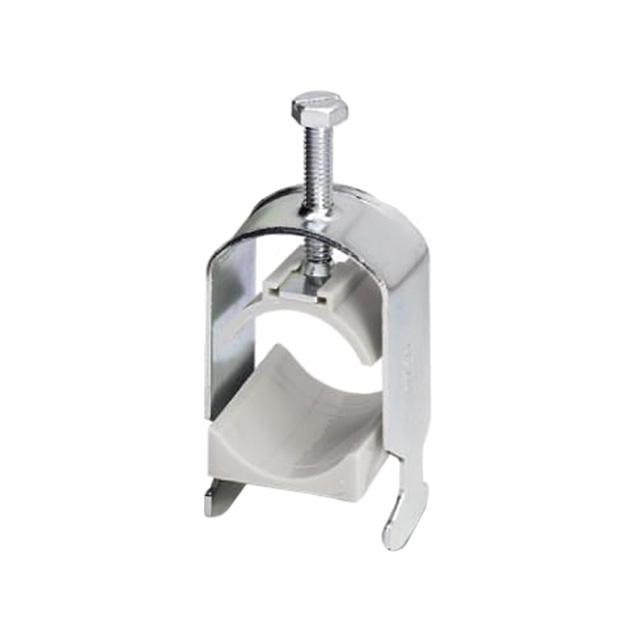

Phoenix Contact 3240257	Clamp Strain Relief	Silver	DIN Rail	1.181 "	30 mm	34 mm	1.339 "	Halogen Free Plastic Trough Steel			97 mm	3.819 in	Round Saddle Clamp Screw Locking	24 mm	0.945 in							1.496 in	38 mm

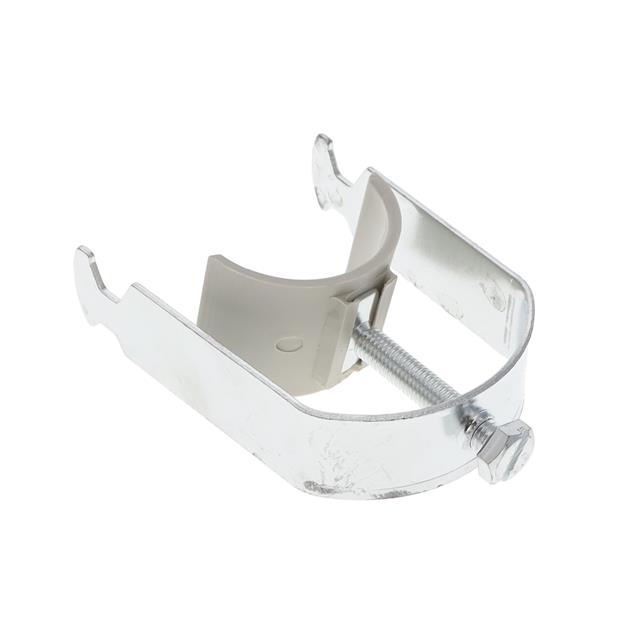

Phoenix Contact 3240260	Clamp Strain Relief	Silver	DIN Rail	1.654 in	42 mm		2.205 in	Halogen Free Plastic Trough Steel			145 mm	5.709 in	Round Saddle Clamp Screw Locking	24 mm	0.945 in									56 mm
