2213189 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN SSL RCPT 2POS 3.3MM SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Wire Gauge [Max] | Wire Gauge [Min] | Voltage Rating | Contact Finish | Mounting Type | Connector Type | Contact Material | Current Rating (Amps) | Pitch [x] | Pitch [x] | Style | Housing Color | Housing Material | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

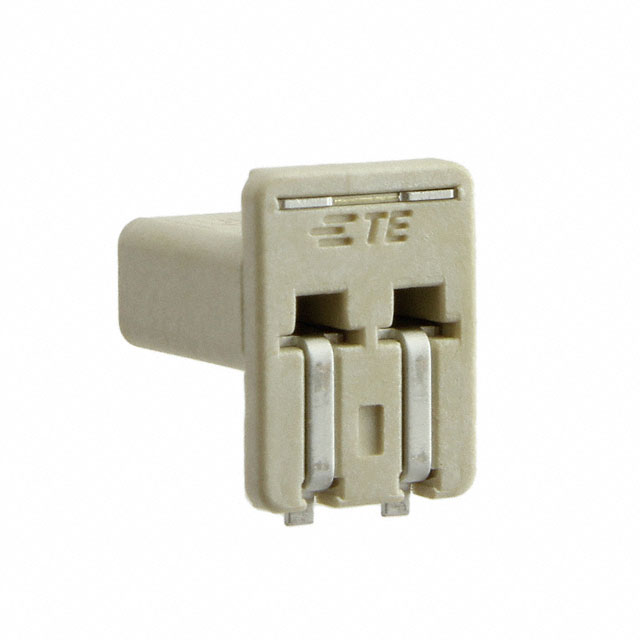

 TE Connectivity Raychem Cable Protection | -20 C | 130 °C | 2 | 22 AWG | 17.5 AWG | 400 V | Tin | Bottom Entry Surface Mount Through Board | Poke-In Wire Receptacle | Copper Alloy | 3 A | 0.13 in | 3.3 mm | Board to Cable/Wire | Natural | Thermoplastic | Solder | Solder Retention |

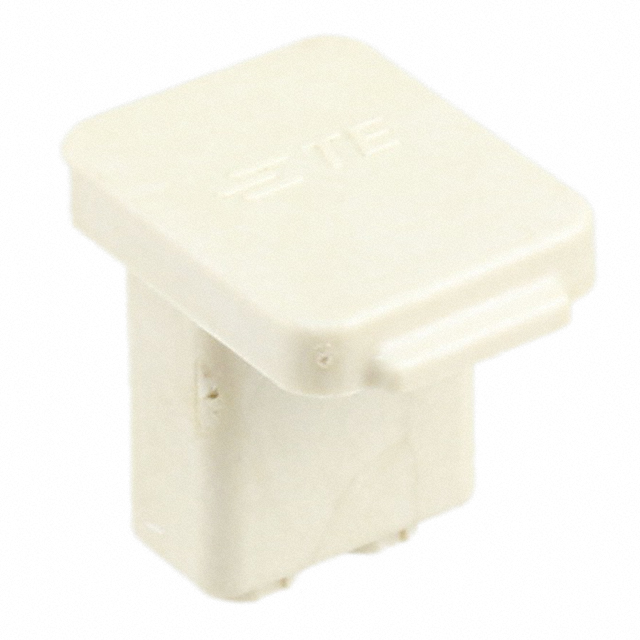

 TE Connectivity Raychem Cable Protection | -20 C | 130 °C | 2 | 26 AWG | 24 AWG | 400 V | Tin | Bottom Entry Surface Mount Through Board | Poke-In Wire Receptacle | Copper Alloy | 2 A | 0.13 in | 3.3 mm | Board to Cable/Wire | Natural | Thermoplastic | Solder | Cover Solder Retention |
