054684 Series

Manufacturer: Molex

Catalog

CONN RCPT 24POS SMD GOLD

Part	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mated Stacking Heights
Molex 0546840244	Center Strip Contacts Receptacle	0.016 in	0.4 mm	2	4 Áin	0.1 Ám	Surface Mount	24	2.6 mm	0.102 in	Gold	3.5 mm 4 mm
Molex 0546841204	Center Strip Contacts Receptacle	0.016 in	0.4 mm	2	4 Áin	0.1 Ám	Surface Mount	120	2.6 mm	0.102 in	Gold	3.5 mm 4 mm
Molex 0546840804	Center Strip Contacts Receptacle	0.016 in	0.4 mm	2	4 Áin	0.1 Ám	Surface Mount	80	2.6 mm	0.102 in	Gold	3.5 mm 4 mm

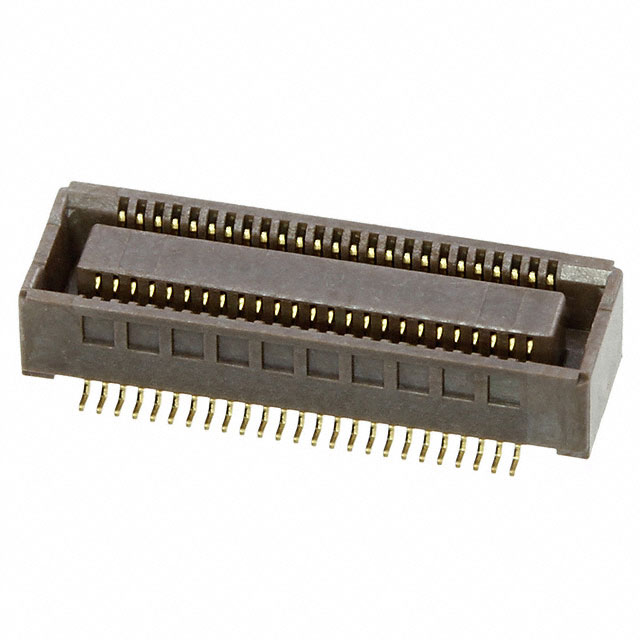

Molex 0546840508	Center Strip Contacts Receptacle	0.016 in	0.4 mm	2	10 Áin	0.25 Ám	Surface Mount	50	2.6 mm	0.102 in	Gold	3.5 mm 4 mm

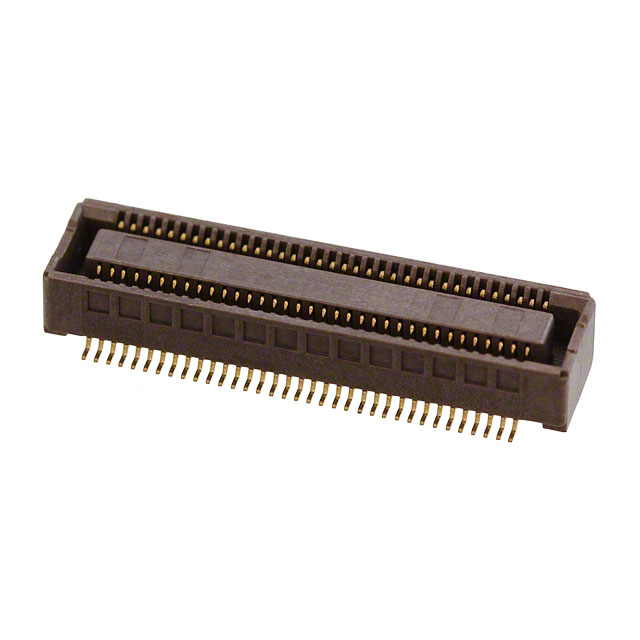

Molex 0546840704	Center Strip Contacts Receptacle	0.016 in	0.4 mm	2	4 Áin	0.1 Ám	Surface Mount	70	2.6 mm	0.102 in	Gold	3.5 mm 4 mm
