FAN2559 Series

Catalog

IC REG LINEAR 1V 180MA SOT23-6

Part	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	Protection Features	Voltage - Input (Max) [Max]	PSRR	Output Type	Number of Regulators	Control Features	Current - Output	Output Configuration	Mounting Type	Supplier Device Package	Package / Case
ON Semiconductor FAN2559S10X	1 V	85 °C	-40 °C	150 çA	Over Current Over Temperature	5.5 V	50 dB	1.81 mOhm	1	Enable Power Good	180 mA	Positive	Surface Mount	SOT-23-6	SOT-23-6

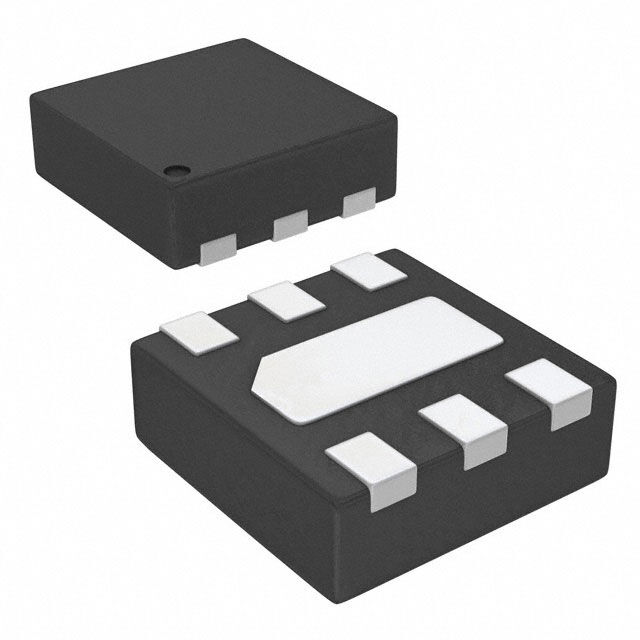

ON Semiconductor FAN2559MP18X	1.8 V	85 °C	-40 °C	150 çA	Over Current Over Temperature	5.5 V	50 dB	1.81 mOhm	1	Enable Power Good	180 mA	Positive	Surface Mount	6-DFN (2x2)	6-VDFN Exposed Pad
ON Semiconductor FAN2559MP18X	1.8 V	85 °C	-40 °C	150 çA	Over Current Over Temperature	5.5 V	50 dB	1.81 mOhm	1	Enable Power Good	180 mA	Positive	Surface Mount	6-DFN (2x2)	6-VDFN Exposed Pad
ON Semiconductor FAN2559S10X	1 V	85 °C	-40 °C	150 çA	Over Current Over Temperature	5.5 V	50 dB	1.81 mOhm	1	Enable Power Good	180 mA	Positive	Surface Mount	SOT-23-6	SOT-23-6
ON Semiconductor FAN2559MP10X	1 V	85 °C	-40 °C	150 çA	Over Current Over Temperature	5.5 V	50 dB	1.81 mOhm	1	Enable Power Good	180 mA	Positive	Surface Mount	6-DFN (2x2)	6-VDFN Exposed Pad
ON Semiconductor FAN2559MP15X	1.5 V	85 °C	-40 °C	150 çA	Over Current Over Temperature	5.5 V	50 dB	1.81 mOhm	1	Enable Power Good	180 mA	Positive	Surface Mount	6-DFN (2x2)	6-VDFN Exposed Pad
