EPM7192 Series

Manufacturer: Altera

Catalog

IC CPLD 192MC 10NS 160QFP

Part	Package / Case	Number of Logic Elements/Blocks	Supplier Device Package	Number of I/O	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Macrocells	Programmable Type	Mounting Type	Delay Time tpd(1) Max [Max]	Number of Gates

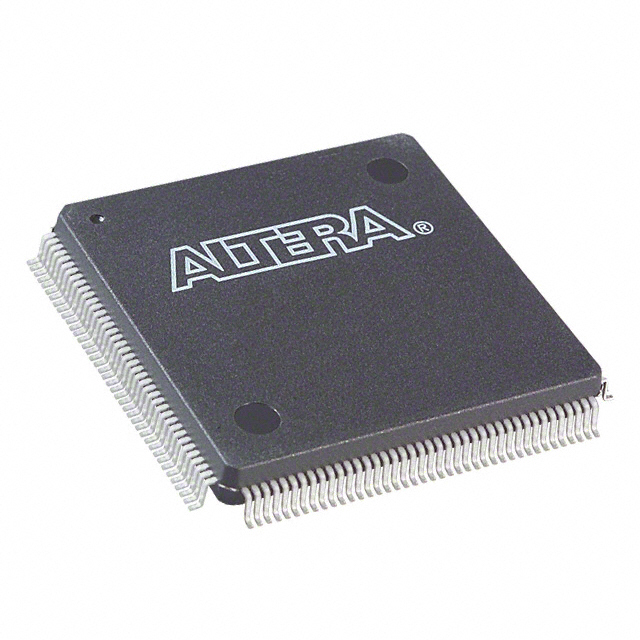

Altera EPM7192SQI160-10	160-BQFP	12	160-PQFP (28x28)	124	4.5 V	5.5 V	85 C	-40 ¯C	192	In System Programmable	Surface Mount	10 ns	3750

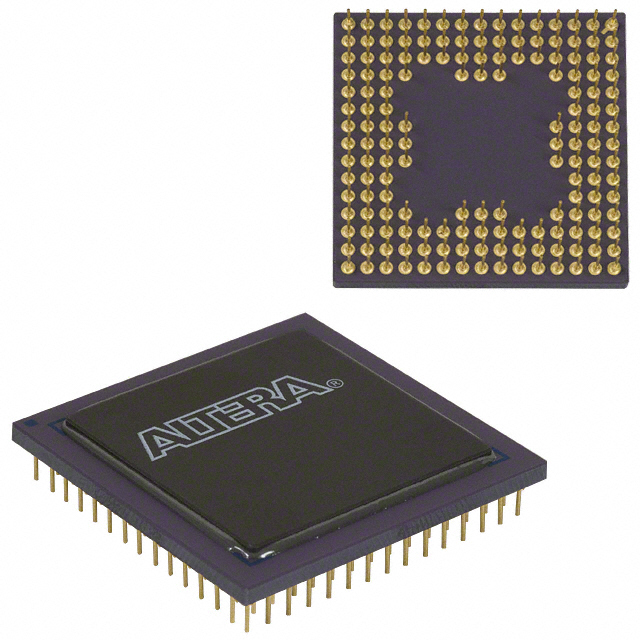

Altera EPM7192EGC160-12	160-BPGA	12	160-PGA (39.62x39.62)	124	4.75 V	5.25 V	70 °C	0 °C	192	EE PLD	Through Hole	12 ns	3750
Altera EPM7192EQC160-12	160-BQFP	12	160-PQFP (28x28)	124	4.75 V	5.25 V	70 °C	0 °C	192	EE PLD	Surface Mount	12 ns	3750
Altera EPM7192EGC160-15	160-BPGA	12	160-PGA (39.62x39.62)	124	4.75 V	5.25 V	70 °C	0 °C	192	EE PLD	Through Hole	15 ns	3750
Altera EPM7192EGI160-20	160-BPGA	12	160-PGA (39.62x39.62)	124	4.5 V	5.5 V	85 C	-40 ¯C	192	EE PLD	Through Hole	20 ns	3750
Altera EPM7192EGI160-20	160-BPGA	12	160-PGA (39.62x39.62)	124	4.5 V	5.5 V	85 C	-40 ¯C	192	EE PLD	Through Hole	20 ns	3750
Altera EPM7192EQI160-20	160-BQFP	12	160-PQFP (28x28)	124	4.5 V	5.5 V	85 C	-40 ¯C	192	EE PLD	Surface Mount	20 ns	3750
Altera EPM7192EQC160-12	160-BQFP	12	160-PQFP (28x28)	124	4.75 V	5.25 V	70 °C	0 °C	192	EE PLD	Surface Mount	12 ns	3750
Altera EPM7192EGC160-15	160-BPGA	12	160-PGA (39.62x39.62)	124	4.75 V	5.25 V	70 °C	0 °C	192	EE PLD	Through Hole	15 ns	3750
Altera EPM7192EGC160-12	160-BPGA	12	160-PGA (39.62x39.62)	124	4.75 V	5.25 V	70 °C	0 °C	192	EE PLD	Through Hole	12 ns	3750
