SFH21 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER 30POS IDC 26-28AWG

Part	Contact Finish	Contact Finish Thickness	Color	Cable Termination	Wire Type	Number of Rows [custom]	Connector Type	Pitch [x]	Pitch [x]	Contact Type	Number of Positions	Features	Row Spacing	Row Spacing	Mounting Type
Sullins Connector Solutions SFH21-PPPN-D15-ID-BK-M181	Gold	Flash	Black	IDC	Ribbon Cable	2	Header	0.079 in	2 mm	Female Socket	30	Feed Through Polarizing Key	2 mm	0.079 in	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPPN-D15-ID-BK	Gold	Flash	Black	IDC	Ribbon Cable	2	Header	0.079 in	2 mm	Female Socket	30	Feed Through Polarizing Key	2 mm	0.079 in	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPPN-D34-ID-BK-M181	Gold	Flash	Black	IDC	Ribbon Cable	2	Header	0.079 in	2 mm	Female Socket	68 positions	Feed Through Polarizing Key	2 mm	0.079 in	Free Hanging (In-Line)

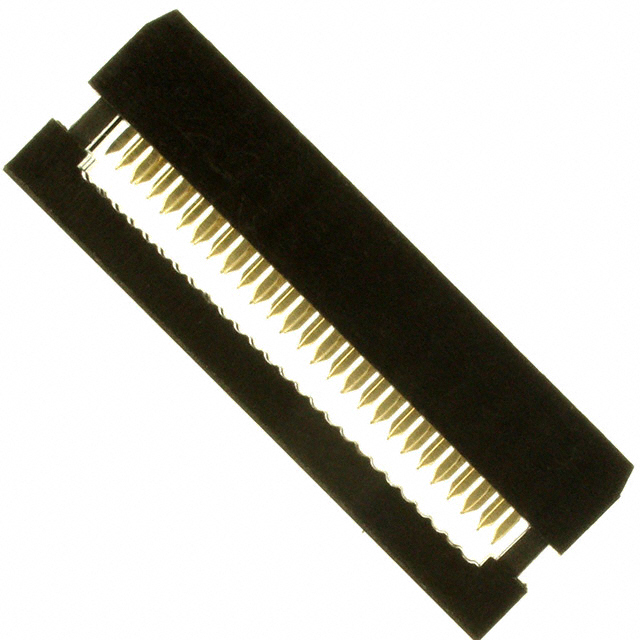

Sullins Connector Solutions SFH21-PPPN-D13-ID-BK-M181	Gold	Flash	Black	IDC	Ribbon Cable	2	Header	0.079 in	2 mm	Female Socket	26	Feed Through Polarizing Key	2 mm	0.079 in	Free Hanging (In-Line)

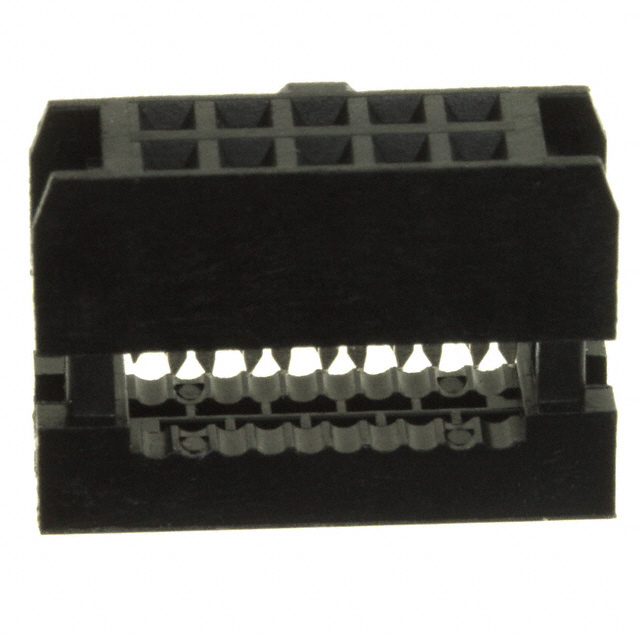

Sullins Connector Solutions SFH21-PPPN-D05-ID-BK	Gold	Flash	Black	IDC	Ribbon Cable	2	Header	0.079 in	2 mm	Female Socket	10	Feed Through Polarizing Key	2 mm	0.079 in	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPVN-D08-ID-BK-M181	Gold	Flash	Black	IDC	Ribbon Cable	2	Header	0.079 in	2 mm	Female Socket	16	Feed Through Polarizing Key	2 mm	0.079 in	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPVN-D34-ID-BK-M181	Gold	Flash	Black	IDC	Ribbon Cable	2	Header	0.079 in	2 mm	Female Socket	68 positions	Feed Through Polarizing Key	2 mm	0.079 in	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPVN-D03-ID-BK	Gold	Flash	Black	IDC	Ribbon Cable	2	Header	0.079 in	2 mm	Female Socket	6	Feed Through Polarizing Key	2 mm	0.079 in	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPVN-D12-ID-BK	Gold	Flash	Black	IDC	Ribbon Cable	2	Header	0.079 in	2 mm	Female Socket	24	Feed Through Polarizing Key	2 mm	0.079 in	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPPN-D09-ID-BK	Gold	Flash	Black	IDC	Ribbon Cable	2	Header	0.079 in	2 mm	Female Socket	18	Feed Through Polarizing Key	2 mm	0.079 in	Free Hanging (In-Line)
