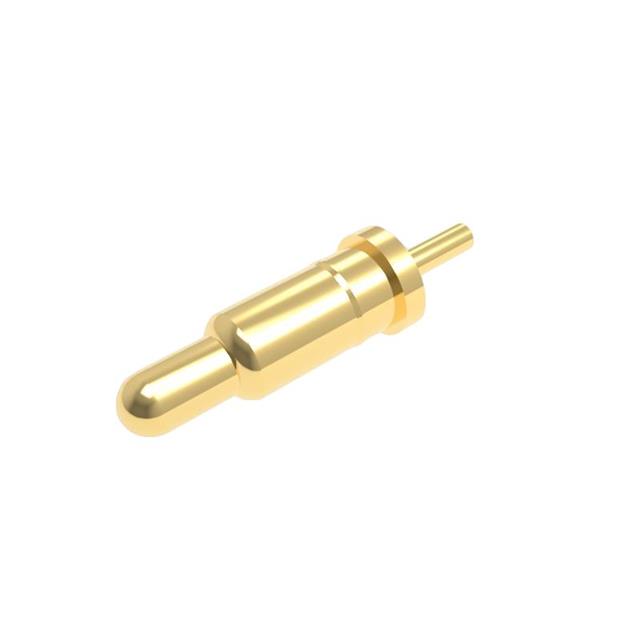

PH-MVP-33 Series
Manufacturer: Adam Tech
Beta
⌘K
CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Recommended Working Height | Recommended Working Height | Contact Material | Contact Finish | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) | Maximum Working Height [Max] | Maximum Working Height [Max] | Minimum Working Height [Min] | Minimum Working Height [Min] | Mating Cycles | Mounting Type | Contact Type | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | -55 C | 125 °C | 1.8 mm | 0.071 in | 0.157 in | 4 mm | Brass | Gold | 1 mm | 0.039 in | 3 A | 5 mm | 0.197 in | 0.142 in | 3.6 mm | 1000000 | Through Hole | Sleeve & Plunger (Pogo Pins) | 70 gf |
