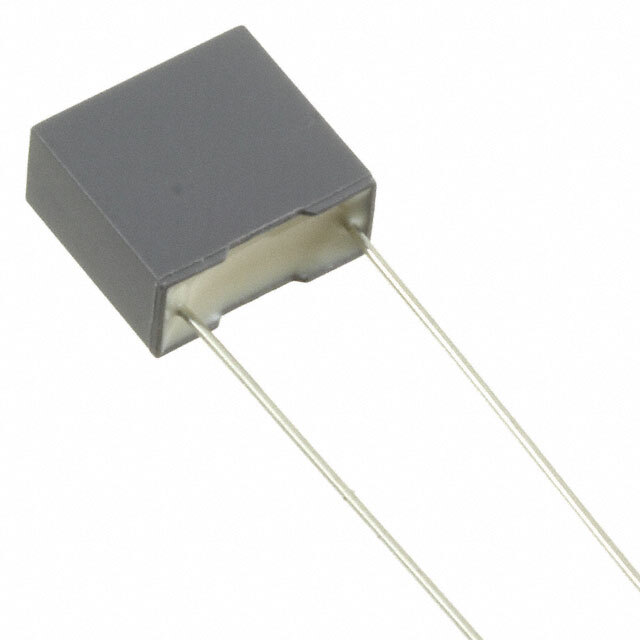

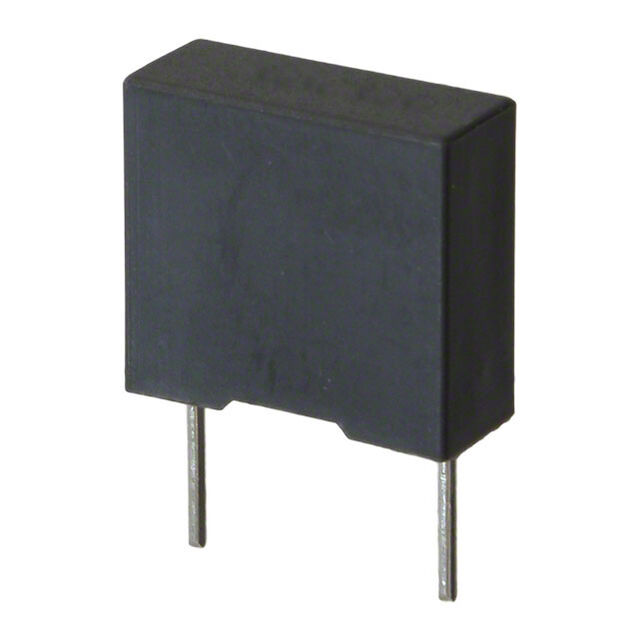

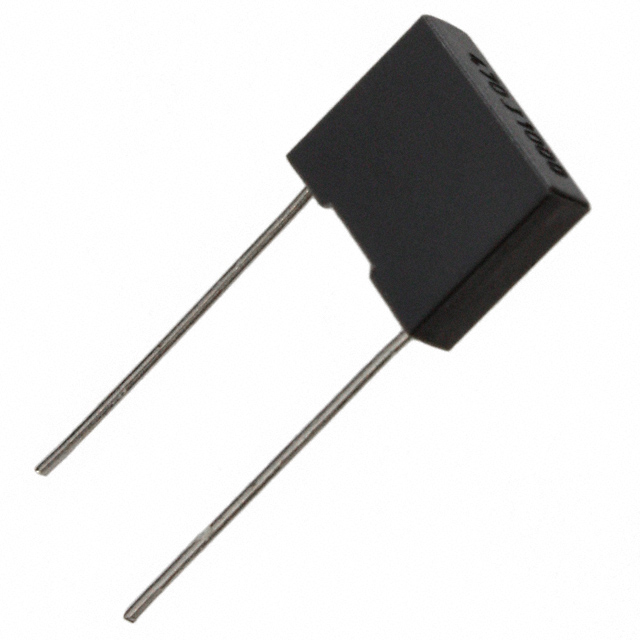

R75QD Series

Manufacturer: KEMET

Catalog

CAP, FILM, AEC-Q200, PP, 8200PF, 1KV, RAD ROHS COMPLIANT: YES

Part	Applications	Termination	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Package / Case	Voltage Rating - AC	Tolerance	Dielectric Material	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R75QD1820AA30J	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	1 kV	1 kVDC	0.472 in	12 mm	Through Hole	Radial	400 V	5 %	Polypropylene (PP) Metallized	0.295 in	7.5 mm	-55 C	105 ░C	AEC-Q200
KEMET R75QD1220Z330J	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	1 kV	1 kVDC		9.1 mm	Through Hole	Radial	400 V	5 %	Polypropylene (PP) Metallized	0.295 in	7.5 mm	-55 C	105 ░C	AEC-Q200	4 mm	0.394 in	0.157 "	10 mm	2200 pF	0.358 in
KEMET R75QD1470Z330J	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	1 kV	1 kVDC			Through Hole	Radial	400 V	5 %	Polypropylene (PP) Metallized	0.295 in	7.5 mm	-55 C	105 ░C	AEC-Q200	5 mm	0.394 in	0.197 "	10 mm	0.0047 µF	0.417 in	10.6 mm
