ELM611 Series

Catalog

OPTOISO 3.75KV OPEN COLL 5SOP

Part	Current - Output / Channel	Input Type	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Common Mode Transient Immunity (Min) [Min]	Voltage - Isolation	Mounting Type	Supplier Device Package	Propagation Delay tpLH / tpHL (Max) [Max]	Number of Channels [custom]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Output Type	Data Rate	Current - DC Forward (If) (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply

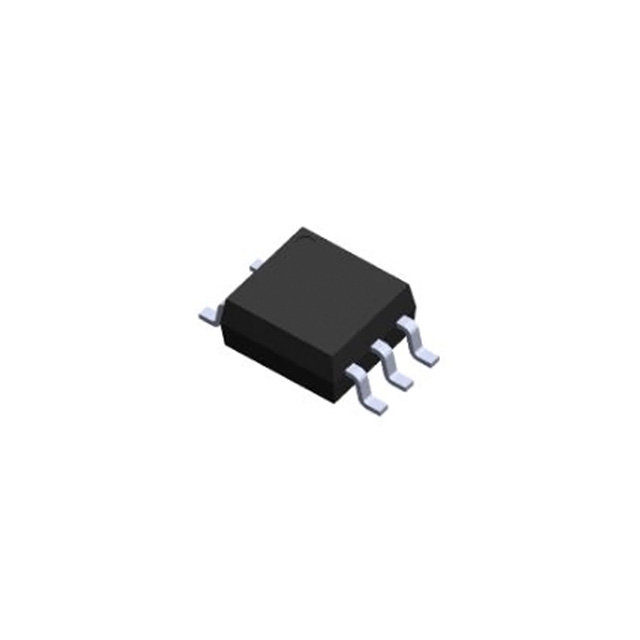

Everlight Electronics Co Ltd ELM611(TA)	50 mA	DC	1.45 V	6-SOIC	0.173 " 4.4 mm Width 5 Leads	20 kV/µs	3750 Vrms	Surface Mount	5-SOP	100 ns	1	1	0	Open Collector Schottky Clamped	10 Mbps	50 mA	10 ns	40 ns	85 °C	-40 C	7 V
Everlight Electronics Co Ltd ELM611(TA)-V	50 mA	DC	1.45 V	6-SOIC	0.173 " 4.4 mm Width 5 Leads	20 kV/µs	3750 Vrms	Surface Mount	5-SOP	100 ns	1	1	0	Open Collector Schottky Clamped	10 Mbps	50 mA	10 ns	40 ns	85 °C	-40 C	7 V
