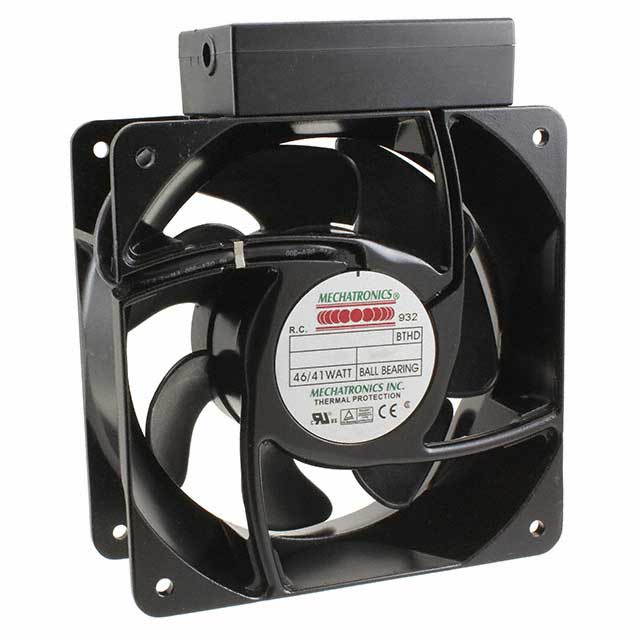

UF16F Series

Catalog

FAN AXIAL 160X62MM 115VAC

Part	Current Rating (Amps)	Material - Blade	Material - Frame	Features	Power (Watts)	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Weight [custom]	Weight [custom]	Bearing Type	Termination	Approval Agency	RPM	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Voltage - Rated	Width [y]	Air Flow	Air Flow	Termination
Mechatronics Fan Group UF16FC12-BTHR	0.34 A	Polybutylene Terephthalate (PBT)	Aluminum	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	41 W	179.3 Pa	0.72 in H2O	-40 C	70 °C	70 °C	-40 °C	56 dB	1.3 kg	2.8 lbs	Ball	2	CE cUL TUV UL	3400 RPM	160 mm	160 mm	Tubeaxial	115 VAC	62 mm	265 CFM	7.42 m³/min

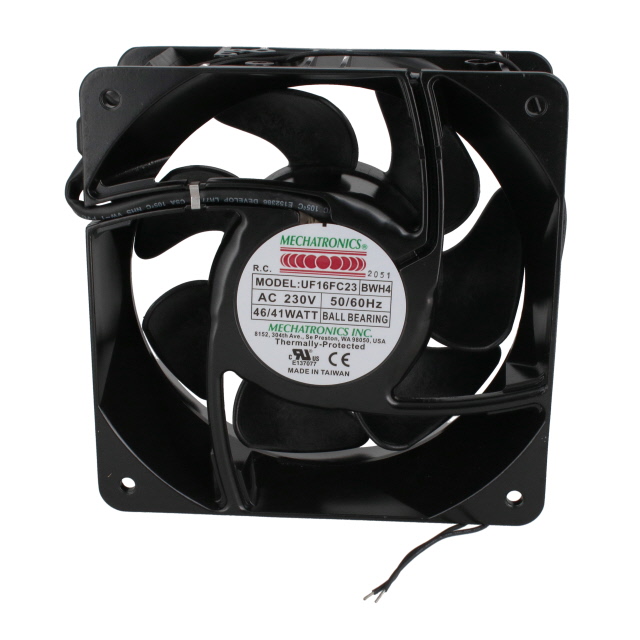

Mechatronics Fan Group UF16FC23-BWHR4	0.17 A	Polybutylene Terephthalate (PBT)	Aluminum	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	41 W	179.3 Pa	0.72 in H2O					56 dB			Ball			3400 RPM	160 mm	160 mm	Tubeaxial	230 VAC	62 mm	265 CFM	7.42 m³/min	2 Wire Leads
Mechatronics Fan Group UF16FC23-BTHR	0.17 A	Polybutylene Terephthalate (PBT)	Aluminum	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	41 W	179.3 Pa	0.72 in H2O	-40 C	70 °C	70 °C	-40 °C	56 dB	1.3 kg	2.8 lbs	Ball	2	CE cUL TUV UL	3400 RPM	160 mm	160 mm	Tubeaxial	230 VAC	62 mm	265 CFM	7.42 m³/min

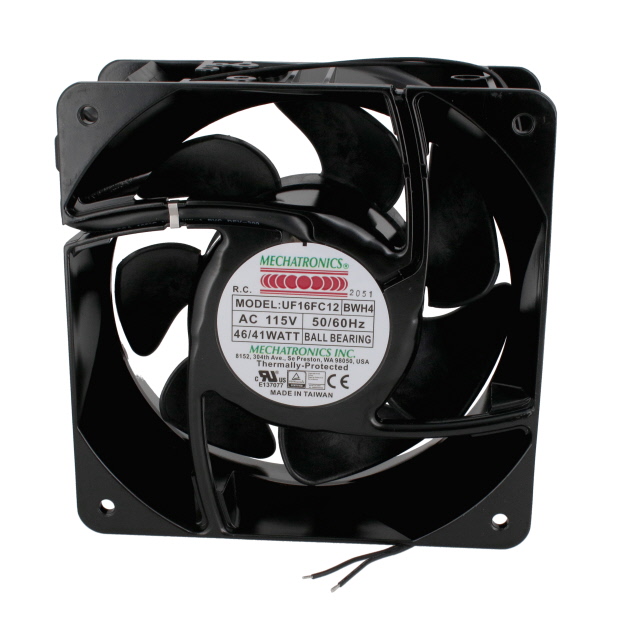

Mechatronics Fan Group UF16FC12-BWHR4	0.34 A	Polybutylene Terephthalate (PBT)	Aluminum	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	41 W	179.3 Pa	0.72 in H2O					56 dB			Ball			3400 RPM	160 mm	160 mm	Tubeaxial	115 VAC	62 mm	265 CFM	7.42 m³/min	2 Wire Leads
