TAS5414B-Q1 Series

Automotive, 28-W, 4-ch, 6- to 24-V analog SE in Class-D audio amplifier w/ I2C diag, load dump, PBTL

Catalog

Automotive, 28-W, 4-ch, 6- to 24-V analog SE in Class-D audio amplifier w/ I2C diag, load dump, PBTL

Part	Supplier Device Package	Features	Type	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load	Output Type	Qualification	Mounting Type	Grade	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Supplied Contents	Board Type	Max Output Power x Channels @ Load	Package / Case
Texas Instruments TAS5414CTPHDR	64-HTQFP (14x14)	Depop I2C Mute Short-Circuit and Thermal Protection Shutdown	Class D	4 23 W	2 150 W	4-Channel (Quad)	AEC-Q100	Surface Mount	Automotive	24 V	6 V	64-TQFP Exposed Pad	105 °C	-40 °C

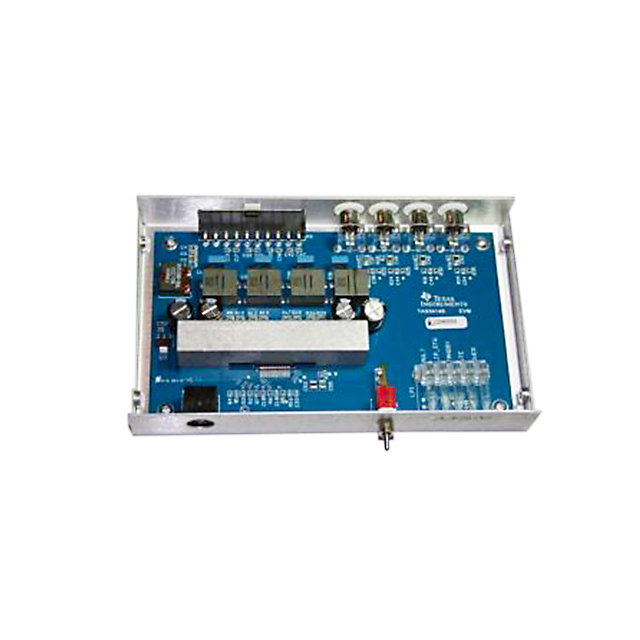

Texas Instruments TAS5414CQ1PHDEVM				4 23 W	2 150 W	4-Channel (Quad)				24 V	6 V				TAS5414C	Board(s)	Fully Populated
Texas Instruments TAS5414ATDKDRMQ1	36-HSSOP	Depop I2C Mute Short-Circuit and Thermal Protection Shutdown	Class D			4-Channel (Quad)	AEC-Q100	Surface Mount	Automotive	22 V	8 V	36-BSSOP Exposed Pad	105 °C	-40 °C				58 W 116 W	0.433 in 11 mm
Texas Instruments TAS5414ATPHDMQ1	64-HTQFP (14x14)	Depop I2C Mute Short-Circuit and Thermal Protection Shutdown	Class D			4-Channel (Quad)	AEC-Q100	Surface Mount	Automotive	22 V	8 V	64-TQFP Exposed Pad	105 °C	-40 °C				58 W 116 W
Texas Instruments TAS5414CTPHDRQ1	64-HTQFP (14x14)	Depop I2C Mute Short-Circuit and Thermal Protection Shutdown	Class D	4 23 W	2 150 W	4-Channel (Quad)	AEC-Q100	Surface Mount	Automotive	24 V	6 V	64-TQFP Exposed Pad	105 °C	-40 °C
Texas Instruments TAS5414BTPHDRQ1	64-HTQFP (14x14)	Depop I2C Mute Short-Circuit and Thermal Protection Shutdown	Class D			4-Channel (Quad)	AEC-Q100	Surface Mount	Automotive	24 V	6 V	64-TQFP Exposed Pad	105 °C	-40 °C				2 Ohm 2 Channels 4 Ohm 4 Channels 79 W 150 W
Texas Instruments TAS5414ATPHDRMQ1	64-HTQFP (14x14)	Depop I2C Mute Short-Circuit and Thermal Protection Shutdown	Class D			4-Channel (Quad)	AEC-Q100	Surface Mount	Automotive	22 V	8 V	64-TQFP Exposed Pad	105 °C	-40 °C				58 W 116 W
Texas Instruments TAS5414ATDKDQ1G4	36-HSSOP	Depop I2C Mute Short-Circuit and Thermal Protection Shutdown	Class D			4-Channel (Quad)	AEC-Q100	Surface Mount	Automotive	22 V	8 V	36-BSSOP Exposed Pad	105 °C	-40 °C				58 W 116 W	0.433 in 11 mm
Texas Instruments TAS5414TDKDRMQ1	36-HSSOP	Depop I2C Mute Short-Circuit and Thermal Protection Shutdown	Class D			4-Channel (Quad)	AEC-Q100	Surface Mount	Automotive	22 V	8 V	36-BSSOP Exposed Pad	105 °C	-40 °C				58 W 116 W	0.433 in 11 mm
Texas Instruments TAS5414ATPHDRMPA	64-HTQFP (14x14)		Class D			4-Channel (Quad)		Surface Mount		22 V	8 V	64-TQFP Exposed Pad	105 °C	-40 °C				58 W 116 W

Catalog

Automotive, 28-W, 4-ch, 6- to 24-V analog SE in Class-D audio amplifier w/ I2C diag, load dump, PBTL

Key Features

• TAS5414-Q1 – Single-Ended InputTAS5424-Q1 – Differential InputFour-Channel Digital Power AmplifierFour Analog Inputs, Four BTL Power OutputsTypical Output Power at 10% THD+N28 W/Ch Into 4 Ω at 14.4 V50 W/Ch Into 2 Ω at 14.4 V79 W/Ch Into 4 Ω at 24 V150 W/Ch Into 2 Ω at 24 V (PBTL)Channels Can Be Paralleled (PBTL) for High Current ApplicationsTHD+N < 0.02%, 1 kHz, 1 W Into 4 ΩPatented Pop- and Click-Reduction TechnologySoft Muting With Gain Ramp ControlCommon-Mode RampingPatented AM Interference AvoidancePatented Cycle-by-Cycle Current Limit75-dB PSRRFour-Address I2C Serial Interface forDevice Configuration and ControlChannel Gains: 12-dB, 20-dB, 26-dB, 32-dBLoad Diagnostic Functions:Output Open and Shorted LoadOutput-to-Power and -to-Ground ShortsPatented Tweeter DetectionProtection and Monitoring Functions:Short-Circuit ProtectionLoad-Dump Protection to 50 VFortuitous Open Ground and Power TolerantPatented Output DC Level Detection While Music PlayingOver-temperature ProtectionOver- and Undervoltage ConditionsClip Detection36-Pin PSOP3 (DKD) Power SOP Package With Heat Slug Upfor the TAS5414-Q144-Pin PSOP3 (DKD) Power SOP Package With Heat Slug Upfor the TAS5424-Q144-Pin PSOP3 (DKE) Low-Standoff Power SOP Package WithHeat Slug Up for the TAS5424-Q164-Pin QFP (PHD) Power Package With Heat Slug Up for TAS5414-Q1Designed for Automotive EMC RequirementsQualified According to AEC-Q100ISO9000:2002 TS16949 Certified–40°C to 105°C Ambient Temperature RangeAPPLICATIONSOEM/Retail Head Units and Amplifier Modules Where Feature Densitiesand System Configurations Require Reduction in Heat From the Audio PowerAmplifierTAS5414-Q1 – Single-Ended InputTAS5424-Q1 – Differential InputFour-Channel Digital Power AmplifierFour Analog Inputs, Four BTL Power OutputsTypical Output Power at 10% THD+N28 W/Ch Into 4 Ω at 14.4 V50 W/Ch Into 2 Ω at 14.4 V79 W/Ch Into 4 Ω at 24 V150 W/Ch Into 2 Ω at 24 V (PBTL)Channels Can Be Paralleled (PBTL) for High Current ApplicationsTHD+N < 0.02%, 1 kHz, 1 W Into 4 ΩPatented Pop- and Click-Reduction TechnologySoft Muting With Gain Ramp ControlCommon-Mode RampingPatented AM Interference AvoidancePatented Cycle-by-Cycle Current Limit75-dB PSRRFour-Address I2C Serial Interface forDevice Configuration and ControlChannel Gains: 12-dB, 20-dB, 26-dB, 32-dBLoad Diagnostic Functions:Output Open and Shorted LoadOutput-to-Power and -to-Ground ShortsPatented Tweeter DetectionProtection and Monitoring Functions:Short-Circuit ProtectionLoad-Dump Protection to 50 VFortuitous Open Ground and Power TolerantPatented Output DC Level Detection While Music PlayingOver-temperature ProtectionOver- and Undervoltage ConditionsClip Detection36-Pin PSOP3 (DKD) Power SOP Package With Heat Slug Upfor the TAS5414-Q144-Pin PSOP3 (DKD) Power SOP Package With Heat Slug Upfor the TAS5424-Q144-Pin PSOP3 (DKE) Low-Standoff Power SOP Package WithHeat Slug Up for the TAS5424-Q164-Pin QFP (PHD) Power Package With Heat Slug Up for TAS5414-Q1Designed for Automotive EMC RequirementsQualified According to AEC-Q100ISO9000:2002 TS16949 Certified–40°C to 105°C Ambient Temperature RangeAPPLICATIONSOEM/Retail Head Units and Amplifier Modules Where Feature Densitiesand System Configurations Require Reduction in Heat From the Audio PowerAmplifier

Description

The TAS5414A and TAS5424A are four-channel digital audio amplifiers designed for use in automotive head units and external amplifier modules. The TAS5414A and TAS5424A provide four channels at 23 W continuously into 4 Ω at less than 1% THD+N from a 14.4-V supply. Each channel can also deliver 38 W into 2 Ω at 1% THD+N. The TAS5414A uses single-ended analog inputs, while the TAS5424A employs differential inputs for increased immunity to common-mode system noise. The digital PWM topology of the TAS5414A and TAS5424A provides dramatic improvements in efficiency over traditional linear amplifier solutions. This reduces the power dissipated by the amplifier by a factor of ten under typical music playback conditions. The TAS5414A and TAS5424A incorporate all the functionality needed to perform in the demanding OEM applications area. They have built-in load diagnostic functions for detecting and diagnosing misconnected outputs to help to reduce test time during the manufacturing process. The TAS5414A and TAS5424A are four-channel digital audio amplifiers designed for use in automotive head units and external amplifier modules. The TAS5414A and TAS5424A provide four channels at 23 W continuously into 4 Ω at less than 1% THD+N from a 14.4-V supply. Each channel can also deliver 38 W into 2 Ω at 1% THD+N. The TAS5414A uses single-ended analog inputs, while the TAS5424A employs differential inputs for increased immunity to common-mode system noise. The digital PWM topology of the TAS5414A and TAS5424A provides dramatic improvements in efficiency over traditional linear amplifier solutions. This reduces the power dissipated by the amplifier by a factor of ten under typical music playback conditions. The TAS5414A and TAS5424A incorporate all the functionality needed to perform in the demanding OEM applications area. They have built-in load diagnostic functions for detecting and diagnosing misconnected outputs to help to reduce test time during the manufacturing process.
