7404WS Series
Manufacturer: Belden Inc.
Beta
⌘K

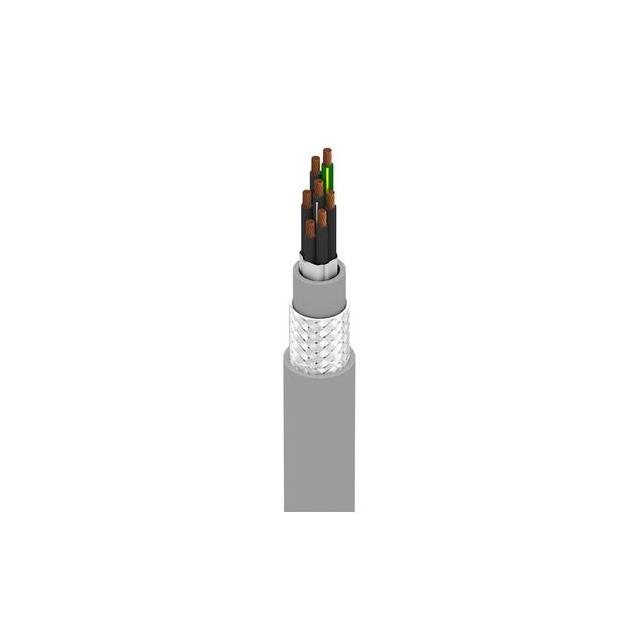

CABLE 7COND 20AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Shield Type | Wire Gauge | Ratings | Conductor Material | Features | Voltage | Jacket (Insulation) Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 85 % | Chrome | 19 | 32 AWG | 0.409 " | 10.39 mm | Multi-Conductor | Braid | 20 AWG | UL Style 20327 | Copper Bare | Oil Resistant UV Resistant | 300 VDC | Thermoplastic Elastomer (TPE) | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | 7 | ||
Belden Inc. | Copper Tinned | 85 % | Chrome | 19 | 32 AWG | 0.409 " | 10.39 mm | Multi-Conductor | Braid | 20 AWG | UL Style 20327 | Copper Bare | Oil Resistant UV Resistant | 300 VDC | Thermoplastic Elastomer (TPE) | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | 7 | 76.2 m | 250 ft |
Belden Inc. | Copper Tinned | 85 % | Chrome | 19 | 32 AWG | 0.409 " | 10.39 mm | Multi-Conductor | Braid | 20 AWG | UL Style 20327 | Copper Bare | Oil Resistant UV Resistant | 300 VDC | Thermoplastic Elastomer (TPE) | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | 7 | 304.8 m | 1000 ft |
