L777RRB25 Series

Catalog

CONN D-SUB HOUSING PLUG 25POS

Part	Note	Color	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Finish Thickness	Shell Finish Thickness	Flange Feature	Contact Type	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Mounting Type	Number of Rows [custom]	Connector Style	Features	Number of Positions

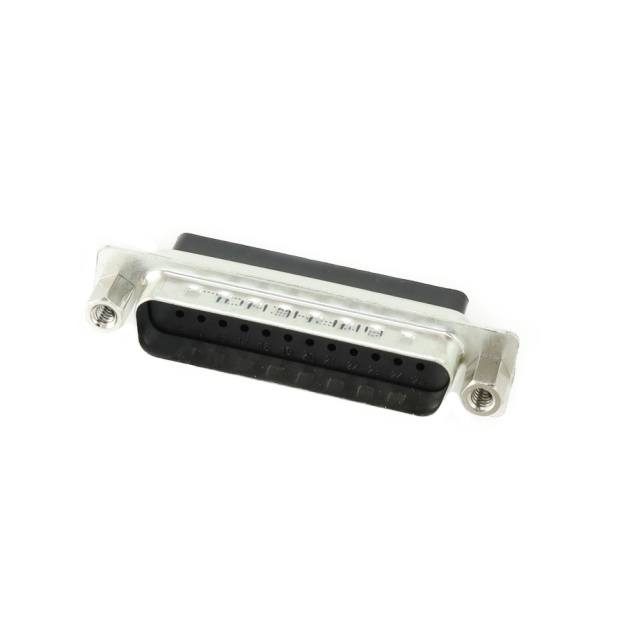

Amphenol ICC (Commercial Products) L777RRB25PVF	Contacts Not Included	Black	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	Plug for Male Contacts	2.54 µm	100 µin	4-40 Mating Side Female Screwlock	Signal	B DB	3	Free Hanging (In-Line)	2	D-Sub	Grounding Indents	25

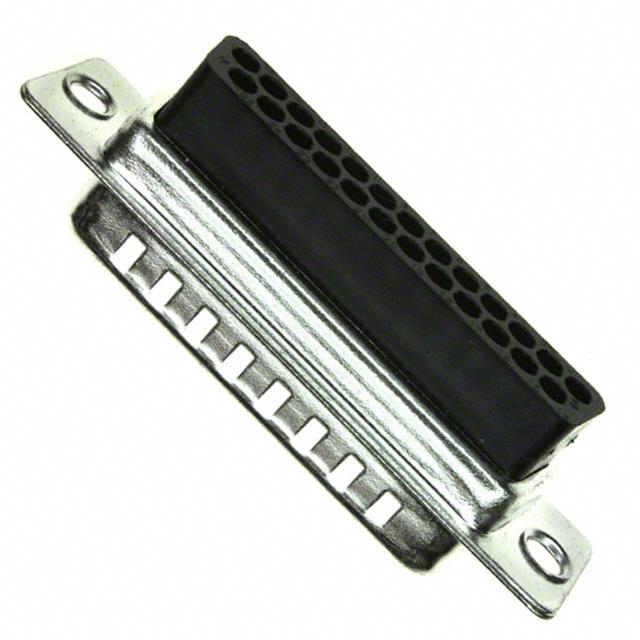

Amphenol ICC (Commercial Products) L777-RR-B-25-P	Contacts Not Included	Black	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	Plug for Male Contacts	2.54 µm	100 µin	Housing/Shell (Unthreaded)	Signal	B DB	3	Free Hanging (In-Line)	2	D-Sub	Grounding Indents	25
Amphenol ICC (Commercial Products) L777RRB25PVFM	Contacts Not Included	Black	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	Plug for Male Contacts	2.54 µm	100 µin	Mating Side Female Screwlock (M3)	Signal	B DB	3	Free Hanging (In-Line)	2	D-Sub	Grounding Indents	25
