NHD-2.8 Series

Catalog

LCD OLED GRAPHIC 256 X 64 BLUE

Part	Dot Pitch [x]	Dot Pitch [y]	Dot Size [custom]	Dot Size [custom]	Background Color	Interface	Dot Pixels [x]	Dot Pixels [y]	Viewing Area [x]	Viewing Area [y]	Controller Type	Display Type	Graphics Color	Diagonal Screen Size	Diagonal Screen Size	Display Mode	Backlight	Touchscreen

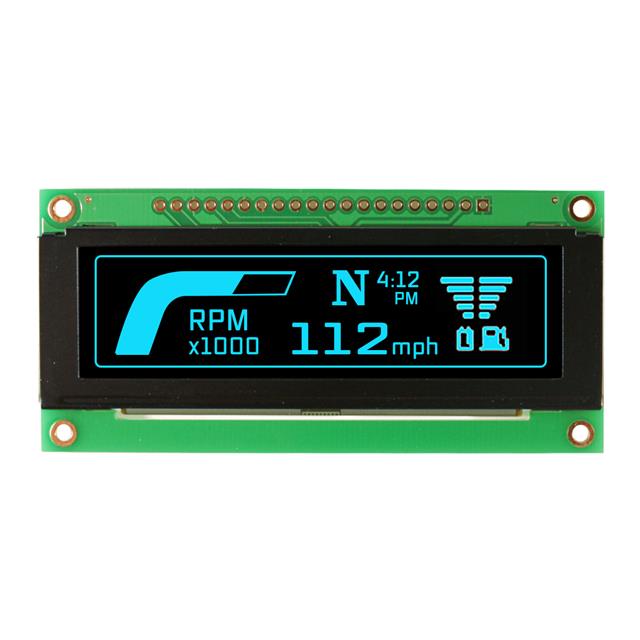

Newhaven Display Intl NHD-2.8-25664UCB2	0.27 mm	0.27 mm	0.25 mm	0.25 mm	Black	Parallel/Serial	256	64	72 mm	20 mm	SSD1322	OLED - Passive Matrix	Blue	2.8 in	71.12 mm

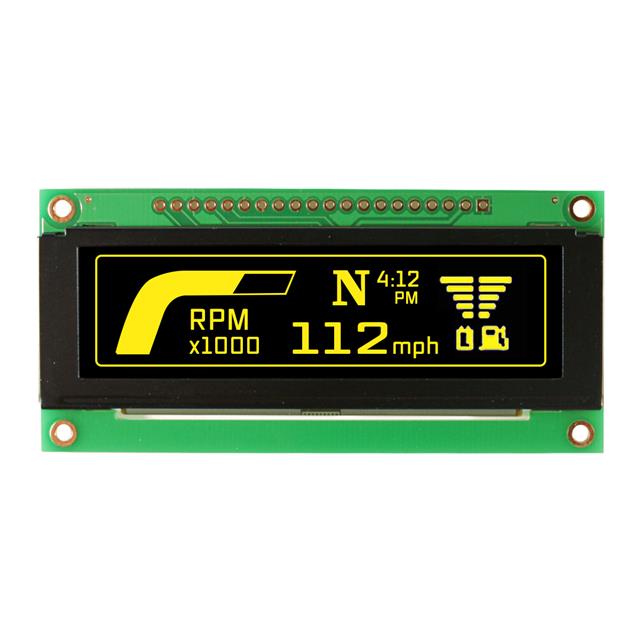

Newhaven Display Intl NHD-2.8-25664UCY2	0.27 mm	0.27 mm	0.25 mm	0.25 mm	Black	8-Bit Parallel SPI	256	64	72 mm	20 mm	SSD1322	OLED - Passive Matrix	Yellow	2.8 in	71.12 mm

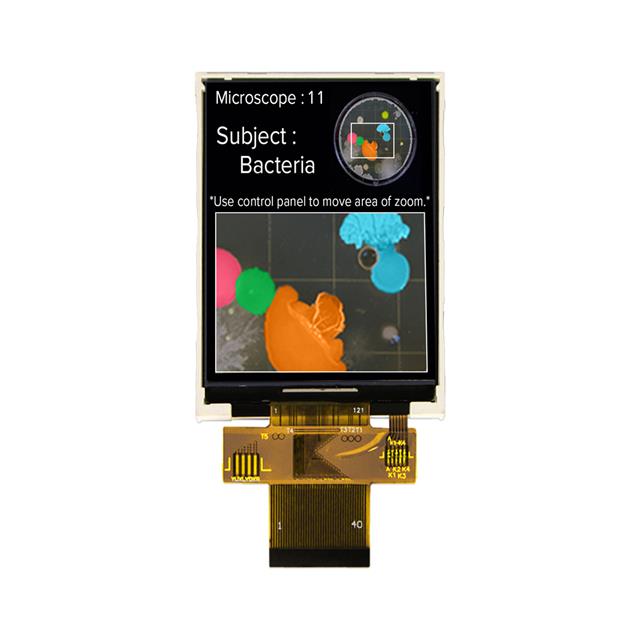

Newhaven Display Intl NHD-2.8-240320AF-CSXP-F						16-Bit 8-Bit Parallel	240	320			ST7789VI	IPS (In-Plane Switching) TFT - Color	Blue Green Red	2.8 in	71.12 mm	Transmissive	LED - White

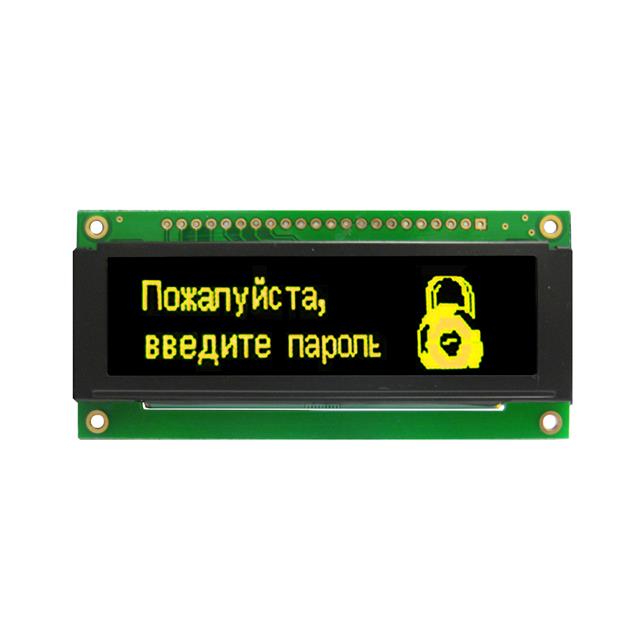

Newhaven Display Intl NHD-2.8-25664UMY3					Black	8-Bit Parallel SPI	256	64	72 mm	20 mm	SSD1322	OLED - Passive Matrix	Yellow	2.8 in	71.12 mm

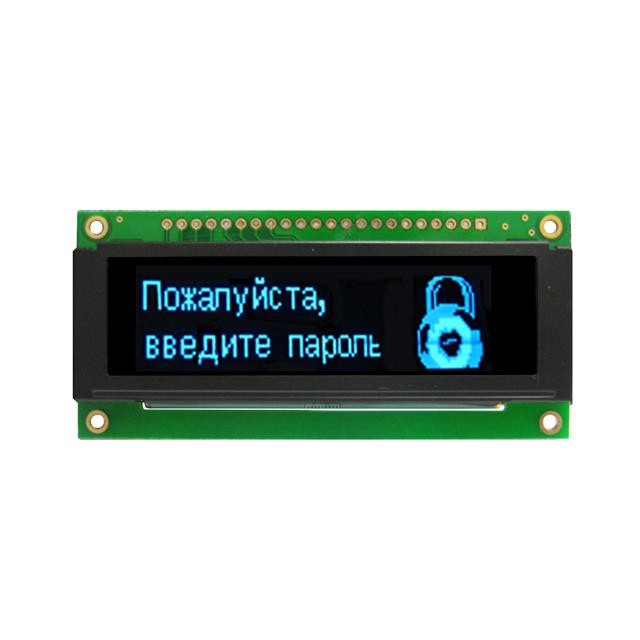

Newhaven Display Intl NHD-2.8-25664UMB3					Black	8-Bit Parallel SPI	256	64	72 mm	20 mm	SSD1322	OLED - Passive Matrix	Blue	2.8 in	71.12 mm

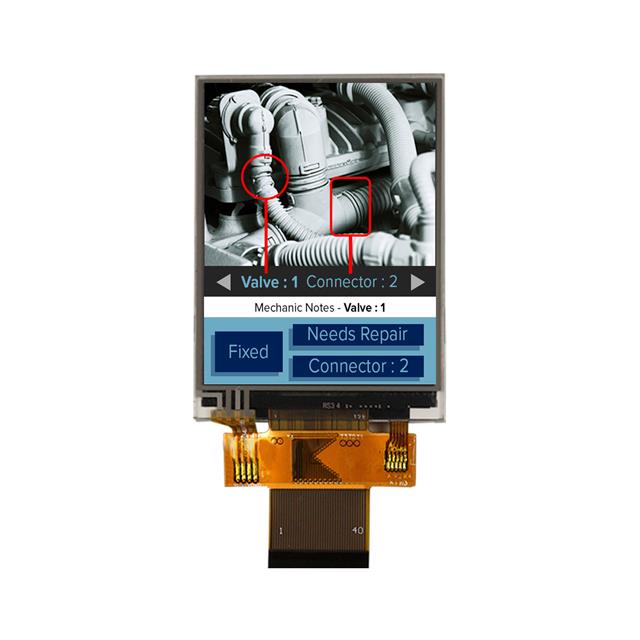

Newhaven Display Intl NHD-2.8-240320AF-CSXP-FT						16-Bit 8-Bit Parallel	240	320			ST7789VI	IPS (In-Plane Switching) TFT - Color	Blue Green Red	2.8 in	71.12 mm	Transmissive	LED - White	Resistive

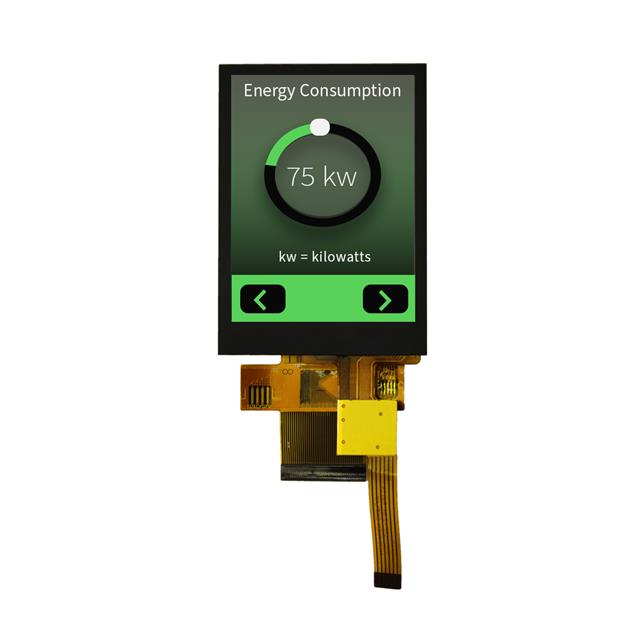

Newhaven Display Intl NHD-2.8-240320AF-CSXP-FCTP						16-Bit 8-Bit Parallel	320	240			ST7789VI	IPS (In-Plane Switching) TFT - Color	Blue Green Red	2.8 in	71.12 mm	Transmissive	LED - White	Capacitive
