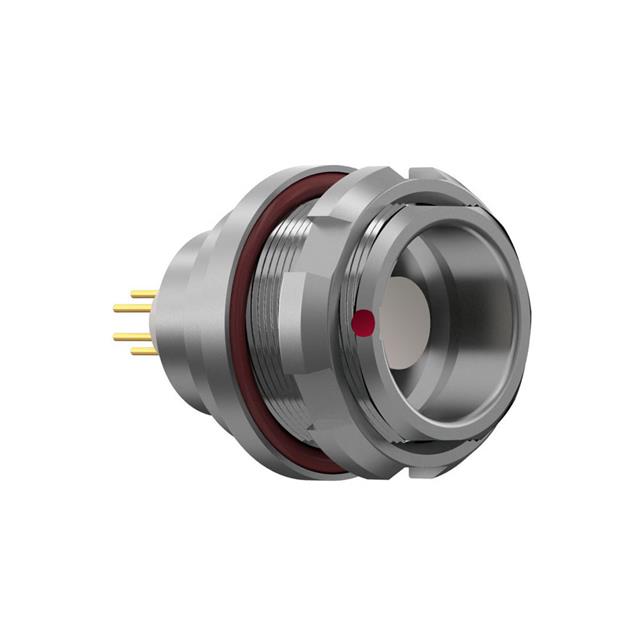

G30KAC-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 9P GOLD SLDR CUP
| Part | Mounting Feature | Shielding | Shell Size - Insert [custom] | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Type | Orientation | Connector Type | Fastening Type | Features | Contact Finish - Mating | Shell Material | Primary Material | Color | Insert Material | Shell Finish | Number of Positions | Current Rating (Amps) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bulkhead - Front Side Nut | Shielded | 0 | IP68 - Dust Tight Waterproof | 120 °C | -40 C | Brass | Panel Mount | A | Receptacle Female Sockets | Push-Pull | Ground | Gold | Brass | Metal | Silver | Polyetheretherketone (PEEK) | Chrome over Nickel | 9 | 4 A | Industrial Medical Military Testing Equipment & Measurement | |
Bulkhead - Front Side Nut | Shielded | 0 | IP68 - Dust Tight Waterproof | 120 °C | -40 C | Brass | Panel Mount | A | Receptacle Female Sockets | Push-Pull | Ground | Gold | Brass | Metal | Silver | Polyetheretherketone (PEEK) | Chrome over Nickel | 7 | 4 A | Industrial Medical Military Testing Equipment & Measurement | |
Bulkhead - Front Side Nut | Shielded | 0 | IP68 - Dust Tight Waterproof | 120 °C | -40 C | Brass | Panel Mount | A | Receptacle Female Sockets | Push-Pull | Ground | Gold | Brass | Metal | Silver | Polyetheretherketone (PEEK) | Chrome over Nickel | 10 | 4 A | Industrial Medical Military Testing Equipment & Measurement | |
Bulkhead - Front Side Nut | Shielded | 0 | IP68 - Dust Tight Waterproof | 120 °C | -40 C | Brass | Panel Mount | A | Receptacle Female Sockets | Push-Pull | Ground | Gold | Brass | Metal | Silver | Polyetheretherketone (PEEK) | Chrome over Nickel | 5 | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | |
Bulkhead - Front Side Nut | Shielded | 0 | IP68 - Dust Tight Waterproof | 120 °C | -40 C | Brass | Panel Mount | A | Receptacle Female Sockets | Push-Pull | Ground | Gold | Brass | Metal | Silver | Polyetheretherketone (PEEK) | Chrome over Nickel | 6 | 4 A | Industrial Medical Military Testing Equipment & Measurement | |
Bulkhead - Front Side Nut | Shielded | 0 | IP68 - Dust Tight Waterproof | 120 °C | -40 C | Brass | Panel Mount | A | Receptacle Female Sockets | Push-Pull | Ground | Gold | Brass | Metal | Silver | Polyetheretherketone (PEEK) | Chrome over Nickel | 4 | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | |
Bulkhead - Front Side Nut | Shielded | 0 | IP68 - Dust Tight Waterproof | 120 °C | -40 C | Brass | Panel Mount | A | Receptacle Female Sockets | Push-Pull | Ground | Gold | Brass | Metal | Silver | Polyetheretherketone (PEEK) | Chrome over Nickel | 2 | 7.5 A | Industrial Medical Military Testing Equipment & Measurement |
