BH16NM Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB SPST 1A 125V
| Part | Electrical Life | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Voltage Rating - DC | Circuit | Termination Style | Actuator Type | Actuator Marking | Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Ingress Protection | Switch Function | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

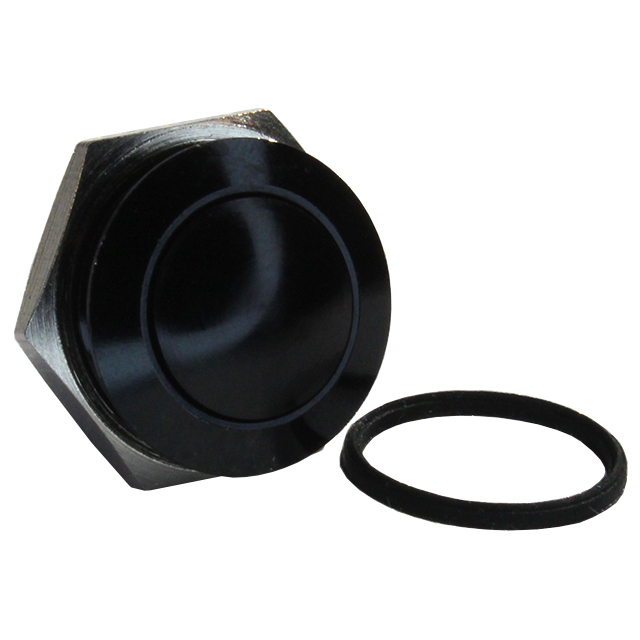

 CIT Relay and Switch | 50000 Cycles | 16 mm | 1 A 2 A | 36 VDC | SPST | Screw Terminal | Button Round | No Marking | Anti-Vandal | 125 V | 55 °C | -25 °C | Black | IP67 - Dust Tight Waterproof | Off-Mom | Panel Mount Front | |

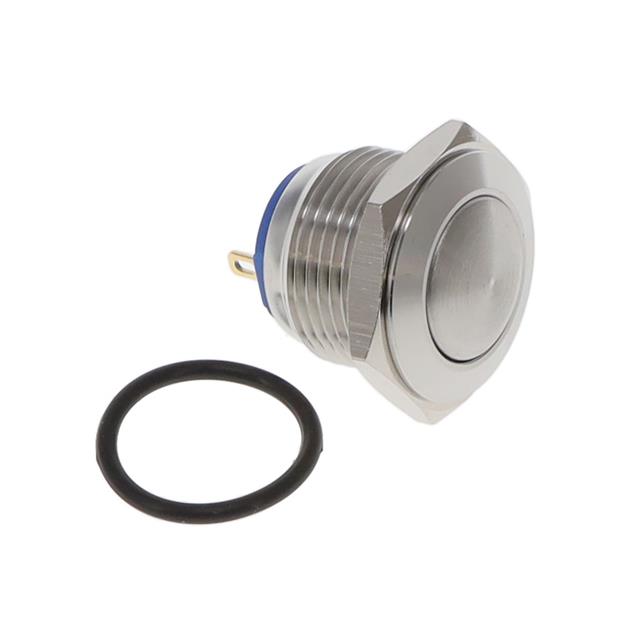

 CIT Relay and Switch | 50000 Cycles | 16 mm | 1 A 2 A | 36 VDC | SPST | Solder Lug | Button Round | No Marking | Anti-Vandal | 125 V | 55 °C | -25 °C | Silver | IP67 - Dust Tight Waterproof | Off-Mom | Panel Mount Front | Stainless Steel |
