a6k Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

ENCODING SWITCH; DEC/BCD; POS: 10; THT; RCONT MAX: 200MΩ; 1.96NCM

Part	Length [x]	Length [x]	Electrical Life	Circuit	Current Rating (Amps)	Pitch	Pitch	Pitch	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Actuator Type	Mounting Type	Voltage Rating	Actuator Level	Height Above Board [z]	Height Above Board [z]	Contact Finish	Pitch

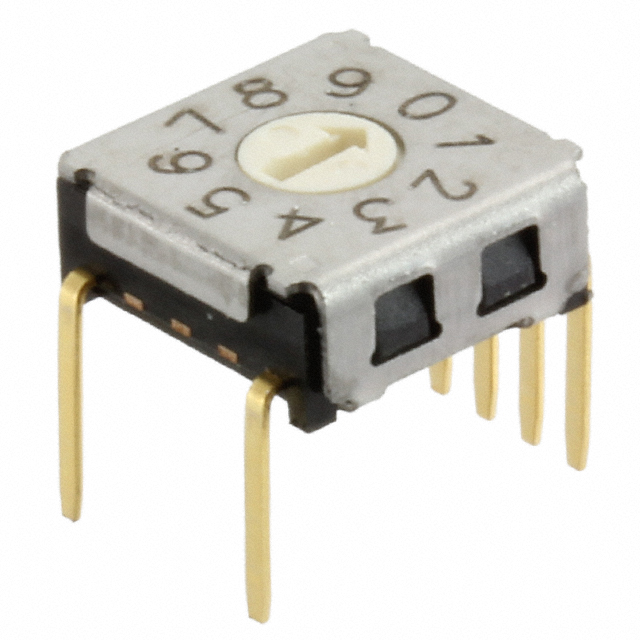

Omron Electronics Inc-EMC Div A6K-104RF	7.2 mm	0.283 in	20000 Steps	BCD	25 mA	0.05 "	1.27 mm	Half	PC Pin	80 °C	-30 ░C	10	Rotary for Tool	Through Hole	24 VDC	Flush Recessed	0.118 in	3 mm	Gold

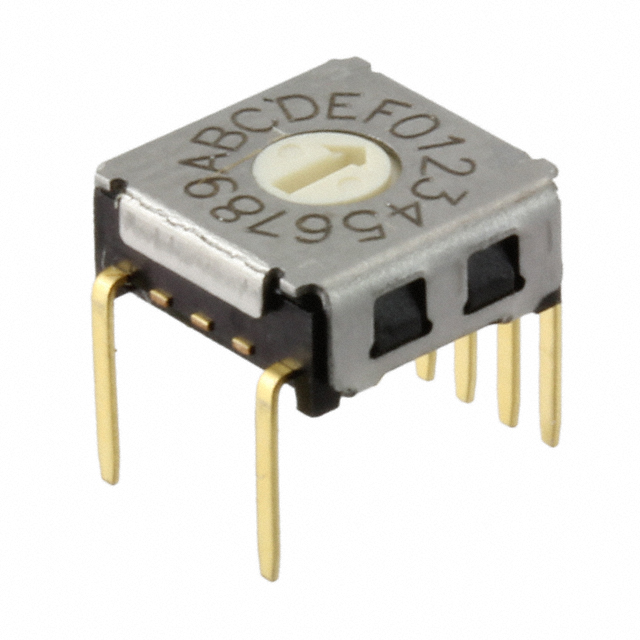

Omron Electronics Inc-EMC Div A6K-164RF	7.2 mm	0.283 in	20000 Steps	Hexadecimal	25 mA	0.05 "	1.27 mm	Half	PC Pin	80 °C	-30 ░C	16	Rotary for Tool	Through Hole	24 VDC	Flush Recessed	0.118 in	3 mm	Gold

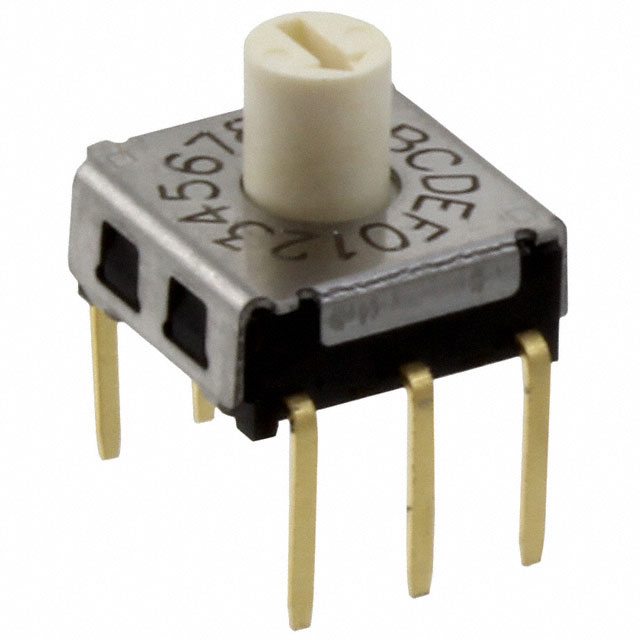

Omron Electronics Inc-EMC Div A6K-162RS	7.2 mm	0.283 in	20000 Steps	Hexadecimal	25 mA		2.54 mm		PC Pin	80 °C	-30 ░C	16	Rotary with Shaft	Through Hole	24 VDC	Raised	0.236 in	6 mm	Gold	0.1 "

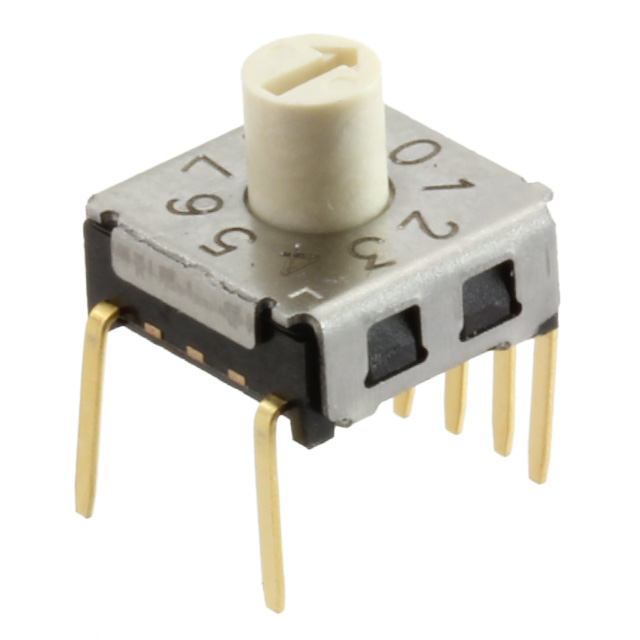

Omron Electronics Inc-EMC Div A6K-104RS	7.2 mm	0.283 in	20000 Steps	BCD	25 mA	0.05 "	1.27 mm	Half	PC Pin	80 °C	-30 ░C	10	Rotary with Shaft	Through Hole	24 VDC	Raised	0.236 in	6 mm	Gold
Omron Electronics Inc-EMC Div A6KV-162RS				Hexadecimal	25 mA		2.54 mm		PC Pin	80 °C	-30 ░C	16	Rotary with Shaft	Right Angle Through Hole	24 VDC	Raised	0.303 in	7.7 mm	Gold	0.1 "

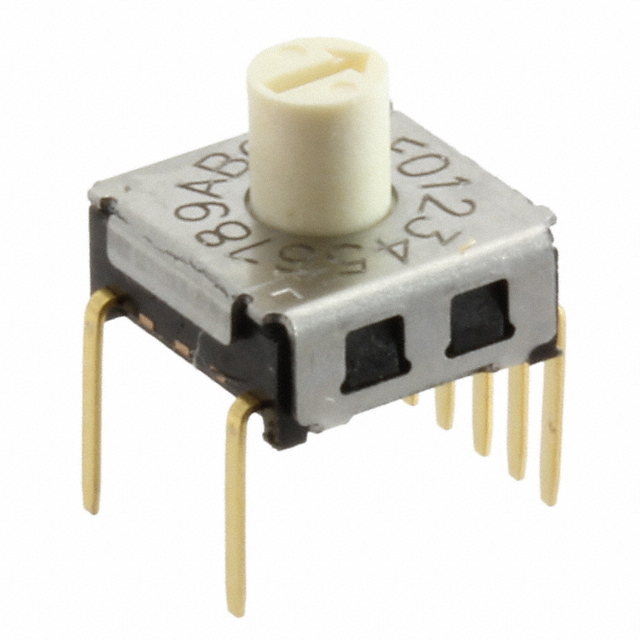

Omron Electronics Inc-EMC Div A6K-164RS	7.2 mm	0.283 in	20000 Steps	Hexadecimal	25 mA	0.05 "	1.27 mm	Half	PC Pin	80 °C	-30 ░C	16	Rotary with Shaft	Through Hole	24 VDC	Raised	0.236 in	6 mm	Gold
Omron Electronics Inc-EMC Div A6KV-164RF	7.2 mm	0.283 in	20000 Steps	Hexadecimal	25 mA	0.05 "	1.27 mm	Half	PC Pin	80 °C	-30 ░C	16	Rotary for Tool	Right Angle Through Hole	24 VDC	Flush Recessed	0.303 in	7.7 mm	Gold
Omron Electronics Inc-EMC Div A6K-102RF	7.2 mm	0.283 in	20000 Steps	BCD	25 mA		2.54 mm		PC Pin	80 °C	-30 ░C	10	Rotary for Tool	Through Hole	24 VDC	Flush Recessed	0.118 in	3 mm	Gold	0.1 "
Omron Electronics Inc-EMC Div A6K-102RS	7.2 mm	0.283 in	20000 Steps	BCD	25 mA		2.54 mm		PC Pin	80 °C	-30 ░C	10	Rotary with Shaft	Through Hole	24 VDC	Raised	0.236 in	6 mm	Gold	0.1 "
