22_H4-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

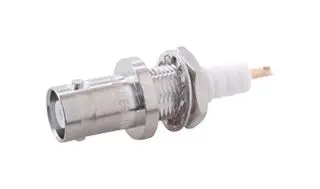

RF COAX CONN, H4, BULKHEAD JACK, 50 OHM ROHS COMPLIANT: YES
| Part | Dielectric Material | Body Material | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Fastening Type | Frequency - Max [Max] | Shield Termination | Center Contact Material | Mounting Type | Connector Type | Number of Ports | Contact Termination | Housing Color | Connector Style | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | White Bronze | Gold | -65 ░C | 165 °C | Bulkhead - Rear Side Nut | Bayonet Lock | 300 MHz | Solder | Beryllium Copper | Panel Mount | Female Socket Jack | 1 | Solder Cup | Silver | H4 | 50 Ohms |
 Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Silver | Gold | -65 ░C | 165 °C | Bulkhead - Rear Side Nut | Bayonet Lock | 300 MHz | Solder | Beryllium Copper | Panel Mount | Female Socket Jack | 1 | Solder | Silver | H4 | 50 Ohms |
