TPS22945 Series
Manufacturer: Texas Instruments
Beta
⌘K
5.5-V, 0.1-A, 500-MΩ, LOAD SWITCH WITH CURRENT LIMIT, ACTIVE HIGH ENABLE, AND BLANKING
| Part | Output Type | Mounting Type | Rds On (Typ) | Switch Type | Package / Case | Supplier Device Package | Number of Outputs | Voltage - Supply (Vcc/Vdd) | Voltage - Load [Max] | Voltage - Load [Min] | Input Type | Features | Interface | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Ratio - Input:Output [custom] | Fault Protection | Current - Output (Max) [Max] | Function | Supplied Contents | Type | Utilized IC / Part | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | P-Channel | Surface Mount | 400 mOhm | General Purpose | 5-TSSOP SC-70-5 SOT-353 | SC-70-5 | 1 | 5.5 V | 1.62 V | Non-Inverting | Auto Restart | On/Off | High Side | -40 °C | 125 ¯C | 1:1 | Current Limiting (Fixed) Over Temperature UVLO | 100 mA | ||||||
Texas Instruments | P-Channel | Surface Mount | 400 mOhm | General Purpose | 5-TSSOP SC-70-5 SOT-353 | SC-70-5 | 1 | 5.5 V | 1.62 V | Non-Inverting | Auto Restart | On/Off | High Side | -40 °C | 125 ¯C | 1:1 | Current Limiting (Fixed) Over Temperature UVLO | 100 mA | ||||||

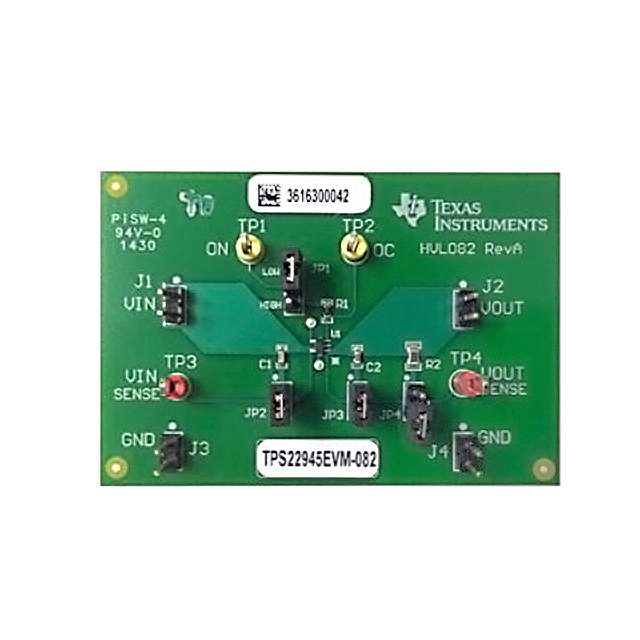

 Texas Instruments | Power Distribution Switch (Load Switch) | Board(s) | Power Management | TPS22945 |
