D3W3P36 Series

Catalog

CONN D-SUB PLUG 3POS R/A SLDR

Part	Contact Type	Contact Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Dielectric Material	Termination	Material Flammability Rating	Shell Material, Finish	Color	Current Rating (Amps)	Contact Finish	Features	Mounting Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Backset Spacing	Backset Spacing	Number of Positions

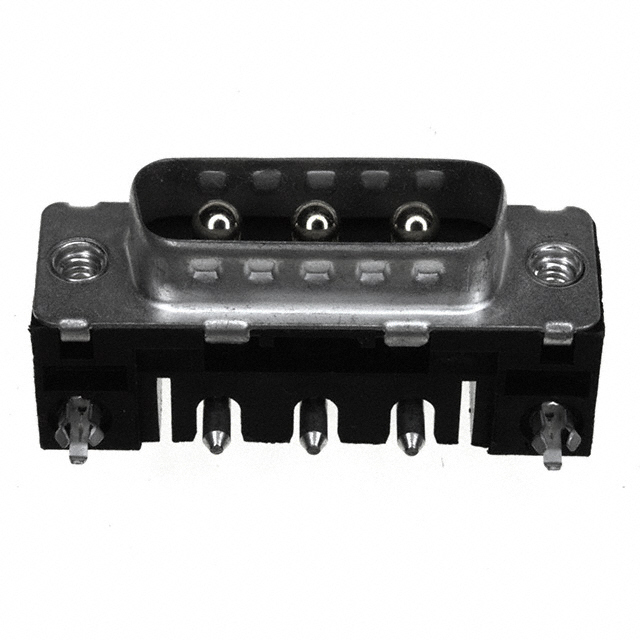

Amphenol ICC (FCI) D3W3P36A6GX08LF	Power	Brass	Combo D-Sub	-55 °C	125 °C	300 VDC	Thermoplastic	Solder	UL94 V-0	Nickel Plated Steel	Black	30 A	Gold	Board Lock Grounding Indents	Through Hole Right Angle	Housing/Shell (4-40)	0.76 Ám	30 Áin	1	Male Pins Plug	2 (DA A)	3W3	9.5 mm	0.374 in	3

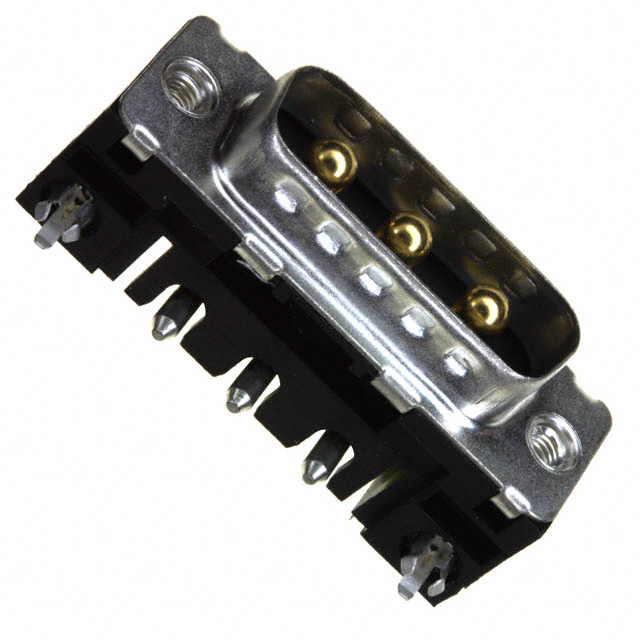

Amphenol ICC (FCI) D3W3P36A6GL08LF	Power	Brass	Combo D-Sub	-55 °C	125 °C	300 VDC	Thermoplastic	Solder	UL94 V-0	Nickel Plated Steel	Black	30 A	Gold	Board Lock Grounding Indents	Through Hole Right Angle	Housing/Shell (M3)	0.76 Ám	30 Áin	1	Male Pins Plug	2 (DA A)	3W3	9.5 mm	0.374 in	3
Amphenol ICC (FCI) D3W3P36A6GL08	Power	Brass	Combo D-Sub	-55 °C	125 °C	300 VDC	Thermoplastic	Solder	UL94 V-0		Black	30 A	Gold	Board Lock Grounding Indents	Through Hole Right Angle	Housing/Shell (M3)	0.76 Ám	30 Áin	1	Male Pins Plug	2 (DA A)	3W3	9.5 mm	0.374 in	3

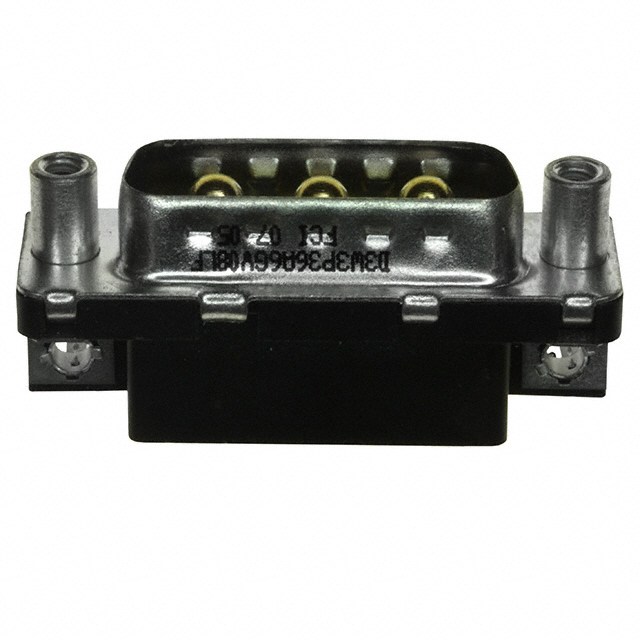

Amphenol ICC (FCI) D3W3P36A6GV08LF	Power	Brass	Combo D-Sub	-55 °C	125 °C	300 VDC	Thermoplastic	Solder	UL94 V-0	Nickel Plated Steel	Black	30 A	Gold	Board Lock Grounding Indents Mounting Brackets	Through Hole Right Angle	Female Screwlock (4-40) Mating Side	0.76 Ám	30 Áin	1	Male Pins Plug	2 (DA A)	3W3	9.5 mm	0.374 in	3
Amphenol ICC (FCI) D3W3P36B6GL08LF	Power	Brass	Combo D-Sub	-55 °C	125 °C	300 VDC	Thermoplastic	Solder	UL94 V-0		Black	30 A	Gold	Board Lock Grounding Indents Mounting Brackets	Through Hole Right Angle	Housing/Shell (M3)	0.76 Ám	30 Áin	1	Male Pins Plug	2 (DA A)	3W3	9.5 mm	0.374 in	3
