9775 Series
Manufacturer: Belden Inc.
Beta
⌘K

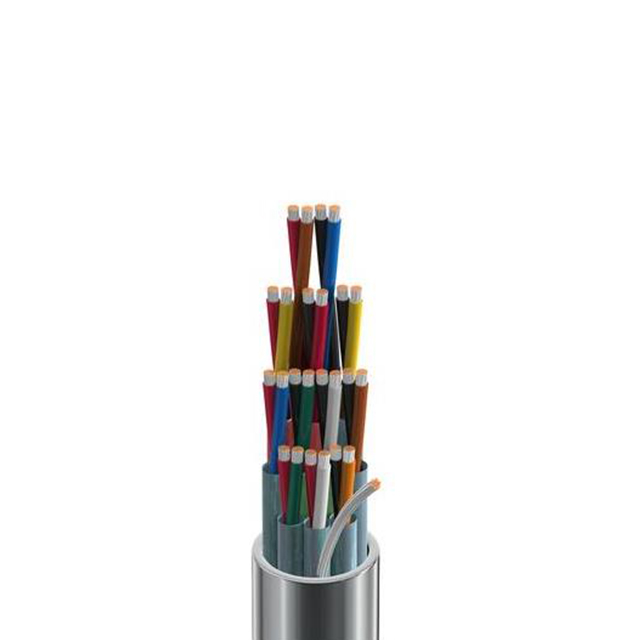

MULTI-PAIR 18COND 18AWG
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Shield Type | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Wire Gauge | Jacket Color | Features | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 30 AWG | 19 | Multi-Pair | Foil | Audio Control Instrumentation | 80 °C | -20 ░C | 18 | 0.655 " | 16.64 mm | UL Style 2919 | 18 AWG | Chrome | Drain Wire | Copper Tinned | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | 0.052 in | 1.321 mm | ||
Belden Inc. | 100 % | Aluminum | 30 AWG | 19 | Multi-Pair | Foil | Audio Control Instrumentation | 80 °C | -20 ░C | 18 | 0.655 " | 16.64 mm | UL Style 2919 | 18 AWG | Chrome | Drain Wire | Copper Tinned | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | 0.052 in | 1.321 mm | 152.4 m | 500 ft | ||
Belden Inc. | 100 % | Aluminum | 30 AWG | 19 | Multi-Pair | Foil | Audio Control Instrumentation | 80 °C | -20 ░C | 18 | 0.655 " | 16.64 mm | UL Style 2919 | 18 AWG | Chrome | Drain Wire | Copper Tinned | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | 0.052 in | 1.321 mm | 304.8 m | 1000 ft |
