R14332 Series

Catalog

TNC / STRAIGHT BULKHEAD JACK PAN

Part	Body Finish	Dielectric Material	Center Contact Plating	Body Material	Mating Cycles	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Frequency - Max [Max]	Mounting Feature	Cable Group	Contact Termination	Number of Ports	Connector Style	Impedance	Fastening Type	Shield Termination	Connector Type	Center Contact Material	Mounting Type	Housing Color	Ingress Protection	Cable Group
Radiall USA, Inc. R143324000W	Nickel	Polytetrafluoroethylene (PTFE)	Gold	Brass	500	335 V	-65 ░C	165 °C	0.18 dB	11 GHz	Bulkhead - Front Side Nut	187 188 316 RG-174	Solder	1	TNC	50 Ohms	Threaded	Clamp	Female Socket Jack	Beryllium Copper	Panel Mount	Silver

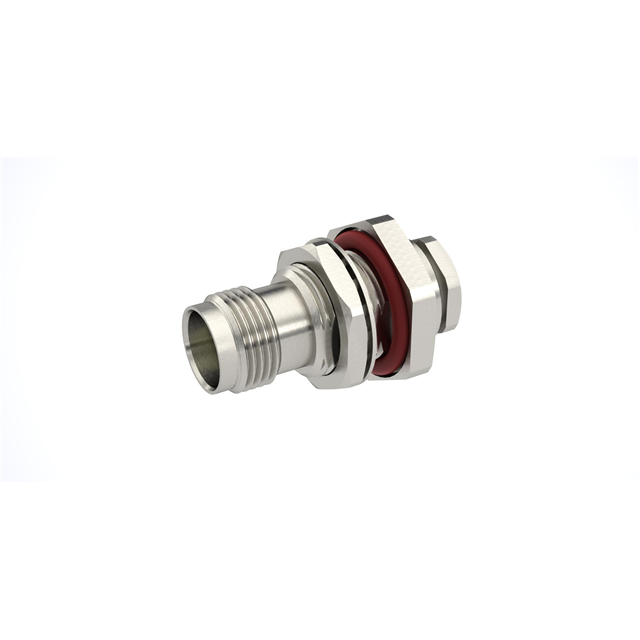

Radiall USA, Inc. R143324000	Nickel	Polytetrafluoroethylene (PTFE)	Gold	Brass	500	335 V	-65 ░C	165 °C	0.18 dB	11 GHz	Bulkhead - Front Side Nut	187 188 316 RG-174	Solder	1	TNC	50 Ohms	Threaded	Clamp	Female Socket Jack	Beryllium Copper	Panel Mount	Silver

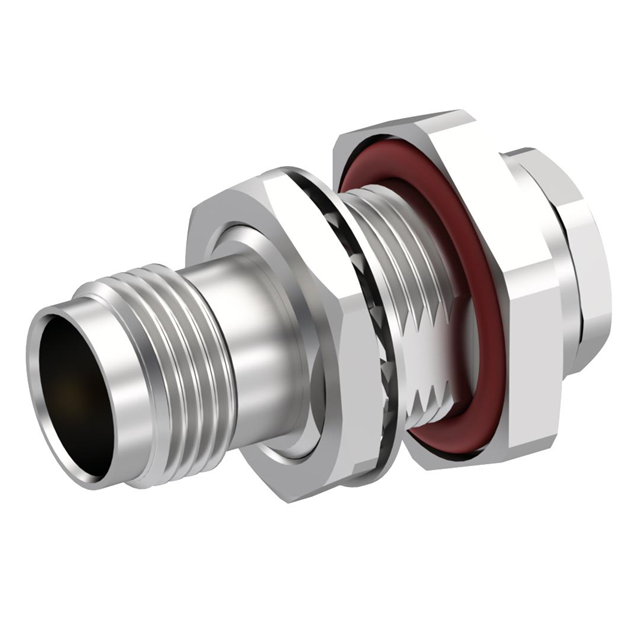

Radiall USA, Inc. R143324207	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	Brass	500	335 V	-65 ░C	165 °C	0.18 dB	11 GHz	Bulkhead - Front Side Nut	187 188 316 RG-179	Solder	1	TNC	50 Ohms	Threaded	Clamp	Female Socket Jack	Beryllium Copper	Panel Mount	Silver	IP67 - Dust Tight Waterproof

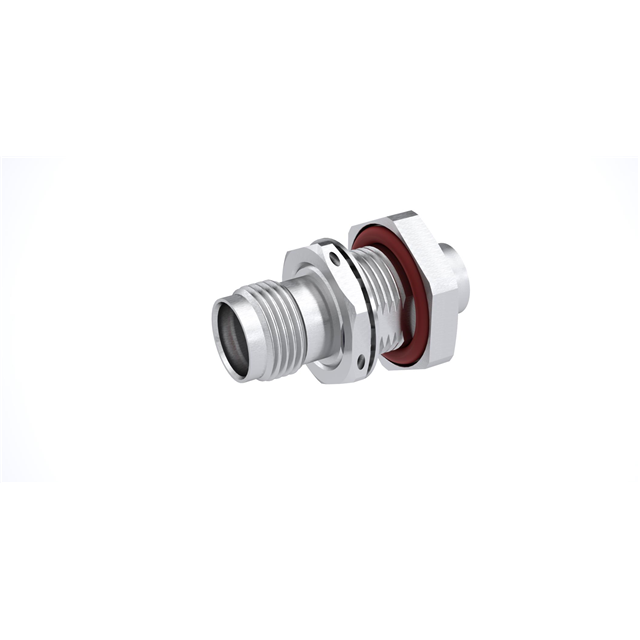

Radiall USA, Inc. R143322700		Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	500	500 V	-65 ░C	105 ░C	0.18 dB	18 GHz	Bulkhead - Front Side Nut	RG-401 (.250" Semi Rigid)	Solder	1	TNC	50 Ohms	Threaded	Solder	Female Socket Jack	Bronze	Panel Mount	Silver

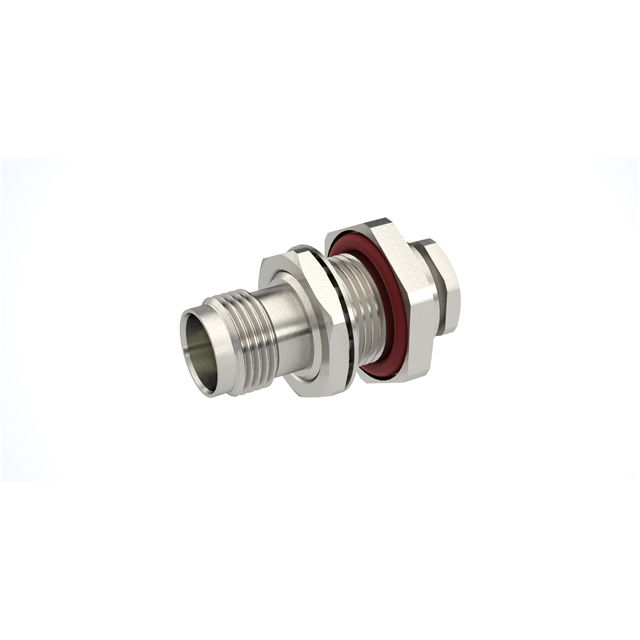

Radiall USA, Inc. R143323000	Nickel	Polytetrafluoroethylene (PTFE)	Gold	Brass	500	335 V	-65 ░C	165 °C	0.18 dB	11 GHz	Bulkhead - Front Side Nut	RG-178	Solder	1	TNC	50 Ohms	Threaded	Clamp	Female Socket Jack	Beryllium Copper	Panel Mount	Silver		196

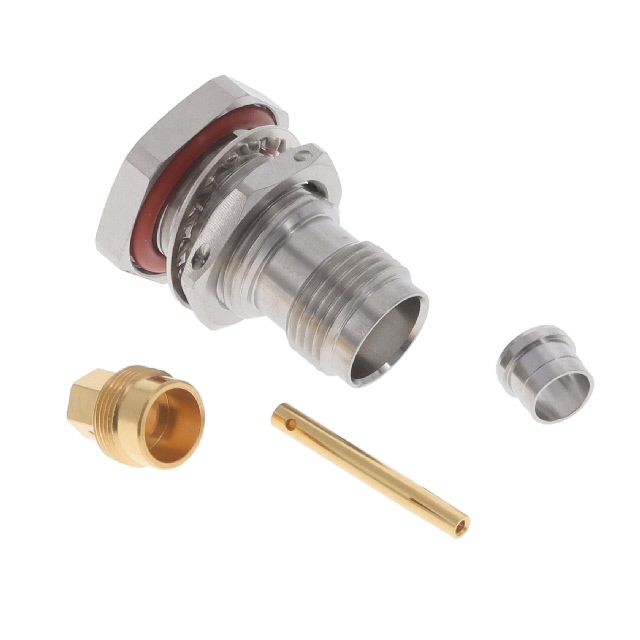

Radiall USA, Inc. R143321700		Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	500	1500 V	-65 ░C	105 ░C	0.18 dB	180 MHz	Bulkhead - Front Side Nut		Solder	1	TNC	50 Ohms	Threaded	Solder	Female Socket Jack	Bronze	Panel Mount	Silver

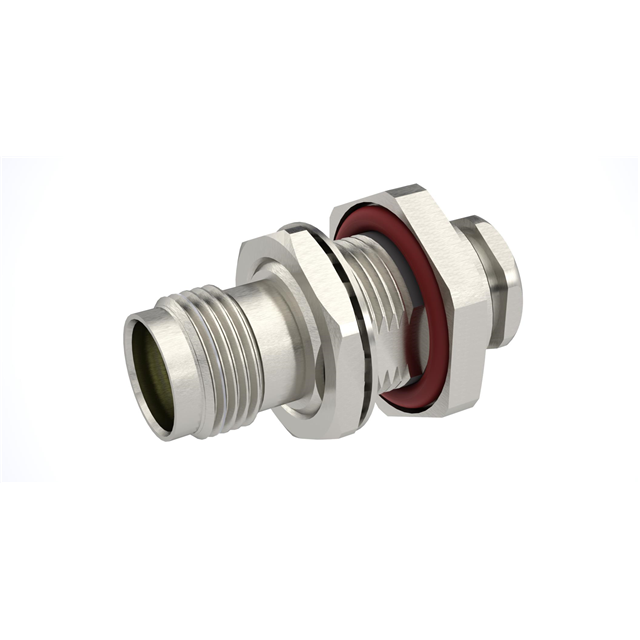

Radiall USA, Inc. R143325000	Nickel	Polytetrafluoroethylene (PTFE)	Gold	Brass	500	500 V	-65 ░C	165 °C	0.18 dB	11 GHz	Bulkhead - Front Side Nut	141 142 223 400 RG-58	Solder	1	TNC	50 Ohms	Threaded	Clamp	Female Socket Jack	Beryllium Copper	Panel Mount	Silver
