2041390 Series

Catalog

CONN FFC BOTTOM 51POS 0.3MM R/A

Part	Contact Finish	FFC, FCB Thickness	Voltage Rating	Contact Material	Cable End Type	Housing Color	Pitch [x]	Pitch [x]	Locking Feature	Height Above Board [z]	Height Above Board [z]	Current Rating (Amps)	Material Flammability Rating	Flat Flex Type	Connector/Contact Type	Termination	Actuator Color	Number of Positions	Actuator Material	Housing Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness

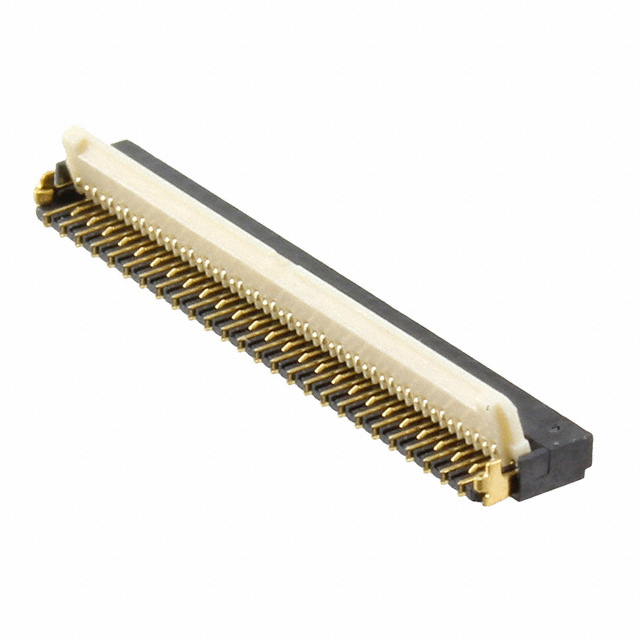

TE Connectivity Raychem Cable Protection 5-2041390-1	Gold	0.2 mm	30 VDC	Phosphor Bronze	Tapered	Black	0.012 in	0.3 mm	Flip Lock	1 mm	0.039 in	0.2 A	UL94 V-0	FFC FPC	Contacts Bottom	Solder	Natural	51	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	85 °C	-55 °C	Flash

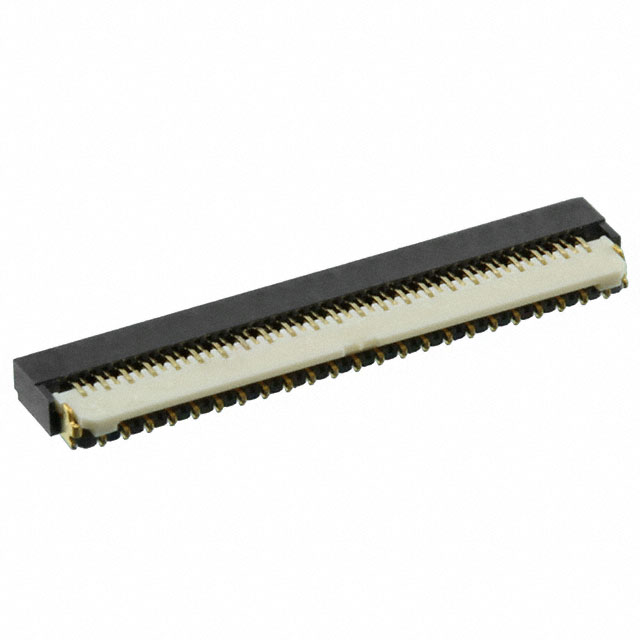

TE Connectivity Raychem Cable Protection 4-2041390-5	Gold	0.2 mm	30 VDC	Phosphor Bronze	Tapered	Black	0.012 in	0.3 mm	Flip Lock	1 mm	0.039 in	0.2 A	UL94 V-0	FFC FPC	Contacts Bottom	Solder	Natural	45	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	85 °C	-55 °C	Flash
