2367197 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

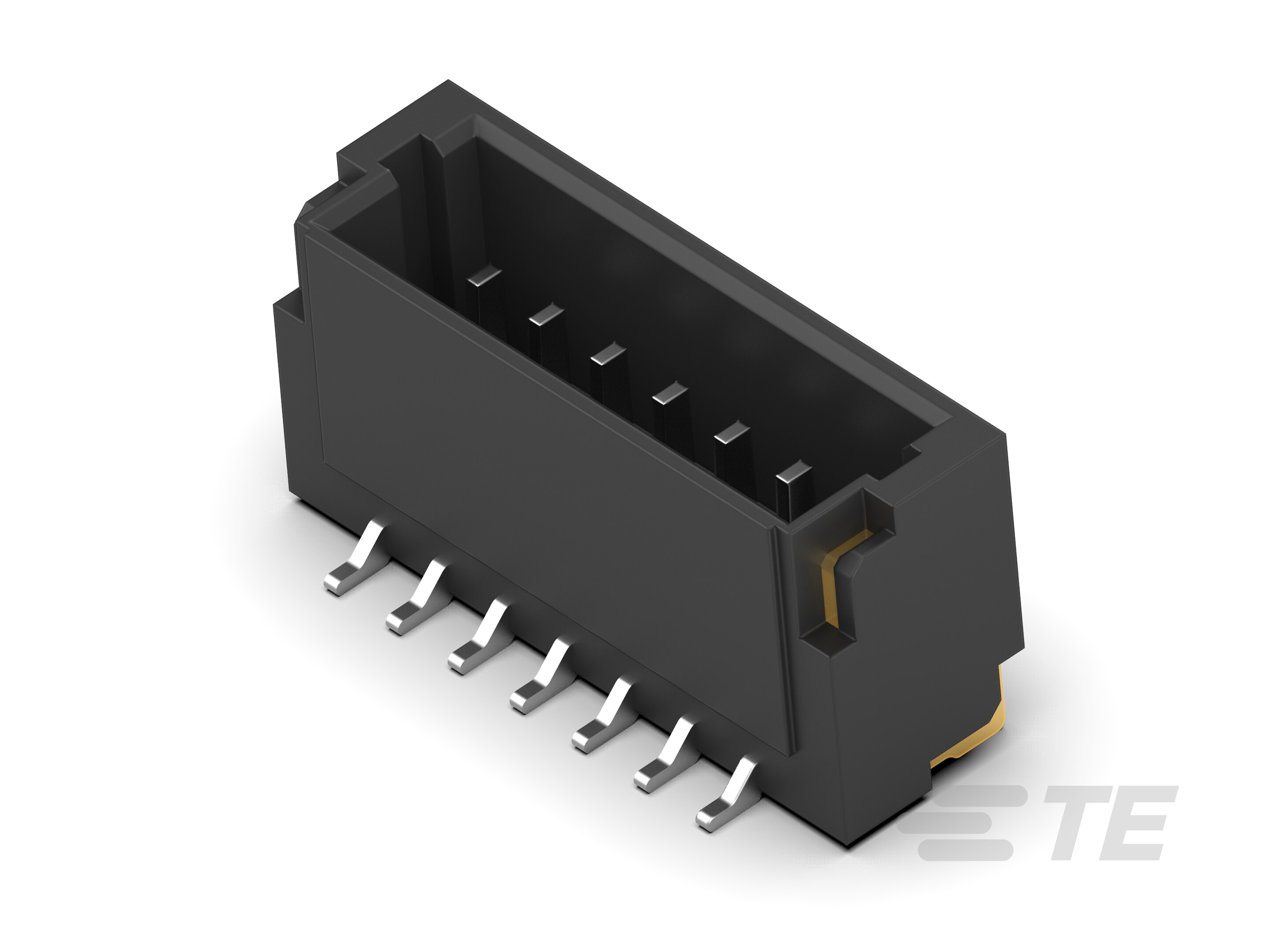

1MM VERTICAL HEADER WITH LATCH,

Part	Style	Contact Finish - Mating	Features	Insulation Material	Number of Positions	Number of Positions Loaded	Contact Type	Contact Material	Contact Shape	Termination	Shrouding	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish - Post	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Fastening Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Rows	Current Rating (Amps)	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
TE Connectivity Raychem Cable Protection 2-2367197-6	Board to Cable/Wire	Gold	Solder Retention	Plastic Halogen Free	6	All	Male Pin	Copper Alloy	Rectangular	Solder	Shrouded - 4 Wall	50 V	Flash	Flash	Gold	UL94 V-0	Black	4.3 mm	0.169 "	Locking Ramp	Surface Mount	-40 °C	105 ░C	0.039 in	1 mm	1	1 A	Header

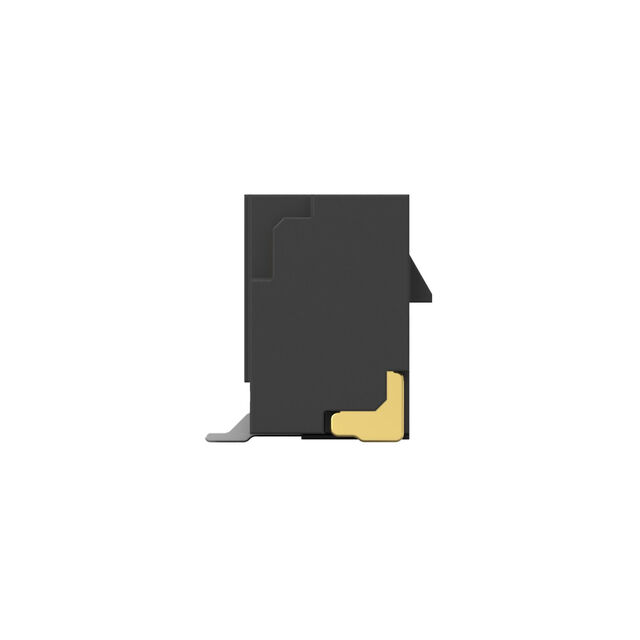

TE Connectivity Raychem Cable Protection 1-2367197-5	Board to Cable/Wire		Solder Retention	Plastic Halogen Free	15	All	Male Pin	Copper Alloy	Rectangular	Solder	Shrouded - 4 Wall	50 V			Tin	UL94 V-0	Black	4.3 mm	0.169 "	Locking Ramp	Surface Mount	-40 °C	105 ░C	0.039 in	1 mm	1	1 A	Header	0.127 µm	5 µin	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 1-2367197-2	Board to Cable/Wire		Solder Retention	Plastic Halogen Free	12	All	Male Pin	Copper Alloy	Rectangular	Solder	Shrouded - 4 Wall	50 V			Tin	UL94 V-0	Black	4.3 mm	0.169 "	Locking Ramp	Surface Mount	-40 °C	105 ░C	0.039 in	1 mm	1	1 A	Header	0.127 µm	5 µin	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 3-2367197-5	Board to Cable/Wire	Gold	Solder Retention	Plastic Halogen Free	15	All	Male Pin	Copper Alloy	Rectangular	Solder	Shrouded - 4 Wall	50 V	Flash	Flash	Gold	UL94 V-0	Black	4.3 mm	0.169 "	Locking Ramp	Surface Mount	-40 °C	105 ░C	0.039 in	1 mm	1	1 A	Header
TE Connectivity Raychem Cable Protection 2367197-5	Board to Cable/Wire		Solder Retention	Plastic Halogen Free		All	Male Pin	Copper Alloy	Rectangular	Solder	Shrouded - 4 Wall	50 V			Tin	UL94 V-0	Black	4.3 mm	0.169 "	Locking Ramp	Surface Mount	-40 °C	105 ░C	0.039 in	1 mm	1	1 A	Header	0.127 µm	5 µin	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 3-2367197-3	Board to Cable/Wire	Gold	Solder Retention	Plastic Halogen Free	13	All	Male Pin	Copper Alloy	Rectangular	Solder	Shrouded - 4 Wall	50 V	Flash	Flash	Gold	UL94 V-0	Black	4.3 mm	0.169 "	Locking Ramp	Surface Mount	-40 °C	105 ░C	0.039 in	1 mm	1	1 A	Header
TE Connectivity Raychem Cable Protection 2367197-7	Board to Cable/Wire		Solder Retention	Plastic Halogen Free	7	All	Male Pin	Copper Alloy	Rectangular	Solder	Shrouded - 4 Wall	50 V			Tin	UL94 V-0	Black	4.3 mm	0.169 "	Locking Ramp	Surface Mount	-40 °C	105 ░C	0.039 in	1 mm	1	1 A	Header	0.127 µm	5 µin	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 5-2367197-5	Board to Cable/Wire	Gold	Solder Retention	Plastic Halogen Free	15	All	Male Pin	Copper Alloy	Rectangular	Solder	Shrouded - 4 Wall	50 V	Flash		Gold	UL94 V-0	Black	4.3 mm	0.169 "	Locking Ramp	Surface Mount	-40 °C	105 ░C	0.039 in	1 mm	1	1 A	Header	0.076 µm	3 µin
TE Connectivity Raychem Cable Protection 4-2367197-5	Board to Cable/Wire	Gold	Solder Retention	Plastic Halogen Free		All	Male Pin	Copper Alloy	Rectangular	Solder	Shrouded - 4 Wall	50 V	Flash		Gold	UL94 V-0	Black	4.3 mm	0.169 "	Locking Ramp	Surface Mount	-40 °C	105 ░C	0.039 in	1 mm	1	1 A	Header	0.076 µm	3 µin
TE Connectivity Raychem Cable Protection 5-2367197-2	Board to Cable/Wire	Gold	Solder Retention	Plastic Halogen Free	12	All	Male Pin	Copper Alloy	Rectangular	Solder	Shrouded - 4 Wall	50 V	Flash		Gold	UL94 V-0	Black	4.3 mm	0.169 "	Locking Ramp	Surface Mount	-40 °C	105 ░C	0.039 in	1 mm	1	1 A	Header	0.076 µm	3 µin
