1735481 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

0.8FH,R17H.5,040,30/SN,TU,SC

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Mated Stacking Heights	Features	Number of Positions	Connector Type	Mounting Type	Number of Rows [custom]
TE Connectivity AMP Connectors 2-1735481-1	Gold	30 Áin	0.76 Ám	15.75 mm	0.62 in	0.8 mm	0.031 in	17 mm	Board Guide	40	Receptacle Outer Shroud Contacts	Surface Mount	2

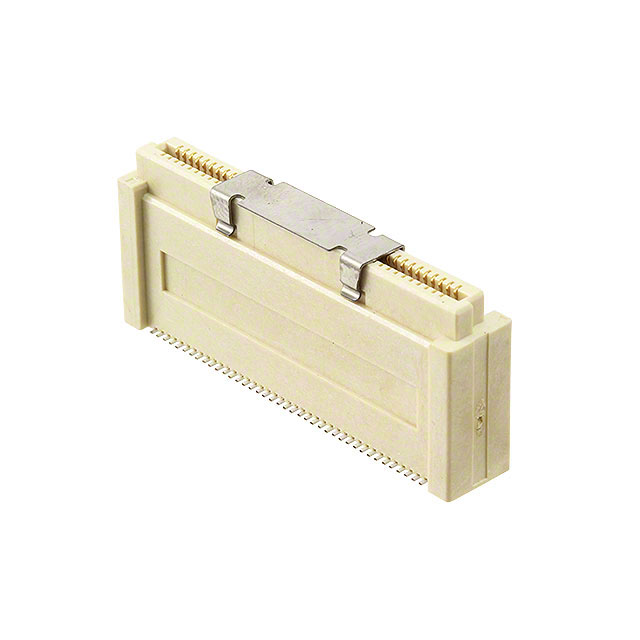

TE Connectivity AMP Connectors 1735481-3	Gold	8 µin	0.203 çm	15.75 mm	0.62 in	0.8 mm	0.031 in	17 mm	Board Guide	80	Receptacle Outer Shroud Contacts	Surface Mount	2

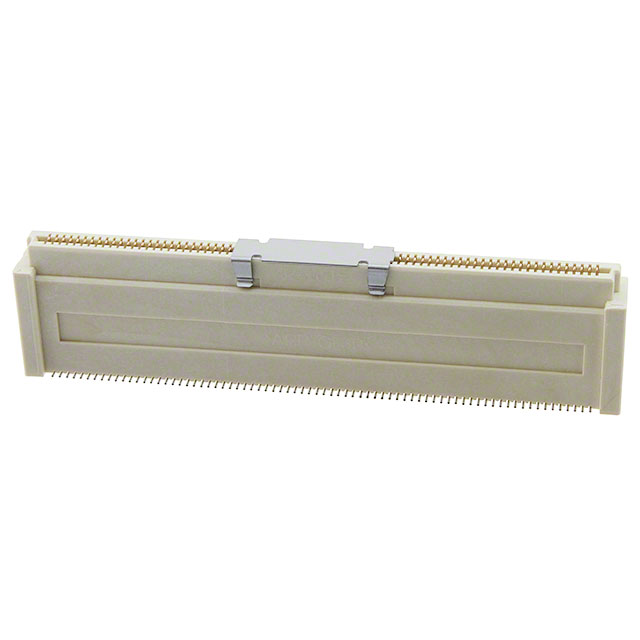

TE Connectivity AMP Connectors 2-1735481-7	Gold	30 Áin	0.76 Ám	15.75 mm	0.62 in	0.8 mm	0.031 in	17 mm	Board Guide	150	Receptacle Outer Shroud Contacts	Surface Mount	2
TE Connectivity AMP Connectors 2-1735481-5	Gold	30 Áin	0.76 Ám	15.75 mm	0.62 in	0.8 mm	0.031 in	17 mm	Board Guide	120	Receptacle Outer Shroud Contacts	Surface Mount	2
TE Connectivity AMP Connectors 2-1735481-3	Gold	30 Áin	0.76 Ám	15.75 mm	0.62 in	0.8 mm	0.031 in	17 mm	Board Guide	80	Receptacle Outer Shroud Contacts	Surface Mount	2
TE Connectivity AMP Connectors 2-1735481-8	Gold	30 Áin	0.76 Ám	15.75 mm	0.62 in	0.8 mm	0.031 in	17 mm	Board Guide	160	Receptacle Outer Shroud Contacts	Surface Mount	2
TE Connectivity AMP Connectors 2-1735481-4	Gold	30 Áin	0.76 Ám	15.75 mm	0.62 in	0.8 mm	0.031 in	17 mm	Board Guide	100	Receptacle Outer Shroud Contacts	Surface Mount	2

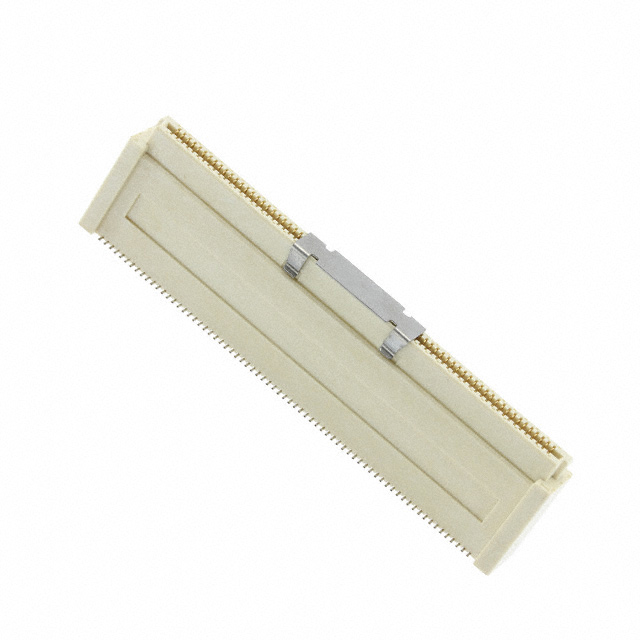

TE Connectivity AMP Connectors 1735481-6	Gold	8 µin	0.203 çm	15.75 mm	0.62 in	0.8 mm	0.031 in	17 mm	Board Guide	140	Receptacle Outer Shroud Contacts	Surface Mount	2

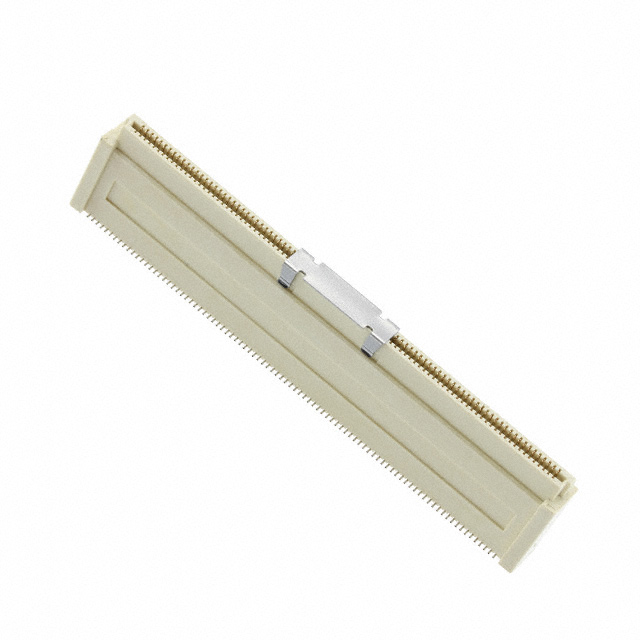

TE Connectivity AMP Connectors 1735481-9	Gold	8 µin	0.203 çm	15.75 mm	0.62 in	0.8 mm	0.031 in	17 mm	Board Guide	180	Receptacle Outer Shroud Contacts	Surface Mount	2
