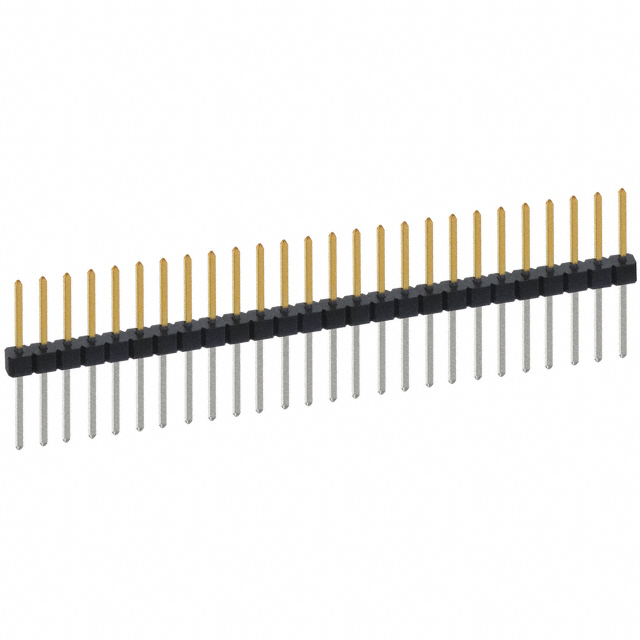

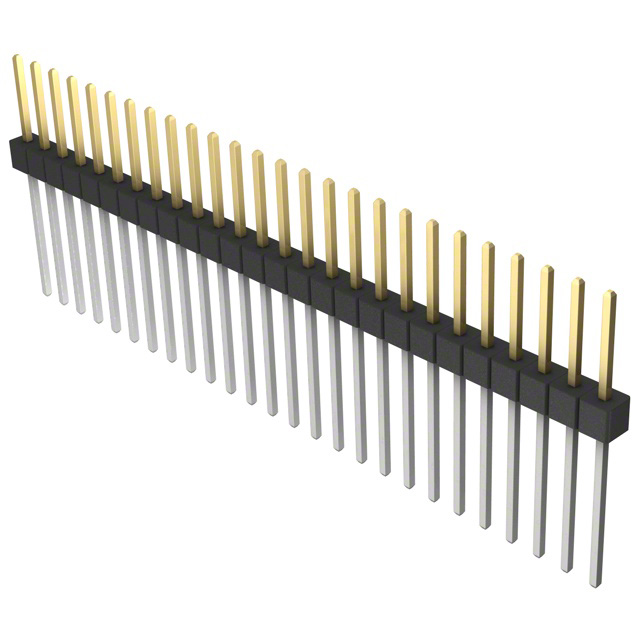

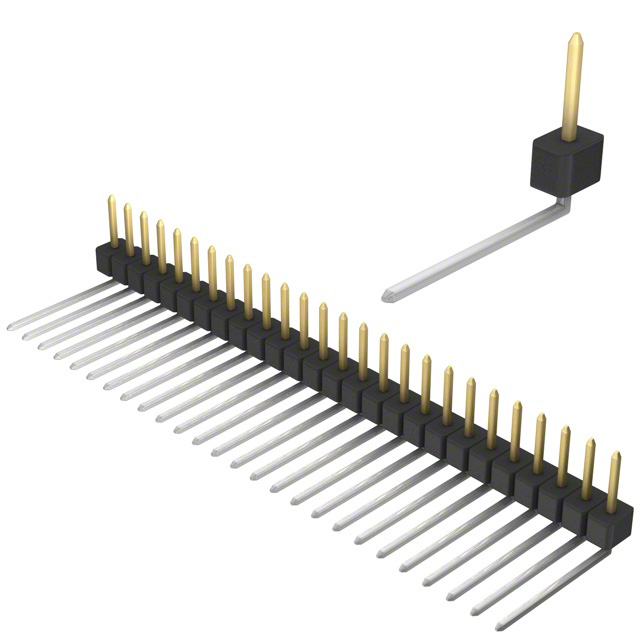

PBC26 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 52POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Insulation Color	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Connector Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Mounting Type	Contact Length - Mating	Contact Length - Mating	Style	Contact Finish - Mating	Termination	Contact Shape	Fastening Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Material	Number of Positions Loaded	Number of Positions	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Number of Rows
Sullins Connector Solutions PBC26DBBN	2.54 µm	100 µin	Unshrouded	Black	5.08 mm	0.2 "	Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	Male Pin	Header Breakaway	3 A	0.1 in	2.54 mm	2	0.1 "	2.54 mm	-65 ░C	125 °C	Tin	Right Angle Through Hole	0.23 in	5.84 mm	Board to Board Cable	Gold	Solder	Square	Push-Pull	UL94 V-0	6.1 mm	0.24 in	Phosphor Bronze	All	52
Sullins Connector Solutions PBC26DADN	2.54 µm	100 µin	Unshrouded	Black			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	Male Pin	Header Breakaway	3 A	0.1 in	2.54 mm	2	0.1 "	2.54 mm	-65 ░C	125 °C	Tin	Through Hole	0.23 in	5.84 mm	Board to Board Cable	Gold	Solder	Square	Push-Pull	UL94 V-0			Phosphor Bronze	All	52	19.05 mm	0.75 in	0.1 in	2.54 mm	10.67 mm	0.42 in
Sullins Connector Solutions PBC26DGAN	2.54 µm	100 µin	Unshrouded	Black			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	Male Pin	Header Breakaway	3 A	0.1 in	2.54 mm	2	0.1 "	2.54 mm	-65 ░C	125 °C	Tin	Right Angle Through Hole	0.318 in	8.08 mm	Board to Board Cable	Gold	Solder	Square	Push-Pull	UL94 V-0	6.1 mm	0.24 in	Phosphor Bronze	All	52					2.54 mm	0.1 in
Sullins Connector Solutions PBC26DAEN	2.54 µm	100 µin	Unshrouded	Black			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	Male Pin	Header Breakaway	3 A	0.1 in	2.54 mm	2	0.1 "	2.54 mm	-65 ░C	125 °C	Tin	Through Hole	0.23 in	5.84 mm	Board to Board Cable	Gold	Solder	Square	Push-Pull	UL94 V-0			Phosphor Bronze	All	52			0.1 in	2.54 mm	13.21 mm	0.52 in	0.85 in	21.59 mm
Sullins Connector Solutions PBC26SAGN	2.54 µm	100 µin	Unshrouded	Black			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	Male Pin	Header Breakaway	3 A				0.1 "	2.54 mm	-65 ░C	125 °C	Tin	Through Hole	0.23 in	5.84 mm	Board to Board Cable	Gold	Solder	Square	Push-Pull	UL94 V-0			Phosphor Bronze	All	26			0.1 in	2.54 mm	18.29 mm	0.72 "	1.05 in	26.67 mm	1
Sullins Connector Solutions PBC26SFDN	2.54 µm	100 µin	Unshrouded	Black			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	Male Pin	Header Breakaway	3 A				0.1 "	2.54 mm	-65 ░C	125 °C	Tin	Through Hole	0.318 in	8.08 mm	Board to Board Cable	Gold	Solder	Square	Push-Pull	UL94 V-0			Phosphor Bronze	All	26			0.1 in	2.54 mm	10.67 mm	0.42 in	0.838 in	21.29 mm	1
Sullins Connector Solutions PBC26DFAN	2.54 µm	100 µin	Unshrouded	Black			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	Male Pin	Header Breakaway	3 A	0.1 in	2.54 mm	2	0.1 "	2.54 mm	-65 ░C	125 °C	Tin	Through Hole	0.318 in	8.08 mm	Board to Board Cable	Gold	Solder	Square	Push-Pull	UL94 V-0			Phosphor Bronze	All	52	13.67 mm	0.538 in	0.1 in	2.54 mm	3.05 mm	0.12 in
Sullins Connector Solutions PBC26SBEN	2.54 µm	100 µin	Unshrouded	Black			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	Male Pin	Header Breakaway	3 A				0.1 "	2.54 mm	-65 ░C	125 °C	Tin	Right Angle Through Hole	0.23 in	5.84 mm	Board to Board Cable	Gold	Solder	Square	Push-Pull	UL94 V-0			Phosphor Bronze	All	26			0.14 in	3.56 mm	12.7 mm	0.5 "			1
Sullins Connector Solutions PBC26SFEN	2.54 µm	100 µin	Unshrouded	Black			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	Male Pin	Header Breakaway	3 A				0.1 "	2.54 mm	-65 ░C	125 °C	Tin	Through Hole	0.318 in	8.08 mm	Board to Board Cable	Gold	Solder	Square	Push-Pull	UL94 V-0			Phosphor Bronze	All	26			0.1 in	2.54 mm	13.21 mm	0.52 in	0.938 in	23.83 mm	1
Sullins Connector Solutions PBC26SFBN	2.54 µm	100 µin	Unshrouded	Black			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	Male Pin	Header Breakaway	3 A				0.1 "	2.54 mm	-65 ░C	125 °C	Tin	Through Hole	0.318 in	8.08 mm	Board to Board Cable	Gold	Solder	Square	Push-Pull	UL94 V-0			Phosphor Bronze	All	26			0.1 in	2.54 mm	5.58 mm	0.22 in	0.638 in	16.21 mm	1
