BQ24260 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC BATT CHG LI-ION 1CELL 36DSBGA
| Part | Mounting Type | Package / Case | Battery Chemistry | Fault Protection | Voltage - Supply (Max) [Max] | Programmable Features | Current - Charging | Number of Cells | Battery Pack Voltage | Supplier Device Package | Charge Current - Max [Max] | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Type | Supplied Contents | Utilized IC / Part | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 36-UFBGA DSBGA | Lithium Ion | Over Temperature Over Voltage | 10 V | Current | Constant - Programmable | 1 | 3.6 V | 36-DSBGA (2.63x2.46) | 3 A | I2C | 85 °C | -40 °C | ||||

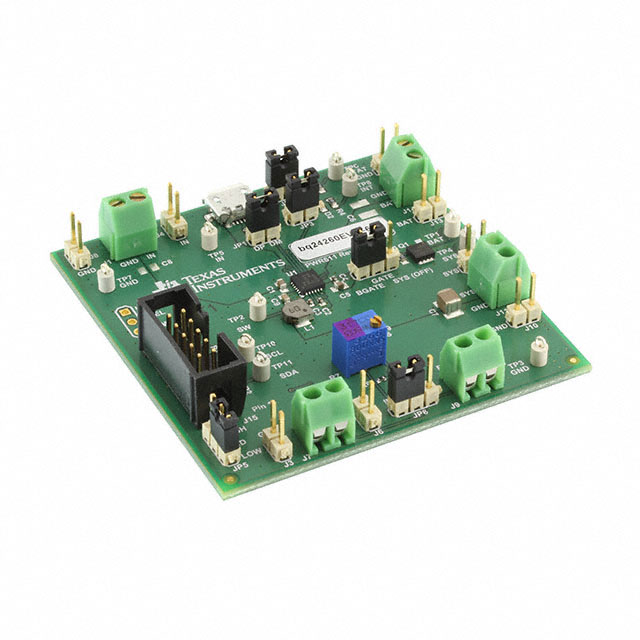

 Texas Instruments | Power Management | Board(s) | BQ24260 | Battery Charger | ||||||||||||||
Texas Instruments | Surface Mount | 36-UFBGA DSBGA | Lithium Ion | Over Temperature Over Voltage | 10 V | Current | Constant - Programmable | 1 | 3.6 V | 36-DSBGA (2.63x2.46) | 3 A | I2C | 85 °C | -40 °C | ||||
 Texas Instruments | Surface Mount | 24-VFQFN Exposed Pad | Lithium Ion | Over Temperature Over Voltage | 10 V | Current | Constant - Programmable | 1 | 3.5 V | 24-VQFN (4x4) | 3 A | I2C | 85 °C | -40 °C | ||||
Texas Instruments | Surface Mount | 36-UFBGA DSBGA | Lithium Ion | Over Temperature Over Voltage | 10 V | Current | Constant - Programmable | 1 | 3.5 V | 36-DSBGA (2.63x2.46) | 3 A | I2C | 85 °C | -40 °C |
