S07B-XAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

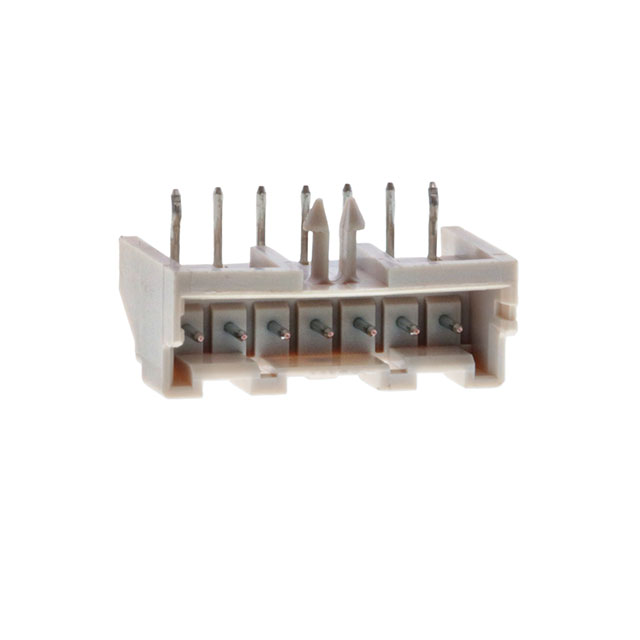

CONN HEADER R/A 7POS 2.5MM
| Part | Number of Positions | Style | Current Rating (Amps) | Contact Type | Contact Finish - Post | Contact Shape | Number of Rows | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height [z] | Insulation Height | Contact Material | Fastening Type | Insulation Color | Material Flammability Rating | Connector Type | Termination | Voltage Rating | Insulation Material | Shrouding | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | 7 | Board to Cable/Wire | 3 A | Male Pin | Tin | Circular | 1 | 2.5 mm | 0.098 in | 85 °C | -25 °C | All | 0.126 " | 3.2 mm | 0.299 " | 7.6 mm | Copper Alloy | Locking Ramp | Natural | UL94 V-0 | Header | Solder | 250 V | Glass Filled Nylon 6/6 Polyamide (PA66) | Shrouded - 4 Wall | Right Angle Through Hole | |
 JST Sales America Inc. | 7 | Board to Cable/Wire | 3 A | Male Pin | Tin | Circular | 1 | 2.5 mm | 0.098 in | 85 °C | -25 °C | All | 0.126 " | 3.2 mm | 0.299 " | 7.6 mm | Copper Alloy | Locking Ramp | Natural | UL94 V-0 | Header | Press-Fit Solder | 250 V | Glass Filled Nylon 6/6 Polyamide (PA66) | Shrouded - 4 Wall | Right Angle Through Hole | Board Lock |
