5145.0885 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Ingress Protection	Connector Type	Material Flammability Rating	Current Rating - Circuit Breaker	Switch Features	Approval Agency	Accomodates a Fuse	Current Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet	Mounting Type	Filter Type	Connector Style	Current Rating - Filter	Termination	Termination	Termination

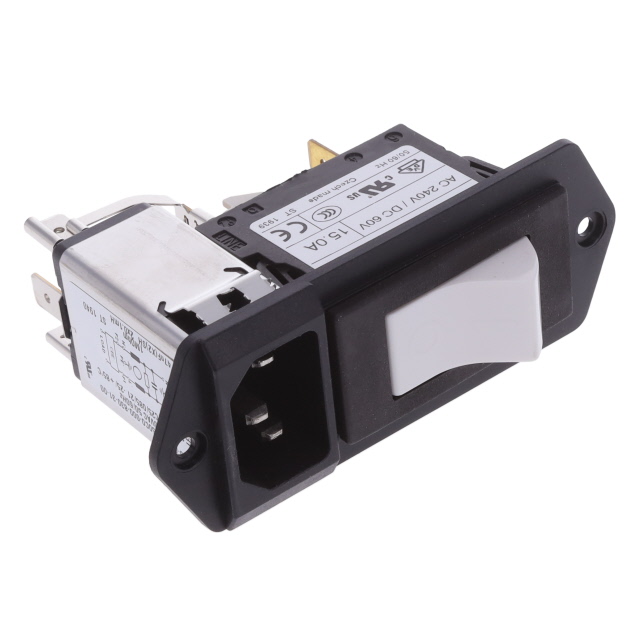

SCHURTER Inc. 5145.0885.831	IP40	Receptacle Male Blades - Module	UL94 V-0	15 A	Circuit Breaker Switch On-Off	cULus ENEC		10 A	29 mm	72 mm	250 VAC	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	15 A	6.3 mm	Quick Connect	0.25 "
SCHURTER Inc. 5145.0885.810	IP40	Receptacle Male Blades - Module	UL94 V-0	15 A	Circuit Breaker Switch On-Off	cULus ENEC		10 A	29 mm	72 mm	250 VAC	Flange Panel Mount	Filtered (EMI RFI) - Commercial	IEC 320-C14	15 A	6.3 mm	Quick Connect	0.25 "
