BKA14 Series

Catalog

CONN RCPT HSG MALE 9POS INLINE

Part	Note	Includes Total Count	Includes	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Insert Material	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Mounting Type	Orientation	Material Flammability Rating	Features	Shell Finish	Fastening Type	Number of Positions	Position Types	Connector Type	Shell Material	Type	Housing Color	Shell Size - Insert
TE Intercontec BKA145N00420200000	Contacts Not Included	3 pcs	Backshell Cable Clamp Connector	-20 °C	130 °C	Circular	Nylon 6/6 PA66 Polyamide	Dust Tight Water Resistant Waterproof	IP66 IP67	Shielded	Free Hanging (In-Line)	Keyed	UL94 V-0	Backshell Cable Clamp	Nickel	Push-Twist	9	PE Power	Receptacle Housing	Zinc Die Cast	For Male Pins	Silver	M23-9
TE Intercontec BKA145N00420100000	Contacts Not Included	3 pcs	Backshell Cable Clamp Connector	-20 °C	130 °C	Circular	Nylon 6/6 PA66 Polyamide	Dust Tight Water Resistant Waterproof	IP66 IP67	Shielded	Free Hanging (In-Line)	Keyed	UL94 V-0	Backshell Cable Clamp	Nickel	Push-Twist	9	PE Power	Receptacle Housing	Zinc Die Cast	For Male Pins	Silver	M23-9
TE Intercontec BKA145N00480100000	Contacts Not Included	3 pcs	Backshell Cable Clamp Connector	-20 °C	130 °C	Circular	Nylon 6/6 PA66 Polyamide	Dust Tight Water Resistant Waterproof	IP66 IP67	Shielded	Free Hanging (In-Line)	Keyed	UL94 V-0	Backshell Cable Clamp	Nickel	Push-Twist	9	PE Power	Receptacle Housing	Zinc Die Cast	For Male Pins	Silver	M23-9

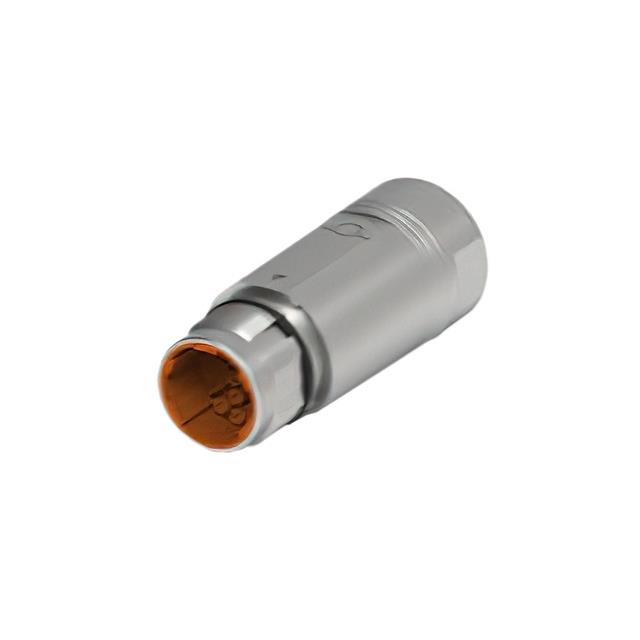

TE Intercontec BKA145N00590200000	Contacts Not Included	3 pcs	Backshell Cable Clamp Connector	-20 °C	130 °C	Circular	Nylon 6/6 PA66 Polyamide	Dust Tight Water Resistant Waterproof	IP66 IP67	Shielded	Free Hanging (In-Line)	Keyed	UL94 V-0	Backshell Cable Clamp	Nickel	Push-Twist	9	PE Power	Receptacle Housing	Zinc Die Cast	For Male Pins	Silver	M23-9
