EEU-HD Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 470UF 20% 35V RADIAL TH

Part	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Polarization	Ripple Current @ Low Frequency	Voltage - Rated	Ripple Current @ High Frequency	Mounting Type	Package / Case	Lifetime @ Temp.	Capacitance	Applications	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)

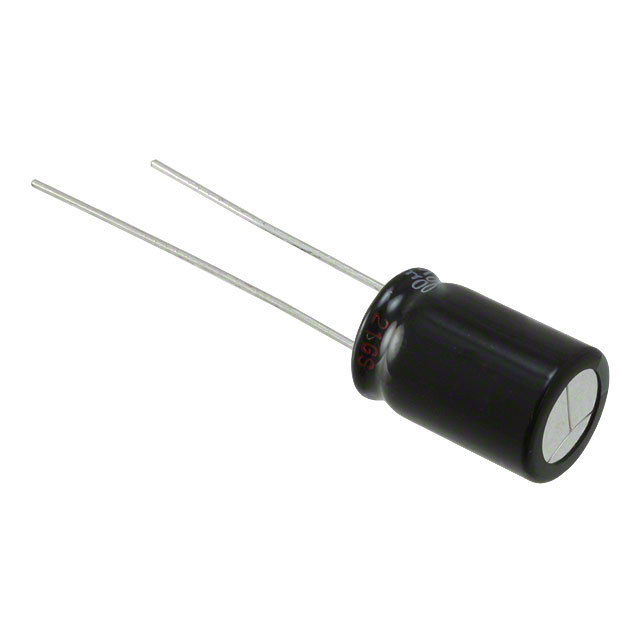

Panasonic Industrial Automation Sales EEU-HD1V471	5 mm	0.197 in	105 ░C	-55 °C	10 mm	0.394 in	0.689 in	17.5 mm	Polar	460 mA	35 V	690 mA	Through Hole	Radial Can	2000 Hrs	470 µF	General Purpose	20 %

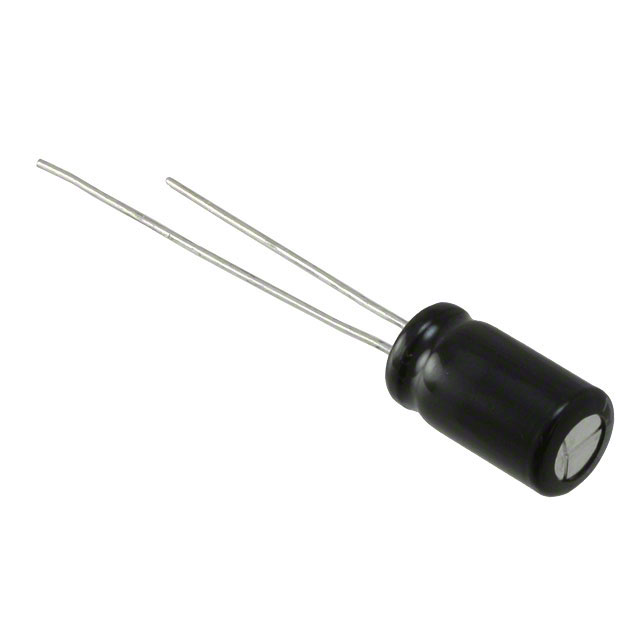

Panasonic Industrial Automation Sales EEU-HD1H680	2.5 mm	0.098 in	105 ░C	-55 °C	6.3 mm	0.248 in			Polar	110 mA	50 VDC	165 mA	Through Hole	Radial Can	1000 Hrs	68 µF	General Purpose	20 %	12.7 mm	0.5 in

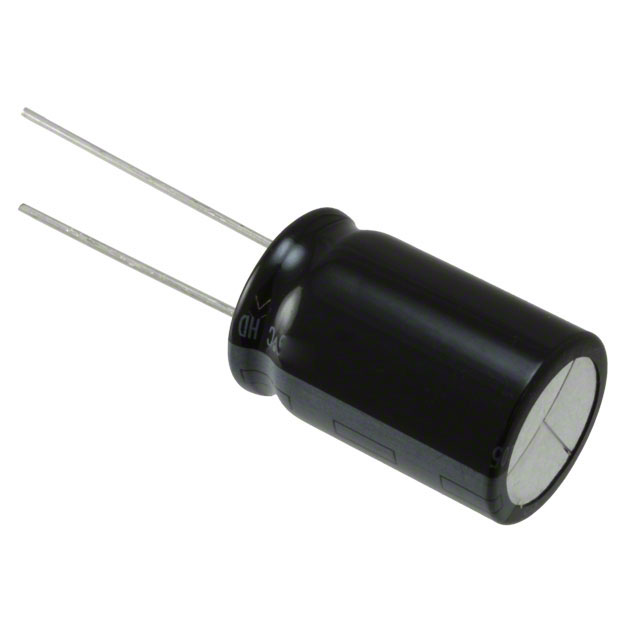

Panasonic Industrial Automation Sales EEU-HD1H681S	7.5 mm	0.295 in	105 ░C	-55 °C	16 mm	0.63 in			Polar	650 mA	50 VDC	975 mA	Through Hole	Radial Can	2000 Hrs	680 µF	General Purpose	20 %	16.5 mm	16.51 mm
Panasonic Industrial Automation Sales EEU-HD1E102B	5 mm	0.197 in	105 ░C	-55 °C	10 mm	0.394 in	0.689 in	17.5 mm	Polar	680 mA	25 VDC	782 mA	Through Hole	Radial Can	2000 Hrs	1000 µF	General Purpose	20 %
Panasonic Industrial Automation Sales EEU-HD1C221B	5 mm	0.197 in	105 ░C	-55 °C	6.3 mm	0.248 in			Polar	180 mA	16 V	270 mA	Through Hole	Radial Can	1000 Hrs	220 µF	General Purpose	20 %	12.7 mm	0.5 in

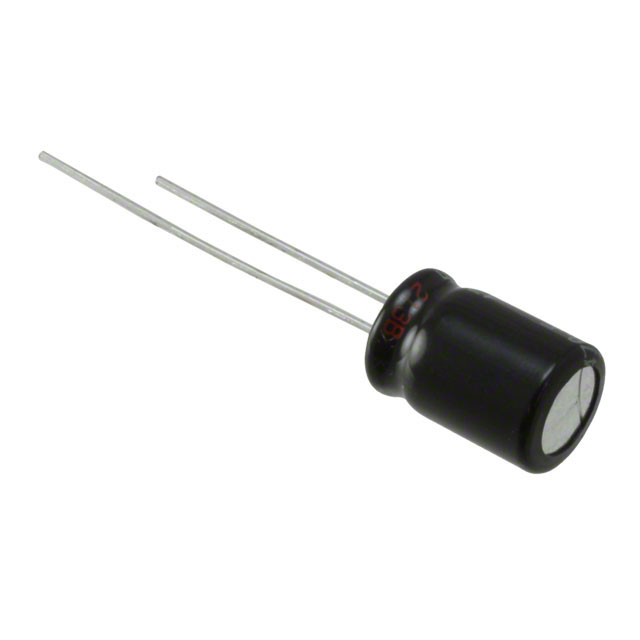

Panasonic Industrial Automation Sales EEU-HD1E331B	5 mm	0.197 in	105 ░C	-55 °C	8 mm	0.315 "			Polar	310 mA	25 VDC	465 mA	Through Hole	Radial Can	1000 Hrs	330 µF	General Purpose	20 %	13 mm	0.512 "
Panasonic Industrial Automation Sales EEU-HD1A102	5 mm	0.197 in	105 ░C	-55 °C	10 mm	0.394 in	0.551 "		Polar	460 mA	10 V	529 mA	Through Hole	Radial Can	2000 Hrs	1000 µF	General Purpose	20 %			14 mm
Panasonic Industrial Automation Sales EEU-HD1C471B	5 mm	0.197 in	105 ░C	-55 °C	8 mm	0.315 "			Polar	310 mA	16 V	465 mA	Through Hole	Radial Can	1000 Hrs	470 µF	General Purpose	20 %	13 mm	0.512 "
Panasonic Industrial Automation Sales EEU-HD1H471B	5 mm	0.197 in	105 ░C	-55 °C	10 mm	0.394 in			Polar	530 mA	50 VDC	795 mA	Through Hole	Radial Can	2000 Hrs	470 µF	General Purpose	20 %	22 mm	0.866 in
Panasonic Industrial Automation Sales EEU-HD1A153	7.5 mm	0.295 in	105 ░C	-55 °C	16 mm	0.63 in			Polar		10 V	2.507 A	Through Hole	Radial Can	2000 Hrs		General Purpose	20 %
