TPD6F002 Series
Manufacturer: Texas Instruments
Beta
⌘K

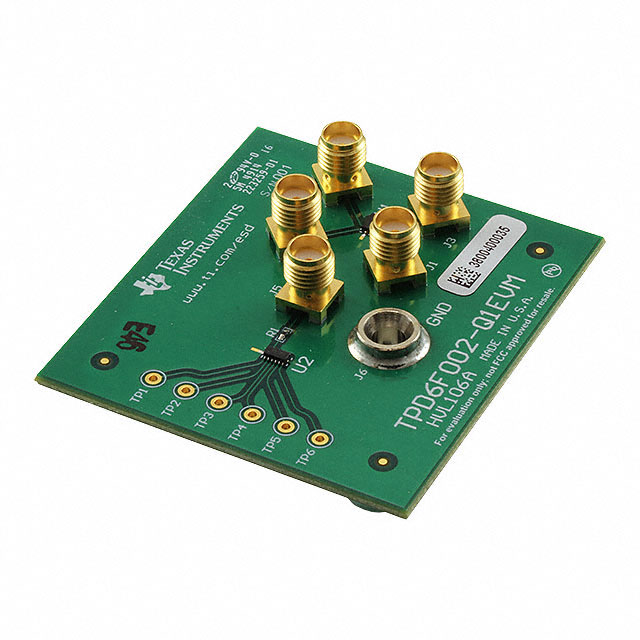

EVALUATION MODULE TPD6F002-Q1
| Part | Utilized IC / Part | Supplied Contents | Function | Contents | Embedded | Attenuation Value | Operating Temperature [Max] | Operating Temperature [Min] | Resistance - Channel (Ohms) | Applications | Height [z] | Height [z] | Type | Technology | Package / Case | Number of Channels [custom] | Filter Order | ESD Protection | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Values | Center / Cutoff Frequency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | TPD6F002-Q1 | Board(s) | Electrostatic Discharge (ESD) | Board(s) | |||||||||||||||||||||

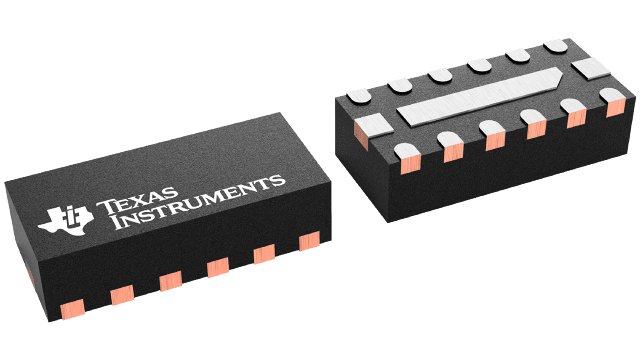

 Texas Instruments | 57 dB | 85 °C | -40 °C | 100 Ohms | Data Lines for Mobile Devices | 0.031 " | 0.79 mm | Low Pass | RC (Pi) | 12-WFDFN Exposed Pad | 6 | 2nd | 0.053 in | 0.118 in | 3 mm | 1.35 mm | 17 pF 100 Ohms | 100 MHz | Surface Mount |
